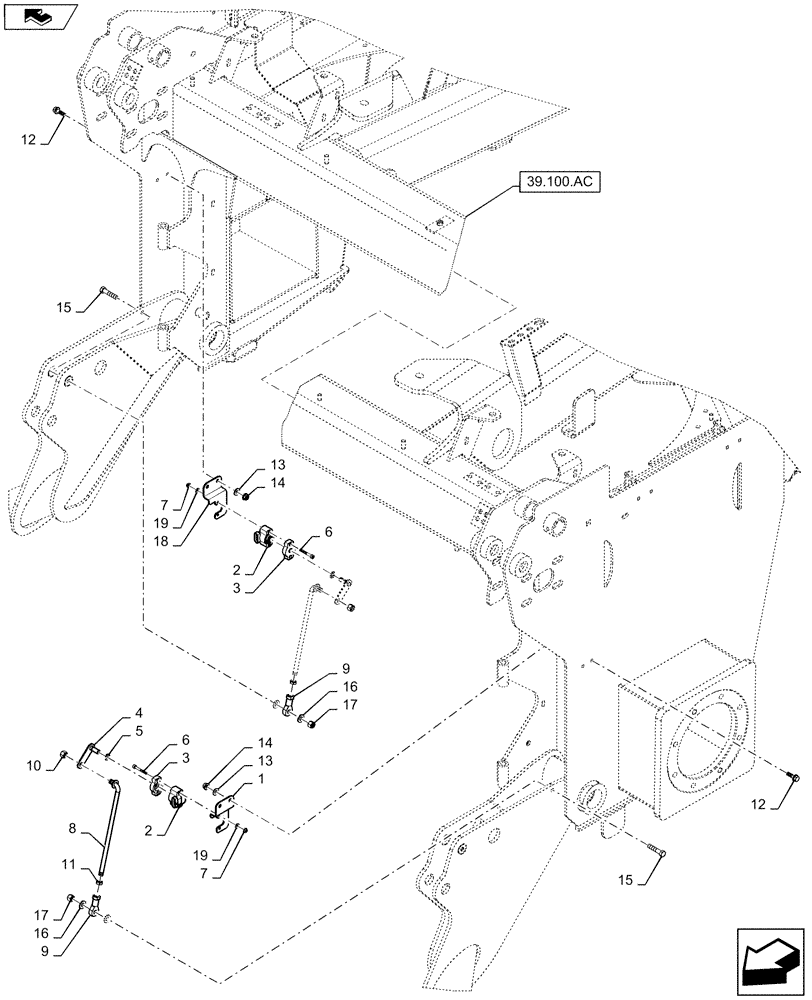

Запчасти Case IH WD1903 (55.634.AD) - HEADER HEIGHT MODE SWITCH, EHHC POSITION (55) - ELECTRICAL SYSTEMS

1

47798871

MOUNT

EHHC Sensor

1шт.

2

87330286

SENSOR

Position/Height

2шт.

3

87676896

SENSOR

Shaft Clip Cover, EHHC

2шт.

4

84552849

LEVER

Lever Arm

2шт.

5

86000439

SNAP RING,0.288" ID x 0.66" OD x 0.037" Thk, External

2шт.

6

87625620

HEX SOC SCREW,M5 x 40mm, Cl 8.8

4шт.

7

86512495

FLANGE NUT,Hex, M5, Cl 8

4шт.

8

84553000

ROD

2шт.

9

86500348

BALL JOINT HEAD,3/8" - 24

2шт.

10

80855

NUT,Hex, 3/8" - 24

2шт.

11

87319446

JAM NUT,Hex, 3/8" - 24, Gr 5

2шт.

12

86521553

BOLT,Hex, 5/16" - 18 x 1", Gr 5

4шт.

13

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

4шт.

14

86521605

FLANGE NUT,5/16"-18, Cl 5

4шт.

15

9706689

BOLT,Hex, 3/8" - 16 x 1 3/4", Gr 5

2шт.

16

87016

WASHER,0.41" ID x 0.81" OD x 0.07" Thk

4шт.

17

87039402

NUT,3/8"-16, GB

2шт.

18

47798685

MOUNT

1шт.

19

322356

BELLEVILLE WASHER,M5 Bolt Size x 12mm OD x 1.85mm Thk

4шт.
