Запчасти Case IH WD1903 (55.518.AZ) - WINDSHIELD WIPER, ACCESSORY DRIVE (55) - ELECTRICAL SYSTEMS

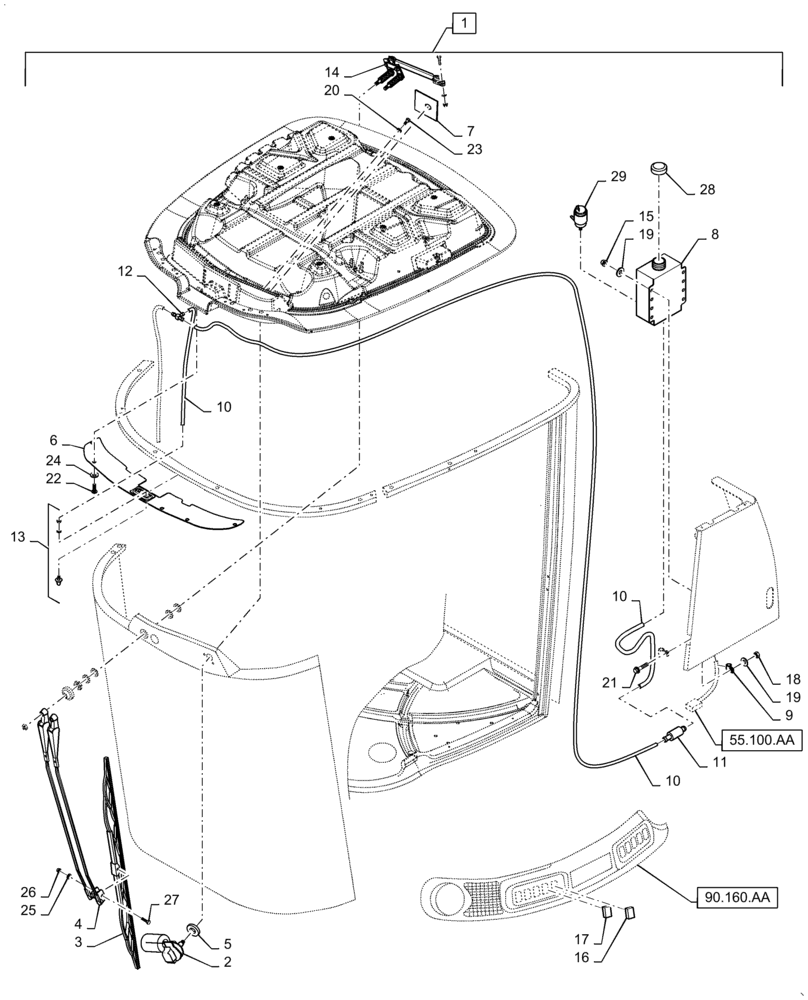

Схема запчастей Case IH WD1903 - (55.518.AZ) - WINDSHIELD WIPER, ACCESSORY DRIVE (55) - ELECTRICAL SYSTEMS
15
10
22
25
10
16
8
18
3
17
21
10
6
55.100.aa
2
13
11
19
24
19
1
5
27
90.160.aa
23
4
7
14
26
12
20
28
9
29

Артикул

Название

Примечание

Количество

1

717213006

DIA KIT, HARVESTER

Incl 1 - 30

1шт.

2

84431950

WIPER MOTOR,12V

1шт.

3

84007417

WIPER BLADE,1285mm L

1шт.

4

86542153

WIPER ARM,Dual, 310mm L

1шт.

5

87019751

WIPER SEAL,M20 x 39mm OD x 12.7mm Thk

1шт.

6

87017034

COVER

1шт.

7

87011910

COVER

Decal

1шт.

8

87014923

RESERVOIR, WINDSHIEL

1шт.

9

853764

CLAMP,7.9mm, Coat, 8.7mm Bolt Hole, P Type

2шт.

10

87029882

HOSE

Cut From Bulk, Approx 6m (18 Ft)

1шт.

11

84037530

VALVE

1шт.

12

84037529

3 WAY CONNECTION

1шт.

13

84037532

NOZZLE

2шт.

14

84061267

ARM

No Service Parts Available

1шт.

15

86521605

FLANGE NUT,5/16"-18, Cl 5

4шт.

16

86633771

WINDSHIELD WIPER SWI

2 Speed

1шт.

17

84320245

WINDSHIELD WASHER SW

1шт.

18

9635082

NUT,5/16" - 18, Gr 5

1шт.

19

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

5шт.

20

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

3шт.

21

86521553

BOLT,Hex, 5/16" - 18 x 1", Gr 5

1шт.

22

86511042

SCREW,Pan Head, M4 x 0.7 x 16mm, Cl 4.8

6шт.

23

84058583

HEX SOC SCREW,BTN HD, M6 x 16mm, Cl 8.8

3шт.

24

322355

BELLEVILLE WASHER,M4 Bolt Size x 10mm OD x 0.9mm Thk

6шт.

25

86588450

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

1шт.

26

353308

NUT,M6 x 1.0, Cl 8

1шт.

27

43117

SCREW,Hex, M6 x 1.0 x 30mm, Cl 8.8

1шт.

28

87439461

CAP

Washer Bottle

1шт.

29

BN98901

PUMP

Washer

1шт.

Выбрано товаров: 29
