Запчасти Case IH WD1903 (55.510.AF) - HARNESS, CAB, MAIN DISTRIBUTOR (55) - ELECTRICAL SYSTEMS

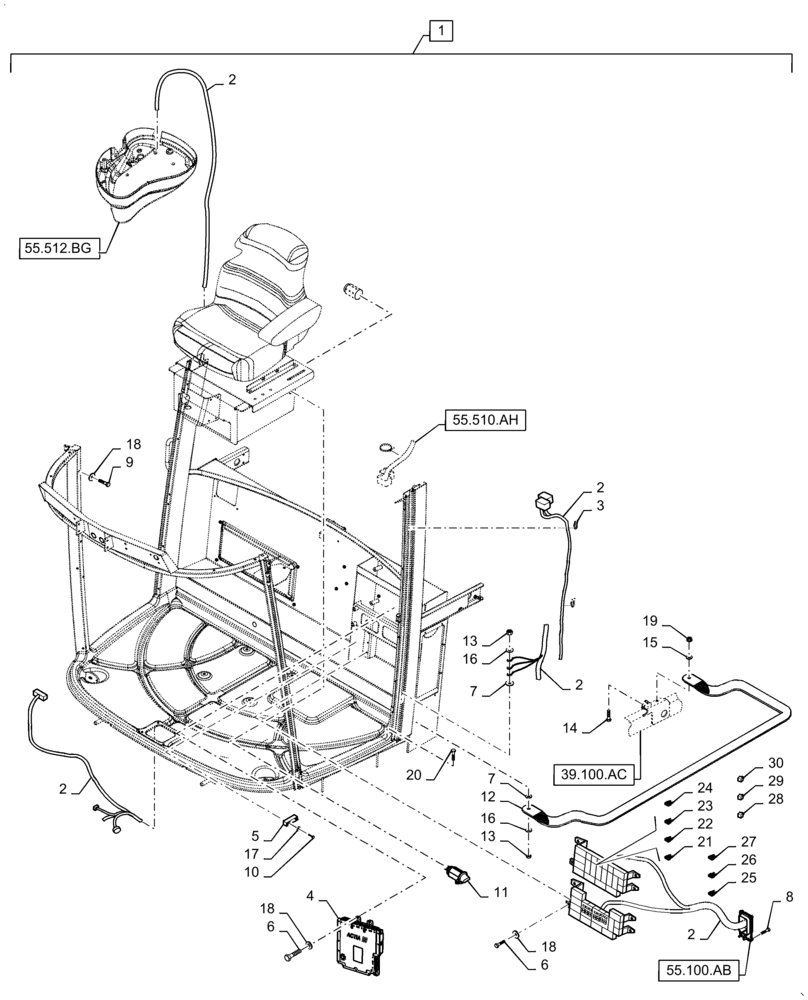

Схема запчастей Case IH WD1903 - (55.510.AF) - HARNESS, CAB, MAIN DISTRIBUTOR (55) - ELECTRICAL SYSTEMS
6
27
2
2
18
20
55.510.ah
26
13
9
14
2
8
16
24
16
3
23
30
11
7
7
5
13
18
15
21
4
22
2
19
39.100.ac
28
12
55.100.ab
2
6
55.512.bg
1
25
18
29
10
17

Артикул

Название

Примечание

Количество

1

47373082

WIRE HARNESS

Non-Draper Option, 6 Cylinder

1шт.

1

84515777

WIRE HARNESS

Non-Draper Option, 4 Cylinder

1шт.

2

84572791

WIRE HARNESS

Draper Option, 6 Cylinder

1шт.

2

84515781

WIRE HARNESS

Draper Option, 4 Cylinder

1шт.

3

323597

CABLE TIE,165mm OAL x 9mm Thk

4шт.

4

84589142

MODULE

ECU, Requires Programming , Serial Range: -YFG676623

1шт.

4

47647494

ECU

ECU, Requires Programming , Start Serial: YFG676624

1шт.

5

86705351

RESISTOR

50 Ohn, 10 Watt

3шт.

6

9832203

HEX SOC SCREW,M6 x 25mm, Cl 8.8, Full Thd

12шт.

7

48917

WASHER

2шт.

8

87040922

SELF-TAP SCREW,Washer Hd, #12-24 x 5/8"

4шт.

9

86016585

SCREW,Phil Pan Hd, M6 x 20mm, Cl 4.8

5шт.

10

86639138

SELF-TAP SCREW,HWH, M4.8 x 1.6 x 13mm

3шт.

11

86626904

OUTLET

Power Socket Assy

1шт.

12

87035431

GROUND STRAP

1шт.

13

9635082

NUT,5/16" - 18, Gr 5

2шт.

14

280523

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

1шт.

15

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

1шт.

16

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

2шт.

17

322355

BELLEVILLE WASHER,M4 Bolt Size x 10mm OD x 0.9mm Thk

3шт.

18

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

17шт.

19

412064

BOLT,Hex, M4 x 16mm, Cl 8.8, Full Thd

2шт.

20

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

3шт.

21

84127703

FUSE,15A, Mini, Blue

15A

16шт.

22

84152583

FUSE,7.5A, Mini, Brown

7.5A

4шт.

23

84153830

FUSE,5A, Mini, Beige

5A

3шт.

24

84127702

FUSE,10A, Mini, Red

10A

9шт.

25

84127704

FUSE,20A, Mini, Yellow

20A

5шт.

26

84326484

FUSE,3A, Mini, Violet

3A

2шт.

27

84157159

FUSE,40A, Maxi, Orange

40A

2шт.

28

368459A1

RELAY,12V, 70A

70A

5шт.

29

86537972

RELAY

12V

1шт.

30

86509590

RELAY

20A

15шт.

Выбрано товаров: 33
