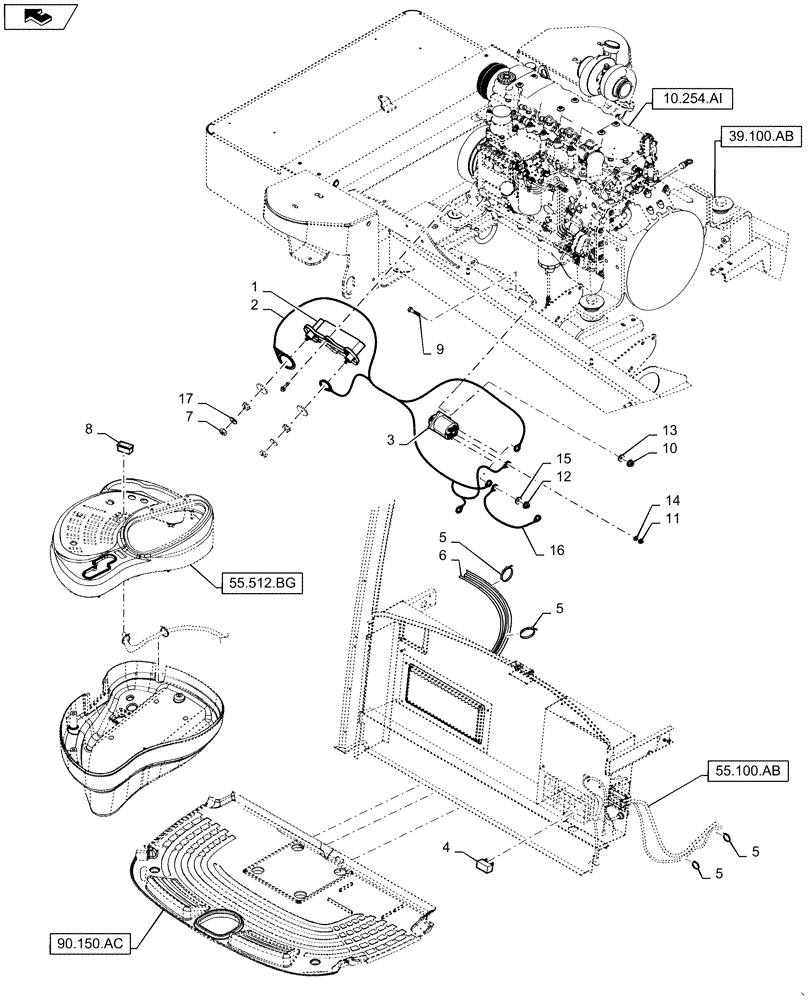

Запчасти Case IH WD1903 (55.202.AG) - COLD START SYSTEM, 6 CYLINDER MACHINES (55) - ELECTRICAL SYSTEMS

1

87541231

UNIT HEATER

Grid Heater

1шт.

2

87389491

CABLE

1шт.

3

87406968

SOLENOID SWITCH

1шт.

4

86509590

RELAY

20 Amp

1шт.

5

86566989

CABLE TIE,208mm L

10шт.

6

87389493

WIRE HARNESS

Starter Harness

1шт.

7

86511444

FLANGE NUT,Hex, M6 x 1

2шт.

8

86631307

SWITCH

Rocker Switch For Grid Heater

1шт.

9

86521549

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

2шт.

10

86624020

FLANGE NUT,Flg, 1/4"-20.G5

2шт.

11

9635082

NUT,5/16" - 18, Gr 5

2шт.

12

87825

NUT,#10-32

2шт.

13

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

4шт.

14

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

2шт.

15

80684

LOCK WASHER,4.9mm ID x 8.48mm OD x 1.19mm Thk

2шт.

16

87389492

POS BATTERY CABLE

Positive Battery Cable

1шт.

17

80701

WASHER,0.31" ID x 0.73" OD x 0.07" Thk

2шт.
