Запчасти Case IH WD1903 (55.100.AB) - FRAME, REAR, ELECTRIC SYSTEM CONTROL (55) - ELECTRICAL SYSTEMS

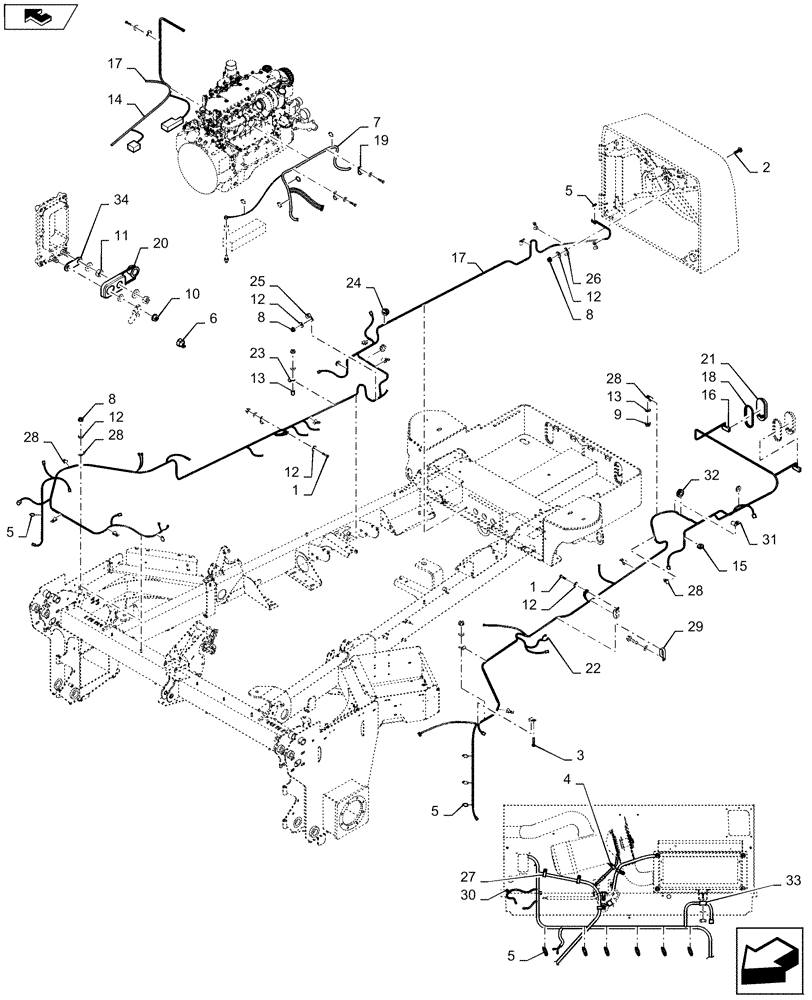

Схема запчастей Case IH WD1903 - (55.100.AB) - FRAME, REAR, ELECTRIC SYSTEM CONTROL (55) - ELECTRICAL SYSTEMS
15
5
6
13
26
8
5
16
29
8
17
home
9
28
7
34
14
2
10
31
12
20
33
13
11
24
27
12
8
1
32
21
3
12
17
19
28
18
28
5
4
12
25
1
28
30
12
23
22
5

Артикул

Название

Примечание

Количество

1

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

6шт.

2

280428

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 1", Gr 5

4шт.

3

86521553

BOLT,Hex, 5/16" - 18 x 1", Gr 5

4шт.

4

86521613

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

5

86566989

CABLE TIE,208mm L

37шт.

6

84391159

WIRE CONNECTOR

2шт.

7

84515765

WIRE HARNESS

Battery Cable

1шт.

7

NS

NOT SERVICED

See Page xx.xxx.xx

1шт.

8

86521605

FLANGE NUT,5/16"-18, Cl 5

17шт.

9

86521606

FLANGE NUT,Hex, 3/8" - 16, Gr 5

8шт.

10

9804277

FLANGE NUT,Hex, M8 x 1.25, Cl 8

1шт.

11

100016

NUT,M10 x 1.5, Cl 8

2шт.

12

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

23шт.

13

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

10шт.

14

84572792

WIRE HARNESS

FD

1шт.

14

84515782

WIRE HARNESS

FD

1шт.

15

86500924

GROMMET

4шт.

16

47447100

WIRE HARNESS

Tail Light

2шт.

17

47373086

WIRE HARNESS

FM

1шт.

17

84515778

WIRE HARNESS

FM

1шт.

18

47447097

GROMMET

Tail Light

2шт.

19

9827902

CLAMP,25.4mm, Coat, 10.3mm Bolt Hole, P Type

2шт.

20

84558376

COVER

Terminal, Red

1шт.

21

47447096

STOP LIGHT

Tail/Stop, Red

2шт.

22

86562581

SWITCH

1шт.

23

86512388

CLAMP,19.05mm ID, 10.41mm Bolt Hole, P Type

2шт.

24

198823C1

GROMMET,9.53mm ID x 41.1mm OD x 26.9mm Thk

1шт.

25

239859

CLAMP

2шт.

26

86572009

CLAMP,9.5mm, Coat, 10.3mm Bolt Hole, P Type

4шт.

27

86628564

CLAMP,31.7mm, Coat, 10.3mm Bolt Hole, P Type

4шт.

28

86010402

CLAMP,12.7mm, Coat, 10.3mm Bolt Hole, P Type

11шт.

29

600427

CLAMP,25.4mm, Coat, 8.7mm Bolt Hole, P Type

3шт.

30

853764

CLAMP,7.9mm, Coat, 8.7mm Bolt Hole, P Type

1шт.

31

9848767

CLAMP,17.5mm, Coat, 13.5mm Bolt Hole, P Type

2шт.

32

237915

GROMMET

2шт.

33

9706748

CLAMP,15.9mm, Coat, 8.7mm Bolt Hole, P Type

1шт.

34

84476466

PLATE

Bus

1шт.

Выбрано товаров: 37
