Запчасти Case IH WD1903 (55.100.AB[11]) - WIRE HARNESS, FD, DRAPER OPTION (CONT.) (55) - ELECTRICAL SYSTEMS

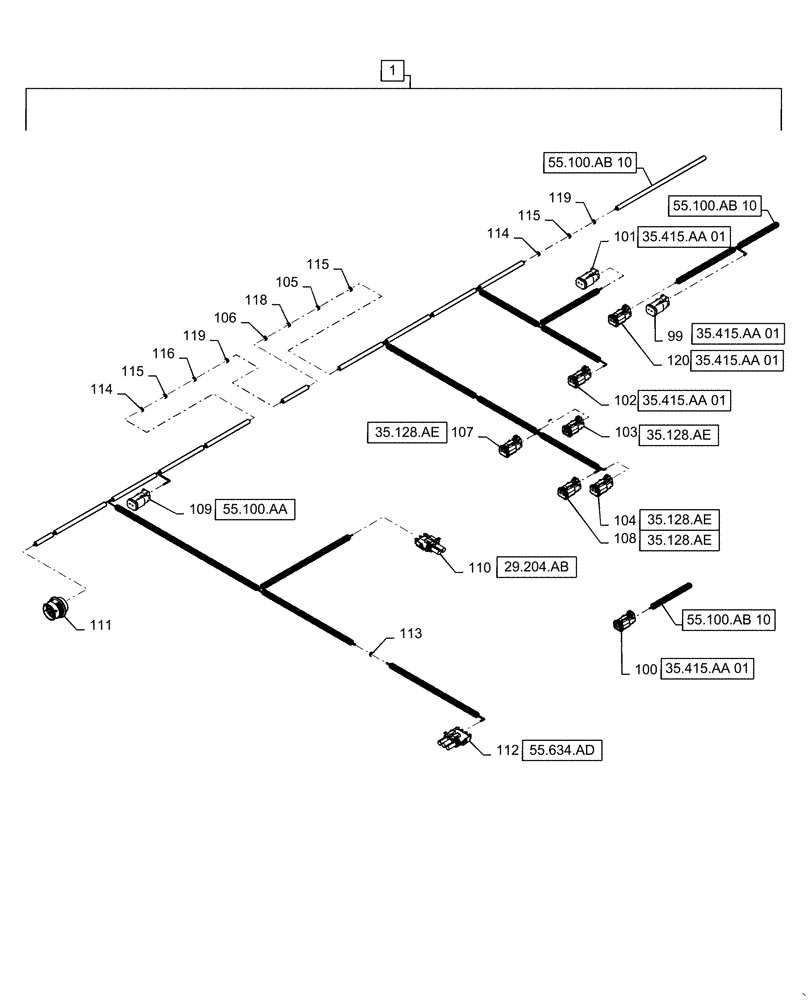

Схема запчастей Case IH WD1903 - (55.100.AB[11]) - WIRE HARNESS, FD, DRAPER OPTION (CONT.) (55) - ELECTRICAL SYSTEMS
118
55.100.aa
35.415.aa 01
35.128.ae
99
104
108
110
111
115
103
116
55.100.ab 10
35.128.ae
35.415.aa 01
29.204.ab
35.128.ae
35.415.aa 01
115
35.128.ae
119
114
55.100.ab 10
107
102
113
119
112
1
35.415.aa 01
115
105
55.634.ad
35.415.aa 01
114
101
109
100
55.100.ab 10
120
106

Артикул

Название

Примечание

Количество

1

84572792

WIRE HARNESS

FD, Incl 99 - 120, (Cont.)

1шт.

99

87695582

ELEC CONNECTOR,Female, 2 Pole

Y-006 Solenoid, Header Raise Valve (Black), X-097

1шт.

99

84074638

LOCKING TAB,Locking Wedge, Green

Y-006 Solenoid, Header Raise Valve (Black), X-097

1шт.

99

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

Y-006 Solenoid, Header Raise Valve (Black), X-097

2шт.

100

47486924

ELEC CONNECTOR

Connector, Y-008 Solenoid, Header Lower Valve (Brown), X-099

1шт.

100

84277220

LOCKING TAB,Wedge Lock

Y-008 Solenoid, Header Lower Valve (Brown), X-099

1шт.

100

84277237

TERMINAL

Terminal, Y-008 Solenoid, Header Lower Valve (Brown), X-099

2шт.

101

87695582

ELEC CONNECTOR,Female, 2 Pole

Y-065 Solenoid, Lift Arm Power Down (Black), X-392

1шт.

101

84074638

LOCKING TAB,Locking Wedge, Green

Y-065 Solenoid, Lift Arm Power Down (Black), X-392

1шт.

101

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

Y-065 Solenoid, Lift Arm Power Down (Black), X-392

2шт.

102

84277193

ELEC CONNECTOR

Y-064 Solenoid, Ground Speed Range Select (Gray), X-394

1шт.

102

84277220

LOCKING TAB,Wedge Lock

Y-064 Solenoid, Ground Speed Range Select (Gray), X-394

1шт.

102

84277237

TERMINAL

Terminal, Y-064 Solenoid, Ground Speed Range Select (Gray), X-394

2шт.

103

47486924

ELEC CONNECTOR

Connector, Y-037 Solenoid, Draper Lift Position, Right (Brown), X-142

1шт.

103

84068583

PLUG,12 - 16 Ga, White

Y-037 Solenoid, Draper Lift Position, Right (Brown), X-142

1шт.

103

84277220

LOCKING TAB,Wedge Lock

Y-037 Solenoid, Draper Lift Position, Right (Brown), X-142

1шт.

103

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

Y-037 Solenoid, Draper Lift Position, Right (Brown), X-142

2шт.

104

84277534

ELEC CONNECTOR

Y-036 Solenoid, Cut Height Position, Left (Green), X-159

1шт.

104

84277220

LOCKING TAB,Wedge Lock

Y-036 Solenoid, Cut Height Position, Left (Green), X-159

1шт.

104

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

Y-036 Solenoid, Cut Height Position, Left (Green), X-159

2шт.

105

225065C1

ELEC CONNECTOR,3.00 - 5.00mm

GND-003, X-433

2шт.

106

225065C1

ELEC CONNECTOR,3.00 - 5.00mm

GND-003, X-281

4шт.

107

84277533

ELEC CONNECTOR,Fem, 2 Cavities/Pins

Connector, Y-038 Solenoid, Draper Unload (Blue), X-137

1шт.

107

84277220

LOCKING TAB,Wedge Lock

Y-038 Solenoid, Draper Unload (Blue), X-137

1шт.

107

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

Y-038 Solenoid, Draper Unload (Blue), X-137

2шт.

108

84277535

ELEC CONNECTOR,Female, 2 Cavities

Connector, Y-019 Solenoid, Equalization (Yellow), X-088

1шт.

108

84277220

LOCKING TAB,Wedge Lock

Y-019 Solenoid, Equalization (Yellow), X-088

1шт.

108

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

Y-019 Solenoid, Equalization (Yellow), X-088

1шт.

108

84277237

TERMINAL

Terminal, Y-019 Solenoid, Equalization (Yellow), X-088

1шт.

109

87695582

ELEC CONNECTOR,Female, 2 Pole

E-012 Lamp, Base Unit, Flashing, Right, X-325

1шт.

109

84074638

LOCKING TAB,Locking Wedge, Green

E-012 Lamp, Base Unit, Flashing, Right, X-325

1шт.

109

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

E-012 Lamp, Base Unit, Flashing, Right, X-325

2шт.

110

87692855

CONTACT HOUSING,Male, 2 Cavities

B-002 Sensor, Ground Speed, Right, X-111

1шт.

110

87692856

CABLE TERMINAL

B-002 Sensor, Ground Speed, Right, X-111

2шт.

110

87680701

SEAL

B-002 Sensor, Ground Speed, Right, X-111

2шт.

111

84364896

PLUG

Connector, FM to AD Pass Thru Connector, X-192

1шт.

111

84607513

LOCK WASHER

FM to AD Pass Thru Connector, X-192

1шт.

111

84068583

PLUG,12 - 16 Ga, White

FM to AD Pass Thru Connector, X-192

1шт.

111

87696184

NUT

FM to AD Pass Thru Connector, X-192

1шт.

111

87716289

COVER

FM to AD Pass Thru Connector, X-192

1шт.

111

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

FM to AD Pass Thru Connector, X-192

13шт.

111

87695923

TERMINAL

FM to AD Pass Thru Connector, X-192

4шт.

111

86500036

TERMINAL,Female, Nickel, 0.75 - 2mm

FM to AD Pass Thru Connector, X-192

3шт.

112

87644909

WIRE CONNECTOR,Female, 3 Pins

B-056 Sensor, Lift Arm Position, X-077

1шт.

112

87692880

CABLE TERMINAL

B-056 Sensor, Lift Arm Position, X-077

3шт.

112

87680701

SEAL

B-056 Sensor, Lift Arm Position, X-077

3шт.

113

853764

CLAMP,7.9mm, Coat, 8.7mm Bolt Hole, P Type

1шт.

114

86521605

FLANGE NUT,5/16"-18, Cl 5

2шт.

115

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

3шт.

116

86521553

BOLT,Hex, 5/16" - 18 x 1", Gr 5

1шт.

117

86010402

CLAMP,12.7mm, Coat, 10.3mm Bolt Hole, P Type

1шт.

118

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

1шт.

119

86637976

CLAMP,19mm, Coat, 8.7mm Bolt Hole, P Type

1шт.

120

84277532

ELEC CONNECTOR

Connector, Y-005 Solenoid, Header Raise Valve (Red), X-096

1шт.

120

84277220

LOCKING TAB,Wedge Lock

Y-005 Solenoid, Header Raise Valve (Red), X-096

1шт.

120

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

Y-005 Solenoid, Header Raise Valve (Red), X-096

2шт.

Выбрано товаров: 56
