Запчасти Case IH WD1903 (55.100.AB[10]) - WIRE HARNESS, FD, DRAPER OPTION (CONT.) (55) - ELECTRICAL SYSTEMS

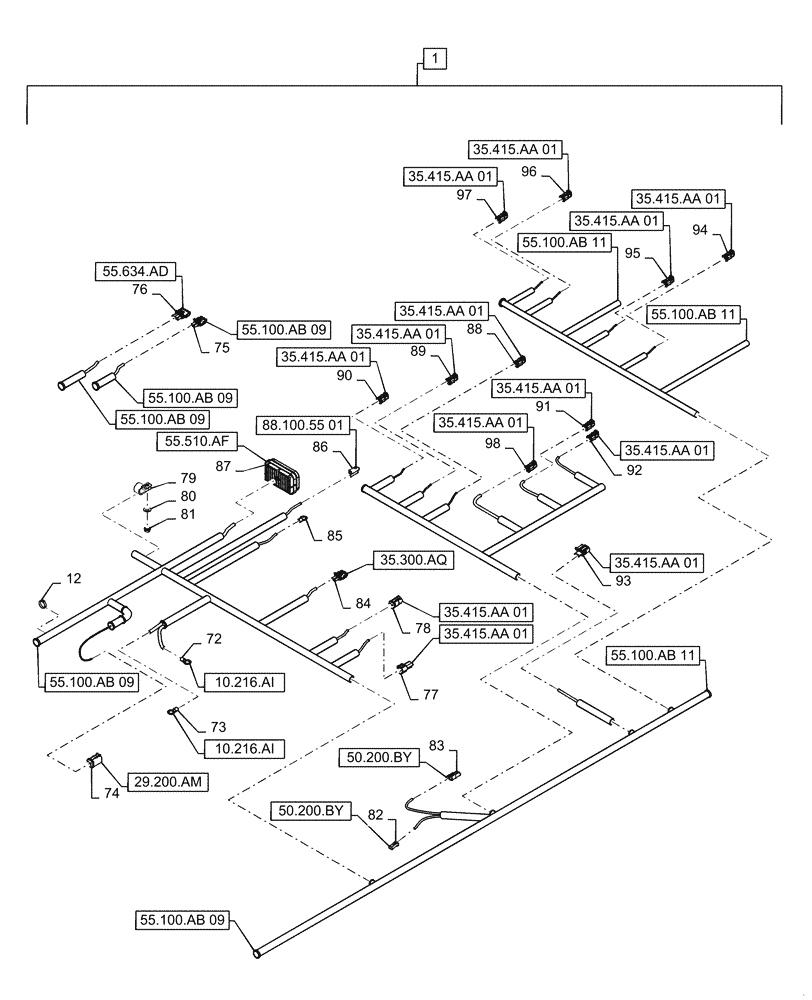

Схема запчастей Case IH WD1903 - (55.100.AB[10]) - WIRE HARNESS, FD, DRAPER OPTION (CONT.) (55) - ELECTRICAL SYSTEMS
35.415.aa 01
89
55.100.ab 09
72
35.415.aa 01
12
55.510.af
79
88
88.100.55 01
35.415.aa 01
84
73
98
77
1
35.415.aa 01
55.100.ab 09
35.415.aa 01
55.100.ab 11
29.200.am
50.200.by
35.415.aa 01
55.100.ab 09
35.300.aq
75
50.200.by
76
78
93
85
35.415.aa 01
83
90
55.100.ab 11
50.200.by
96
35.415.aa 01
86
10.216.ai
74
55.634.ad
55.100.ab 09
35.415.aa 01
80
95
10.216.ai
35.415.aa 01
92
94
35.415.aa 01
97
55.100.ab 11
91
81
35.415.aa 01
87
35.415.aa 01
55.100.ab 09
82

Артикул

Название

Примечание

Количество

1

84572792

WIRE HARNESS

FD, Incl 72 - 98, (Cont.)

1шт.

72

225072C1

CONNECTOR, ELEC

R-001 Sensor, Fuel Level, X-047

1шт.

73

225072C1

CONNECTOR, ELEC

R-001 Sensor, Fuel Level, X-498

1шт.

74

87694112

ELEC CONNECTOR,Female, 6 Pole

FM to AG Pass Thru, X-042

1шт.

74

87694150

LOCKING TAB,Wedge Lock

FM to AG Pass Thru, X-042

1шт.

74

84068583

PLUG,12 - 16 Ga, White

FM to AG Pass Thru, X-042

1шт.

74

84391167

CAP

FM to AG Pass Thru, X-042

1шт.

74

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

FM to AG Pass Thru, X-042

5шт.

75

87692855

CONTACT HOUSING,Male, 2 Cavities

B-001 Sensor, Ground Speed, Left, X-178

1шт.

75

87692856

CABLE TERMINAL

B-001 Sensor, Ground Speed, Left, X-178

2шт.

75

87680701

SEAL

B-001 Sensor, Ground Speed, Left, X-178

2шт.

76

87644909

WIRE CONNECTOR,Female, 3 Pins

B-055 Sensor, X-075

1шт.

76

87692880

CABLE TERMINAL

B-055 Sensor, X-075

3шт.

76

87680701

SEAL

B-055 Sensor, X-075

3шт.

77

87695723

ELEC CONNECTOR,Male , 3 Pole

FD to FM Pass Thru, X-627A

1шт.

77

87695625

WIRE CONNECTOR,Locking, Green

FD to FM Pass Thru, X-627A

1шт.

77

87695623

ELEC. TERMINAL PIN

FD to FM Pass Thru, X-627A

3шт.

78

87695580

ELEC CONNECTOR,Female, 3 Pole

FM to RS/FD Pass Thru, X-627

1шт.

78

84074639

LOCKING TAB,Wedge Lock

FM to RS/FD Pass Thru, X-627

1шт.

78

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

FM to RS/FD Pass Thru, X-627

3шт.

79

86628564

CLAMP,31.7mm, Coat, 10.3mm Bolt Hole, P Type

1шт.

80

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

1шт.

81

86521606

FLANGE NUT,Hex, 3/8" - 16, Gr 5

1шт.

82

87688695

ELEC CONNECTOR,Female, 1 Cavity

S-040 Switch, Pressure, ATC High, X-014

1шт.

82

87709400

ELEC. TERMINAL PIN

S-040 Switch, Pressure, ATC High, X-014

1шт.

83

87693717

ELEC CONNECTOR

S-040 Switch, Pressure, ATC High, X-152

1шт.

83

225114C1

CONTACT

S-040 Switch, Pressure, ATC High, X-152

1шт.

84

87692855

CONTACT HOUSING,Male, 2 Cavities

S-019 Switch, Hydraulic Reservoir Level, X-141

1шт.

84

87692856

CABLE TERMINAL

S-019 Switch, Hydraulic Reservoir Level, X-141

2шт.

84

87680701

SEAL

S-019 Switch, Hydraulic Reservoir Level, X-141

2шт.

85

225060C1

CONNECTOR, ELEC

GND-005, Left Cab (Under Instructor Seat), X-376

1шт.

86

87693325

ELEC CONNECTOR,Female, 2 Cavities

M-005 Motor, Windshield Washer Pump, X-266

1шт.

86

87709400

ELEC. TERMINAL PIN

M-005 Motor, Windshield Washer Pump, X-266

2шт.

87

84479171

MULTIPOLE CONNECTOR,128 Contacts

Connector, FM to CM Pass Thru, X-044

1шт.

87

84479172

LOCKING TAB

Wedge, FM to CM Pass Thru, X-044

2шт.

87

84068583

PLUG,12 - 16 Ga, White

FM to CM Pass Thru, X-044

1шт.

87

86500036

TERMINAL,Female, Nickel, 0.75 - 2mm

FM to CM Pass Thru, X-044

15шт.

87

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

FM to CM Pass Thru, X-044

74шт.

87

87695923

TERMINAL

FM to CM Pass Thru, X-044

3шт.

88

84277534

ELEC CONNECTOR

Y-002 Solenoid, Header Flotation (Green), X-093

1шт.

88

84277220

LOCKING TAB,Wedge Lock

Y-002 Solenoid, Header Flotation (Green), X-093

1шт.

88

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

Y-002 Solenoid, Header Flotation (Green), X-093

2шт.

89

84277535

ELEC CONNECTOR,Female, 2 Cavities

Connector, Y-009 Solenoid, Header Float Valve (Yellow), X-100

1шт.

89

84277220

LOCKING TAB,Wedge Lock

Y-009 Solenoid, Header Float Valve (Yellow), X-100

1шт.

89

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

Y-009 Solenoid, Header Float Valve (Yellow), X-100

2шт.

90

47486924

ELEC CONNECTOR

Connector, Y-007 Solenoid, Header Lower Valve (Brown), X-098

1шт.

90

84277220

LOCKING TAB,Wedge Lock

Y-007 Solenoid, Header Lower Valve (Brown), X-098

1шт.

90

84277237

TERMINAL

Terminal, Y-007 Solenoid, Header Lower Valve (Brown), X-098

2шт.

91

47461911

ELEC CONNECTOR

Connector, Y-028 Solenoid, Brake Valve, Release (White), X-073

1шт.

91

84277220

LOCKING TAB,Wedge Lock

Y-028 Solenoid, Brake Valve, Release (White), X-073

1шт.

91

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

Y-028 Solenoid, Brake Valve, Release (White), X-073

2шт.

92

84277193

ELEC CONNECTOR

Y-023 Solenoid, Ground Speed High (Gray), X-072

1шт.

92

84277220

LOCKING TAB,Wedge Lock

Y-023 Solenoid, Ground Speed High (Gray), X-072

1шт.

92

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

Y-023 Solenoid, Ground Speed High (Gray), X-072

2шт.

93

87690432

ELEC CONNECTOR

Connector, R-007 Resistor, Hydraulic Oil Temperature, X-140

1шт.

93

87690510

ELEC. TERMINAL PIN,Female, 0.75 - 1 mm2

R-007 Resistor, Hydraulic Oil Temperature, X-140

2шт.

94

84277534

ELEC CONNECTOR

Y-001 Solenoid, Header Flotation (Green), X-092

1шт.

94

84277220

LOCKING TAB,Wedge Lock

Y-001 Solenoid, Header Flotation (Green), X-092

1шт.

94

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

Y-001 Solenoid, Header Flotation (Green), X-092

2шт.

95

84277535

ELEC CONNECTOR,Female, 2 Cavities

Connector, Y-010 Solenoid, Header Float Valve (Yellow), X-101

1шт.

95

84277220

LOCKING TAB,Wedge Lock

Y-010 Solenoid, Header Float Valve (Yellow), X-101

1шт.

95

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

Y-010 Solenoid, Header Float Valve (Yellow), X-101

2шт.

96

84727533

Connector, Y-004 Solenoid, Unload Valve (Blue), X-095

1шт.

96

84277220

LOCKING TAB,Wedge Lock

Y-004 Solenoid, Unload Valve (Blue), X-095

1шт.

96

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

Y-004 Solenoid, Unload Valve (Blue), X-095

2шт.

97

47461911

ELEC CONNECTOR

Connector, Y-003 Solenoid, Unload Valve (White), X-094

1шт.

97

84277220

LOCKING TAB,Wedge Lock

Y-003 Solenoid, Unload Valve (White), X-094

1шт.

97

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

Y-003 Solenoid, Unload Valve (White), X-094

2шт.

98

47486924

ELEC CONNECTOR

Connector, Y-013 Solenoid, Header Tilt (Brown), X-103

1шт.

98

84277220

LOCKING TAB,Wedge Lock

Y-013 Solenoid, Header Tilt (Brown), X-103

1шт.

98

84277737

Terminal, Y-013 Solenoid, Header Tilt (Brown), X-103

2шт.

Выбрано товаров: 71
