Запчасти Case IH WD1903 (55.100.AB[09]) - WIRE HARNESS, FD, DRAPER OPTION (CONT.) (55) - ELECTRICAL SYSTEMS

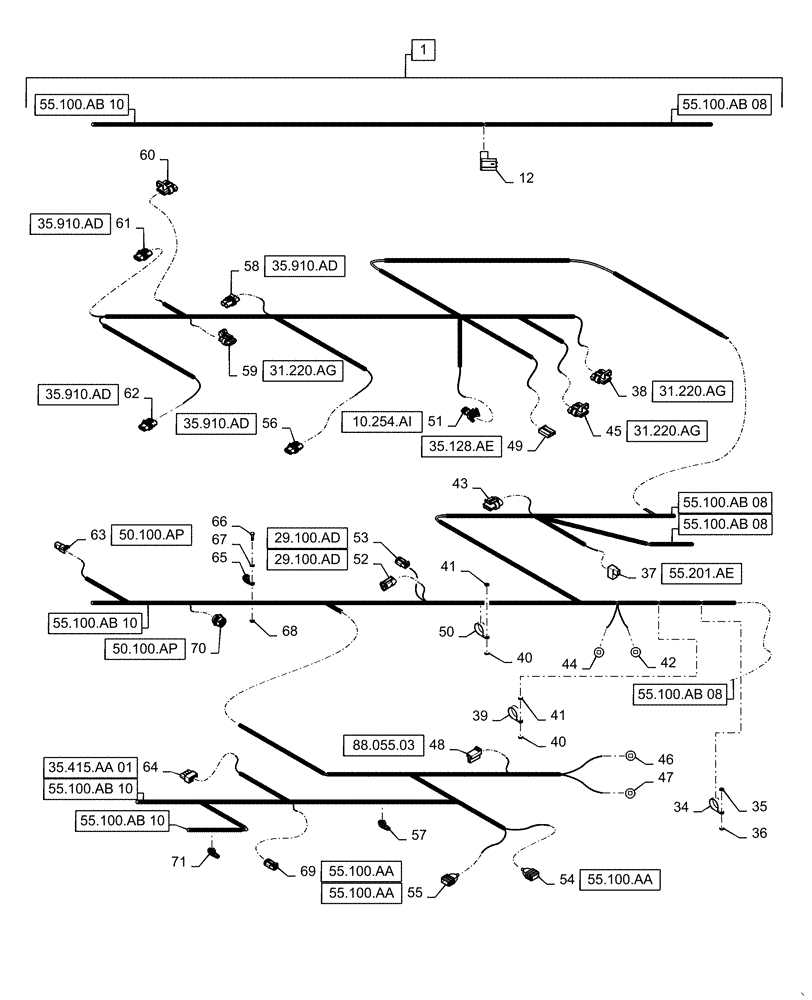

Схема запчастей Case IH WD1903 - (55.100.AB[09]) - WIRE HARNESS, FD, DRAPER OPTION (CONT.) (55) - ELECTRICAL SYSTEMS
35
58
49
29.100.ad
69
64
55.100.aa
61
55.100.ab 08
70
37
55
60
43
53
71
66
34
46
39
35.910.ad
51
54
65
41
55.100.ab 08
38
52
50.100.ap
1
68
35.910.ad
62
31.220.ag
42
48
63
35.415.aa 01
47
35.128.ae
55.100.ab 10
36
50.100.ap
45
10.254.ai
41
55.100.aa
40
56
55.201.ae
67
88.055.03
55.100.ab 10
57
59
35.910.ad
44
40
31.220.ag
29.100.ad
50
55.100.ab 08
55.100.aa
55.100.ab 08
12
55.100.ab 10
31.220.ag
35.910.ad
55.100.ab 10

Артикул

Название

Примечание

Количество

1

84572792

WIRE HARNESS

FD, Incl 37 - 71, (Cont.)

1шт.

37

84120017

ELEC CONNECTOR

Connector, M-008 Motor, Starter, X-348

1шт.

37

371230-AL02

TERMINAL

Terminal, M-008 Motor, Starter, X-348

1шт.

38

87693712

ELEC CONNECTOR,Female, 3 Cavities

B-059 Sensor, Swash Plate Angle Left (Front), X-078

1шт.

38

87693732

LOCKING TAB,Wedge Lock

B-059 Sensor, Swash Plate Angle Left (Front), X-078

1шт.

38

87688852

ELEC. TERMINAL PIN

B-059 Sensor, Swash Plate Angle Left (Front), X-078

3шт.

38

87689629

SEAL

B-059 Sensor, Swash Plate Angle Left (Front), X-078

3шт.

39

600427

CLAMP,25.4mm, Coat, 8.7mm Bolt Hole, P Type

1шт.

40

86521605

FLANGE NUT,5/16"-18, Cl 5

1шт.

41

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

1шт.

42

225065C1

ELEC CONNECTOR,3.00 - 5.00mm

GND-001 Left Rear Frame, X-305

2шт.

43

87688712

WIRE CONNECTOR,Female

F-056 Fuse, Engine Control Module (6 Cyl), X-017

1шт.

43

87689644

FUSE,30A, Blade/Uni

F-056 Fuse, Engine Control Module (6 Cyl), X-017

1шт.

43

87688863

CAP

F-056 Fuse, Engine Control Module (6 Cyl), X-017

1шт.

43

87688851

TERMINAL

Terminal, F-056 Fuse, Engine Control Module (6 Cyl), X-017

2шт.

44

86982786

ELEC. TERMINAL PIN,14 - 16 SAE

GND-001 Left Rear Frame, X-296

1шт.

45

87693732

LOCKING TAB,Wedge Lock

B-60 Sensor, Swash Plate Angle, (Right), X-079

1шт.

45

87693712

ELEC CONNECTOR,Female, 3 Cavities

B-60 Sensor, Swash Plate Angle, (Right), X-079

1шт.

45

87688852

ELEC. TERMINAL PIN

B-60 Sensor, Swash Plate Angle, (Right), X-079

3шт.

45

87689629

SEAL

B-60 Sensor, Swash Plate Angle, (Right), X-079

3шт.

46

87697629

ELEC. TERMINAL PIN,Female, 18 - 14 SAE

S-043 Switch, Fuel Door Light, X-196

1шт.

47

87697629

ELEC. TERMINAL PIN,Female, 18 - 14 SAE

S-043 Switch, Fuel Door Light, X-345

1шт.

48

82944110

ELEC CONNECTOR,Female, 2 Cavities

J-007 Jack, Service Light, Left, X-255

1шт.

48

87690511

ELEC CONNECTOR

Terminal, J-007 Jack, Service Light, Left, X-255

2шт.

49

87709400

ELEC. TERMINAL PIN

S-010 Switch, Hydraulic Charge Pressure

2шт.

50

86010402

CLAMP,12.7mm, Coat, 10.3mm Bolt Hole, P Type

1шт.

51

84607243

ELEC CONNECTOR,Female, 2 Cavities

S-009 Switch, Air Filter, X-061

1шт.

51

4420902

Boot, S-009 Switch, Air Filter, X-061

1шт.

51

87702681

TERMINAL

S-009 Switch, Air Filter, X-061

2шт.

51

87691478

SEAL

S-009 Switch, Air Filter, X-061

2шт.

52

87695580

ELEC CONNECTOR,Female, 3 Pole

Y-049 Solenoid, Propulsion Forward, X-064

1шт.

52

84068583

PLUG,12 - 16 Ga, White

Y-049 Solenoid, Propulsion Forward, X-064

1шт.

52

84074639

LOCKING TAB,Wedge Lock

Y-049 Solenoid, Propulsion Forward, X-064

1шт.

52

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

Y-049 Solenoid, Propulsion Forward, X-064

2шт.

53

87695582

ELEC CONNECTOR,Female, 2 Pole

Y-50 Solenoid, Propulsion Reverse, X-065

1шт.

53

84074638

LOCKING TAB,Locking Wedge, Green

Y-50 Solenoid, Propulsion Reverse, X-065

1шт.

53

87695321

BRACKET

Y-50 Solenoid, Propulsion Reverse, X-065

2шт.

54

84364894

BOOT

Boot, H-002 Horn, X-144

1шт.

54

87690511

ELEC CONNECTOR

Connector, H-002 Horn, X-144

1шт.

55

84364894

BOOT

Boot, H-002 Horn, X-145

1шт.

55

87690511

ELEC CONNECTOR

Connector, H-002 Horn, X-145

1шт.

56

82012083

WIRE CONNECTOR,Female

Y-072 Solenoid, PTO Tandem Pump Right Side FWD, X-153

1шт.

56

4420902

Boot, Y-072 Solenoid, PTO Tandem Pump Right Side FWD, X-153

1шт.

56

82012085

TERMINAL CONNECTOR,Female, Tin, 0.75 - 1.5mm

Y-072 Solenoid, PTO Tandem Pump Right Side FWD, X-153

2шт.

56

82012084

SEAL,1.4mm ID

Y-072 Solenoid, PTO Tandem Pump Right Side FWD, X-153

2шт.

57

853764

CLAMP,7.9mm, Coat, 8.7mm Bolt Hole, P Type

1шт.

58

82012083

WIRE CONNECTOR,Female

Y-071 Solenoid, PTO Tandem Pump Left Side Reverse, X-117

1шт.

58

4420902

Boot, Y-071 Solenoid, PTO Tandem Pump Left Side Reverse, X-117

1шт.

58

82012085

TERMINAL CONNECTOR,Female, Tin, 0.75 - 1.5mm

Y-071 Solenoid, PTO Tandem Pump Left Side Reverse, X-117

2шт.

58

82012084

SEAL,1.4mm ID

Y-071 Solenoid, PTO Tandem Pump Left Side Reverse, X-117

2шт.

59

87693712

ELEC CONNECTOR,Female, 3 Cavities

B-064 Sensor, Swash Plate Angle, Pump 1, X-080

1шт.

59

87693732

LOCKING TAB,Wedge Lock

B-064 Sensor, Swash Plate Angle, Pump 1, X-080

1шт.

59

87688852

ELEC. TERMINAL PIN

B-064 Sensor, Swash Plate Angle, Pump 1, X-080

3шт.

59

87689629

SEAL

B-064 Sensor, Swash Plate Angle, Pump 1, X-080

3шт.

60

87693712

ELEC CONNECTOR,Female, 3 Cavities

B-065 Sensor, Swash Plate Angle, Pump 2, X-089

1шт.

60

87693732

LOCKING TAB,Wedge Lock

B-065 Sensor, Swash Plate Angle, Pump 2, X-089

1шт.

60

87688852

ELEC. TERMINAL PIN

B-065 Sensor, Swash Plate Angle, Pump 2, X-089

3шт.

60

87689629

SEAL

B-065 Sensor, Swash Plate Angle, Pump 2, X-089

3шт.

61

82012084

SEAL,1.4mm ID

Y-070 Solenoid, PTO Tandem Pump Left Side, FWD, X-149

2шт.

61

82012083

WIRE CONNECTOR,Female

Y-070 Solenoid, PTO Tandem Pump Left Side, FWD, X-149

1шт.

61

4420902

Boot, Y-070 Solenoid, PTO Tandem Pump Left Side, FWD, X-149

1шт.

61

82012085

TERMINAL CONNECTOR,Female, Tin, 0.75 - 1.5mm

Y-070 Solenoid, PTO Tandem Pump Left Side, FWD, X-149

2шт.

62

82012083

WIRE CONNECTOR,Female

Y-073 Solenoid, PTO Tandem Pump Right Side, Reverse, X-156

1шт.

62

4420902

Boot, Y-073 Solenoid, PTO Tandem Pump Right Side, Reverse, X-156

1шт.

62

82012085

TERMINAL CONNECTOR,Female, Tin, 0.75 - 1.5mm

Y-073 Solenoid, PTO Tandem Pump Right Side, Reverse, X-156

2шт.

62

82012084

SEAL,1.4mm ID

Y-073 Solenoid, PTO Tandem Pump Right Side, Reverse, X-156

2шт.

63

87697530

ELEC CONNECTOR

M-010 Motor, Intake Air Pressurization, X-039

1шт.

63

87693724

TERMINAL CONNECTOR,Tin, 1.00 - 2.00mm

M-010 Motor, Intake Air Pressurization, X-039

2шт.

64

84159859

ELEC CONNECTOR,Female, 10 Cavities

S-010 Switch, Header Tilt, Apron, X-091

1шт.

64

82035902

PLUG

S-010 Switch, Header Tilt, Apron, X-091

7шт.

64

87694668

ELEC CONNECTOR

S-010 Switch, Header Tilt, Apron, X-091

3шт.

64

87691478

SEAL

S-010 Switch, Header Tilt, Apron, X-091

3шт.

65

86628564

CLAMP,31.7mm, Coat, 10.3mm Bolt Hole, P Type

1шт.

66

86521613

BOLT,Hex, 3/8" - 16 x 1", Gr 5

1шт.

67

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

1шт.

68

86521606

FLANGE NUT,Hex, 3/8" - 16, Gr 5

1шт.

69

87695582

ELEC CONNECTOR,Female, 2 Pole

E-009 Lamp, Base Unit, Flashing. Left, X-326

1шт.

69

84074638

LOCKING TAB,Locking Wedge, Green

E-009 Lamp, Base Unit, Flashing. Left, X-326

1шт.

69

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

E-009 Lamp, Base Unit, Flashing. Left, X-326

2шт.

70

84068583

PLUG,12 - 16 Ga, White

FM to AC Pass Thru Connector, Manual & ATC, X-033

1шт.

70

87695623

ELEC. TERMINAL PIN

FM to AC Pass Thru Connector, Manual & ATC, X-033

10шт.

70

87704524

ELEC CONNECTOR,Pin, Size 12

FM to AC Pass Thru Connector, Manual & ATC, X-033

2шт.

71

853764

CLAMP,7.9mm, Coat, 8.7mm Bolt Hole, P Type

1шт.

Выбрано товаров: 83
