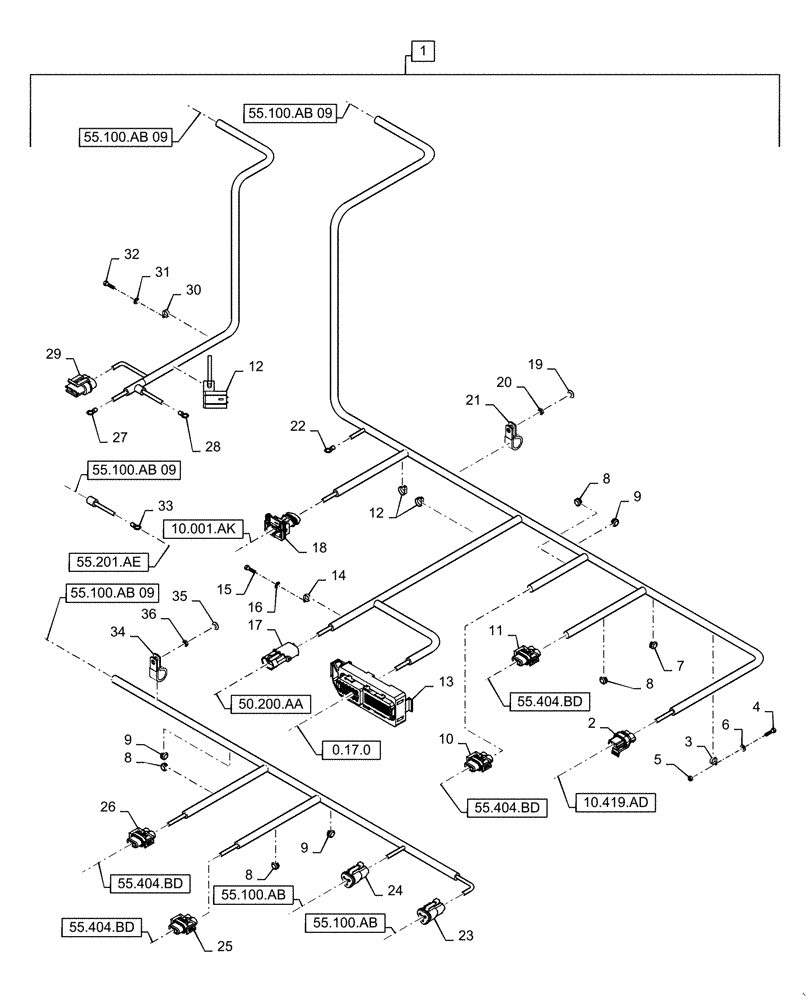

Запчасти Case IH WD1903 (55.100.AB[08]) - WIRE HARNESS, FD, DRAPER OPTION (55) - ELECTRICAL SYSTEMS

1

84572792

WIRE HARNESS

FD6, Incl 1 - 36

1шт.

2

87679438

WIRE CONNECTOR,Female

M-009 Motor, Screen Cleaner, X-048

1шт.

2

84806458

COLLAR

M-009 Motor, Screen Cleaner, X-048

1шт.

2

87680656

CONTACT

M-009 Motor, Screen Cleaner, X-048

2шт.

2

87680701

SEAL

M-009 Motor, Screen Cleaner, X-048

2шт.

3

86572009

CLAMP,9.5mm, Coat, 10.3mm Bolt Hole, P Type

4шт.

4

280428

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 1", Gr 5

4шт.

5

86521605

FLANGE NUT,5/16"-18, Cl 5

4шт.

6

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

4шт.

7

198823C1

GROMMET,9.53mm ID x 41.1mm OD x 26.9mm Thk

1шт.

8

87742343

GROMMET,.688" x 1"

4шт.

9

237915

GROMMET

3шт.

10

82003123

MULTIPOLE CONNECTOR,Female, 2 Pole

E-025 Lamp, Work, Right Rear, X-222

1шт.

10

87690602

LOCK

E-025 Lamp, Work, Right Rear, X-222

1шт.

10

87680656

CONTACT

E-025 Lamp, Work, Right Rear, X-222

2шт.

10

87680701

SEAL

E-025 Lamp, Work, Right Rear, X-222

2шт.

11

82003123

MULTIPOLE CONNECTOR,Female, 2 Pole

E-023 Lamp, Stubble, Right, X-221A

1шт.

11

87690602

LOCK

E-023 Lamp, Stubble, Right, X-221A

1шт.

11

87680656

CONTACT

E-023 Lamp, Stubble, Right, X-221A

2шт.

11

87680701

SEAL

E-023 Lamp, Stubble, Right, X-221A

2шт.

12

86566989

CABLE TIE,208mm L

8шт.

13

84160698

ELEC CONNECTOR

A-003 Module, 6 Cyl Engine Control, X-034

1шт.

13

84183733

ELEC CONNECTOR

A-003 Module, 6 Cyl Engine Control, X-034

1шт.

13

84280969

Seal Cap, A-003 Module, 6 Cyl Engine Control, X-034

1шт.

13

84130602

TERMINAL CONNECTOR

A-003 Module, 6 Cyl Engine Control, X-034

8шт.

13

84183922

TERMINAL

A-003 Module, 6 Cyl Engine Control, X-034

6шт.

14

86637976

CLAMP,19mm, Coat, 8.7mm Bolt Hole, P Type

1шт.

15

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

1шт.

16

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

1шт.

17

87692877

MULTIPOLE CONNECTOR,Male, 2 Cavities

Y-027 Solenoid, A/C Clutch, X-027

1шт.

17

87692876

CABLE TERMINAL,Female, Tin, 1 - 2mm

Y-027 Solenoid, A/C Clutch, X-027

2шт.

17

87680701

SEAL

Y-027 Solenoid, A/C Clutch, X-027

2шт.

18

84806091

WIRE CONNECTOR,Female, 3 Pin

S-008 Switch, H2O In Fuel, X-548

1шт.

18

84607244

ELEC. TERMINAL PIN,Female, 0.5 - 1 mm2

S-008 Switch, H2O In Fuel, X-548

3шт.

18

87691478

SEAL

S-008 Switch, H2O In Fuel, X-548

1шт.

18

84607242

SEAL

S-008 Switch, H2O In Fuel, X-548

2шт.

19

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

2шт.

20

86521606

FLANGE NUT,Hex, 3/8" - 16, Gr 5

2шт.

21

86512388

CLAMP,19.05mm ID, 10.41mm Bolt Hole, P Type

2шт.

22

225065C1

ELEC CONNECTOR,3.00 - 5.00mm

GND-008, Right Rear Frame, X-011

2шт.

23

87695580

ELEC CONNECTOR,Female, 3 Pole

Tail Lamp Pass Thru Right, X-119

1шт.

23

84074639

LOCKING TAB,Wedge Lock

Tail Lamp Pass Thru Right, X-119

1шт.

23

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

Tail Lamp Pass Thru Right, X-119

1шт.

23

86500036

TERMINAL,Female, Nickel, 0.75 - 2mm

Tail Lamp Pass Thru Right, X-119

2шт.

24

87695580

ELEC CONNECTOR,Female, 3 Pole

Tail Lamp Pass Thru Left, X-118

1шт.

24

84074639

LOCKING TAB,Wedge Lock

Tail Lamp Pass Thru Left, X-118

1шт.

24

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

Tail Lamp Pass Thru Left, X-118

1шт.

24

86500036

TERMINAL,Female, Nickel, 0.75 - 2mm

Tail Lamp Pass Thru Left, X-118

2шт.

25

82003123

MULTIPOLE CONNECTOR,Female, 2 Pole

E-024 Lamp, Work, Left Rear, X-225

1шт.

25

87690602

LOCK

E-024 Lamp, Work, Left Rear, X-225

1шт.

25

87680656

CONTACT

E-024 Lamp, Work, Left Rear, X-225

2шт.

25

87680701

SEAL

E-024 Lamp, Work, Left Rear, X-225

2шт.

26

82003123

MULTIPOLE CONNECTOR,Female, 2 Pole

E-022 Lamp, Stubble, Light, X-283

1шт.

26

87690602

LOCK

E-022 Lamp, Stubble, Light, X-283

1шт.

26

87680656

CONTACT

E-022 Lamp, Stubble, Light, X-283

2шт.

26

87680701

SEAL

E-022 Lamp, Stubble, Light, X-283

2шт.

27

446658

TERMINAL CONNECTOR

G-001 Alternator, X-148

1шт.

28

446658

TERMINAL CONNECTOR

G-001 Alternator, X-212

1шт.

29

87688712

WIRE CONNECTOR,Female

F-057 Fuse, Alternator "W" Line, X-020

1шт.

29

87688863

CAP

F-057 Fuse, Alternator "W" Line, X-020

1шт.

29

83933689

FUSE,10A, Red

F-057 Fuse, Alternator "W" Line, X-020

1шт.

29

87688848

TERMINAL

F-057 Fuse, Alternator "W" Line, X-020

2шт.

30

9827902

CLAMP,25.4mm, Coat, 10.3mm Bolt Hole, P Type

1шт.

31

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

1шт.

32

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

1шт.

33

225065C1

ELEC CONNECTOR,3.00 - 5.00mm

M-008 Motor, Starter, X-016

1шт.

34

86512388

CLAMP,19.05mm ID, 10.41mm Bolt Hole, P Type

2шт.

35

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

2шт.

36

86521606

FLANGE NUT,Hex, 3/8" - 16, Gr 5

2шт.
