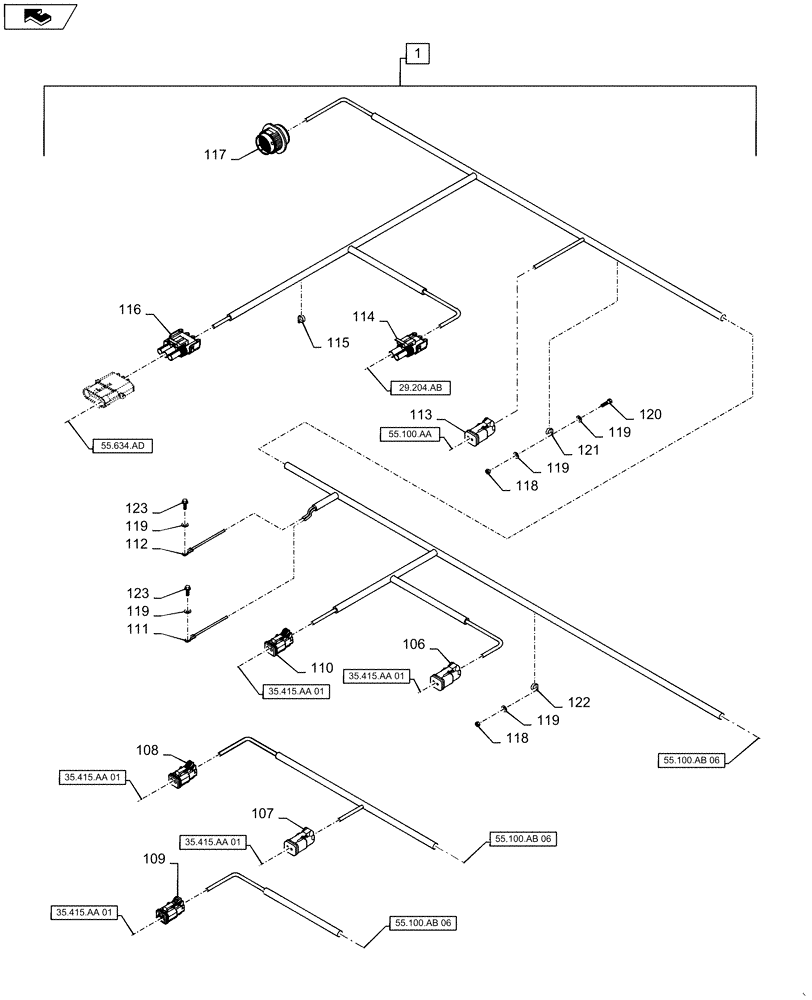

Запчасти Case IH WD1903 (55.100.AB[07]) - WIRE HARNESS. FM, NON-DRAPER OPTION (CONT.) (55) - ELECTRICAL SYSTEMS

1

47373086

WIRE HARNESS

FM, Incl 106 - 123 (Cont.)

1шт.

106

87695582

ELEC CONNECTOR,Female, 2 Pole

Y-065 Solenoid, Lift Arm Power Down (Black), X-392

1шт.

106

84074638

LOCKING TAB,Locking Wedge, Green

Y-065 Solenoid, Lift Arm Power Down (Black), X-392

1шт.

106

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

Y-065 Solenoid, Lift Arm Power Down (Black), X-392

2шт.

107

87695582

ELEC CONNECTOR,Female, 2 Pole

Y-006 Solenoid, Header Raise Valve (Black), X-097

1шт.

107

84074638

LOCKING TAB,Locking Wedge, Green

Y-006 Solenoid, Header Raise Valve (Black), X-097

1шт.

107

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

Y-006 Solenoid, Header Raise Valve (Black), X-097

2шт.

108

84277532

ELEC CONNECTOR

Connector, Y-005 Solenoid, Header Raise Valve (Red), X-096

1шт.

108

84277220

LOCKING TAB,Wedge Lock

Y-005 Solenoid, Header Raise Valve (Red), X-096

1шт.

108

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

Y-005 Solenoid, Header Raise Valve (Red), X-096

2шт.

109

47486924

ELEC CONNECTOR

Connector, Y-008 Solenoid, Header Lower Valve (Brown), X-099

1шт.

109

84277220

LOCKING TAB,Wedge Lock

Y-008 Solenoid, Header Lower Valve (Brown), X-099

1шт.

109

84277237

TERMINAL

Terminal, Y-008 Solenoid, Header Lower Valve (Brown), X-099

2шт.

110

84277193

ELEC CONNECTOR

Y-064 Solenoid, Ground Speed Range Select (Gray), X-394

1шт.

110

84277220

LOCKING TAB,Wedge Lock

Y-064 Solenoid, Ground Speed Range Select (Gray), X-394

1шт.

110

84277237

TERMINAL

Terminal, Y-064 Solenoid, Ground Speed Range Select (Gray), X-394

2шт.

111

225065C1

ELEC CONNECTOR,3.00 - 5.00mm

GND-003, X-433

2шт.

112

225065C1

ELEC CONNECTOR,3.00 - 5.00mm

GND-003, X-281

4шт.

113

87695582

ELEC CONNECTOR,Female, 2 Pole

E-012 Lamp, Base Unit, Flashing, Right, X-325

1шт.

113

84074638

LOCKING TAB,Locking Wedge, Green

E-012 Lamp, Base Unit, Flashing, Right, X-325

1шт.

113

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

E-012 Lamp, Base Unit, Flashing, Right, X-325

2шт.

114

87692855

CONTACT HOUSING,Male, 2 Cavities

B-002 Sensor, Ground Speed, Right, X-111

1шт.

114

87692856

CABLE TERMINAL

B-002 Sensor, Ground Speed, Right, X-111

2шт.

114

87680701

SEAL

B-002 Sensor, Ground Speed, Right, X-111

2шт.

115

853764

CLAMP,7.9mm, Coat, 8.7mm Bolt Hole, P Type

1шт.

116

87644909

WIRE CONNECTOR,Female, 3 Pins

B-056 Sensor, Lift Arm Position, Right, X-077

1шт.

116

87692858

ELEC CONNECTOR,Male

B-056 Sensor, Lift Arm Position, Right, X-077

1шт.

116

87686742

PLUG

B-056 Sensor, Lift Arm Position, Right, X-077

3шт.

116

87692880

CABLE TERMINAL

B-056 Sensor, Lift Arm Position, Right, X-077

3шт.

116

87680701

SEAL

B-056 Sensor, Lift Arm Position, Right, X-077

3шт.

117

84364896

PLUG

Connector, FM to AD Pass Thru Connector, X-192

1шт.

117

84607513

LOCK WASHER

FM to AD Pass Thru Connector, X-192

1шт.

117

84068583

PLUG,12 - 16 Ga, White

FM to AD Pass Thru Connector, X-192

12шт.

117

87696184

NUT

FM to AD Pass Thru Connector, X-192

1шт.

117

87716289

COVER

FM to AD Pass Thru Connector, X-192

1шт.

117

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

FM to AD Pass Thru Connector, X-192

5шт.

117

87695923

TERMINAL

FM to AD Pass Thru Connector, X-192

2шт.

117

86500036

TERMINAL,Female, Nickel, 0.75 - 2mm

FM to AD Pass Thru Connector, X-192

2шт.

118

86521605

FLANGE NUT,5/16"-18, Cl 5

2шт.

119

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

3шт.

120

86521553

BOLT,Hex, 5/16" - 18 x 1", Gr 5

1шт.

121

86010402

CLAMP,12.7mm, Coat, 10.3mm Bolt Hole, P Type

1шт.

122

86637976

CLAMP,19mm, Coat, 8.7mm Bolt Hole, P Type

1шт.

123

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

1шт.
