Запчасти Case IH WD1903 (55.100.AB[05]) - WIRE HARNESS. FM, NON-DRAPER OPTION (CONT.) (55) - ELECTRICAL SYSTEMS

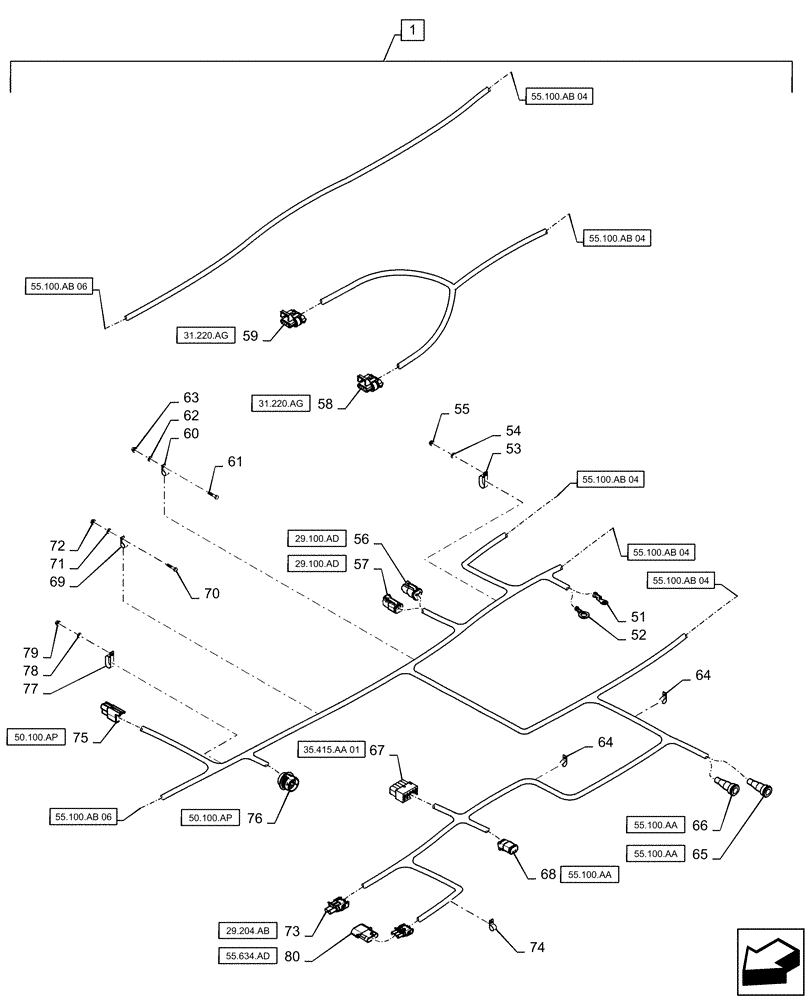

Схема запчастей Case IH WD1903 - (55.100.AB[05]) - WIRE HARNESS. FM, NON-DRAPER OPTION (CONT.) (55) - ELECTRICAL SYSTEMS
56
55.100.aa
55.100.ab 04
29.204.ab
57
58
31.220.ag
60
50.100.ap
76
54
55.100.ab 04
69
79
55.634.ad
70
64
35.415.aa 01
77
55.100.ab 04
63
65
75
52
61
1
55.100.aa
66
55
62
64
78
68
73
55.100.ab 04
59
74
50.100.ap
55.100.aa
80
53
55.100.ab 06
29.100.ad
67
72
55.100.ab 06
31.220.ag
55.100.ab 04
51
29.100.ad
71

Артикул

Название

Примечание

Количество

1

47373086

WIRE HARNESS

FM, Incl 51 - 80 (Cont.)

1шт.

51

225065C1

ELEC CONNECTOR,3.00 - 5.00mm

GND-001, Left Rear Frame, X-305

2шт.

52

86982786

ELEC. TERMINAL PIN,14 - 16 SAE

GND-001, Left Rear Frame, X-296

1шт.

53

86010402

CLAMP,12.7mm, Coat, 10.3mm Bolt Hole, P Type

1шт.

54

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

1шт.

55

86521605

FLANGE NUT,5/16"-18, Cl 5

1шт.

56

87695580

ELEC CONNECTOR,Female, 3 Pole

Y-049 Solenoid, Propulsion Forward, X-064

1шт.

56

84068583

PLUG,12 - 16 Ga, White

Y-049 Solenoid, Propulsion Forward, X-064

1шт.

56

84074639

LOCKING TAB,Wedge Lock

Y-049 Solenoid, Propulsion Forward, X-064

1шт.

56

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

Y-049 Solenoid, Propulsion Forward, X-064

2шт.

57

87695582

ELEC CONNECTOR,Female, 2 Pole

Y-050 Solenoid, Propulsion Reverse, X-065

1шт.

57

84074638

LOCKING TAB,Locking Wedge, Green

Y-050 Solenoid, Propulsion Reverse, X-065

1шт.

57

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

Y-050 Solenoid, Propulsion Reverse, X-065

2шт.

58

87693732

LOCKING TAB,Wedge Lock

B-060 Sensor, Swash Plate Angle, Right (Rear), X-079

1шт.

58

87693712

ELEC CONNECTOR,Female, 3 Cavities

B-060 Sensor, Swash Plate Angle, Right (Rear), X-079

1шт.

58

87688852

ELEC. TERMINAL PIN

B-060 Sensor, Swash Plate Angle, Right (Rear), X-079

3шт.

58

87689629

SEAL

B-060 Sensor, Swash Plate Angle, Right (Rear), X-079

3шт.

59

87693732

LOCKING TAB,Wedge Lock

B-059 Sensor, Swash Plate Angle, Left (Front), X-078

1шт.

59

87693712

ELEC CONNECTOR,Female, 3 Cavities

B-059 Sensor, Swash Plate Angle, Left (Front), X-078

1шт.

59

87688852

ELEC. TERMINAL PIN

B-059 Sensor, Swash Plate Angle, Left (Front), X-078

3шт.

59

87689629

SEAL

B-059 Sensor, Swash Plate Angle, Left (Front), X-078

3шт.

60

86010402

CLAMP,12.7mm, Coat, 10.3mm Bolt Hole, P Type

1шт.

61

86521553

BOLT,Hex, 5/16" - 18 x 1", Gr 5

1шт.

62

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

1шт.

63

86521605

FLANGE NUT,5/16"-18, Cl 5

1шт.

64

853764

CLAMP,7.9mm, Coat, 8.7mm Bolt Hole, P Type

2шт.

65

84364894

BOOT

Boot, H-002 Horn, X-144

1шт.

65

87690511

ELEC CONNECTOR

Recepticle, H-002 Horn, X-144

1шт.

66

84364894

BOOT

Boot, H-002 Horn, X-145

1шт.

66

87690511

ELEC CONNECTOR

Recepticle, H-002 Horn, X-145

1шт.

67

84159859

ELEC CONNECTOR,Female, 10 Cavities

S-101 Switch, Header Tilt, Apron, X-091

1шт.

67

87694668

ELEC CONNECTOR

S-101 Switch, Header Tilt, Apron, X-091

3шт.

67

82035902

PLUG

S-101 Switch, Header Tilt, Apron, X-091

1шт.

67

87691478

SEAL

S-101 Switch, Header Tilt, Apron, X-091

3шт.

68

87695582

ELEC CONNECTOR,Female, 2 Pole

E-009 Lamp, Base Unit, Flashing, Left, X-326

1шт.

68

84074638

LOCKING TAB,Locking Wedge, Green

E-009 Lamp, Base Unit, Flashing, Left, X-326

1шт.

68

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

E-009 Lamp, Base Unit, Flashing, Left, X-326

2шт.

69

86628564

CLAMP,31.7mm, Coat, 10.3mm Bolt Hole, P Type

1шт.

70

86521613

BOLT,Hex, 3/8" - 16 x 1", Gr 5

1шт.

71

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

1шт.

72

86521606

FLANGE NUT,Hex, 3/8" - 16, Gr 5

1шт.

73

87692855

CONTACT HOUSING,Male, 2 Cavities

B-001 Sensor, Ground Speed, Left, X-178

1шт.

73

87692856

CABLE TERMINAL

B-001 Sensor, Ground Speed, Left, X-178

2шт.

73

87680701

SEAL

B-001 Sensor, Ground Speed, Left, X-178

2шт.

74

853764

CLAMP,7.9mm, Coat, 8.7mm Bolt Hole, P Type

1шт.

75

87697530

ELEC CONNECTOR

M-010 Motor, Intake Air Pressurization, X-039

1шт.

75

87693724

TERMINAL CONNECTOR,Tin, 1.00 - 2.00mm

M-010 Motor, Intake Air Pressurization, X-039

2шт.

76

84068583

PLUG,12 - 16 Ga, White

FM to AC Pass Thru Connector, Manual & ATC, X-033

1шт.

76

87695623

ELEC. TERMINAL PIN

FM to AC Pass Thru Connector, Manual & ATC, X-033

10шт.

76

87704524

ELEC CONNECTOR,Pin, Size 12

FM to AC Pass Thru Connector, Manual & ATC, X-033

2шт.

77

86628564

CLAMP,31.7mm, Coat, 10.3mm Bolt Hole, P Type

1шт.

78

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

1шт.

79

86521606

FLANGE NUT,Hex, 3/8" - 16, Gr 5

1шт.

80

87644909

WIRE CONNECTOR,Female, 3 Pins

B-055 Sensor, Lift Arm Positon, Left, X-075

1шт.

80

87692858

ELEC CONNECTOR,Male

B-055 Sensor, Lift Arm Positon, Left, X-075

1шт.

80

87686742

PLUG

B-055 Sensor, Lift Arm Positon, Left, X-075

3шт.

80

87692880

CABLE TERMINAL

B-055 Sensor, Lift Arm Positon, Left, X-075

3шт.

80

87680701

SEAL

B-055 Sensor, Lift Arm Positon, Left, X-075

3шт.

Выбрано товаров: 58
