Запчасти Case IH WD1903 (55.100.AB[04]) - WIRE HARNESS. FM, NON-DRAPER OPTION (CONT.) (55) - ELECTRICAL SYSTEMS

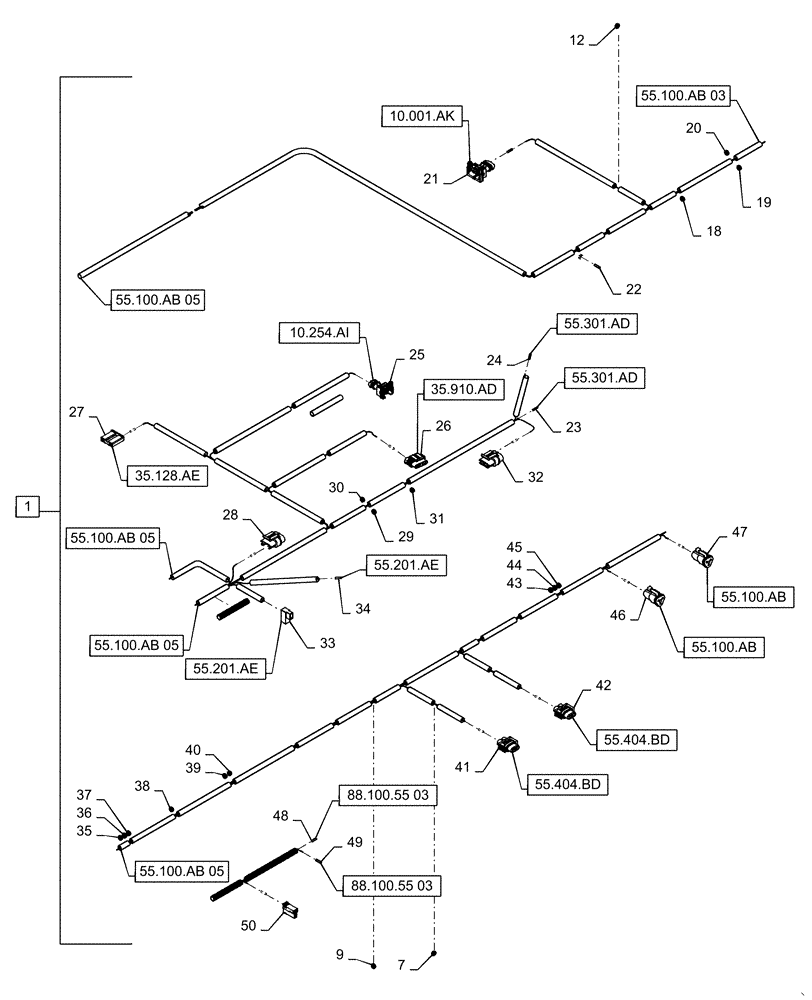

Схема запчастей Case IH WD1903 - (55.100.AB[04]) - WIRE HARNESS. FM, NON-DRAPER OPTION (CONT.) (55) - ELECTRICAL SYSTEMS
55.100.ab 03
10.001.ak
18
47
32
1
39
55.100.ab 05
7
55.404.bd
55.404.bd
35.128.ae
42
10.254.ai
48
88.100.55 03
40
55.100.ab 05
55.301.ad
55.100.ab 05
50
46
22
24
55.201.ae
29
37
33
20
35
55.100.ab 05
27
23
34
88.100.55 03
12
25
26
9
28
44
55.301.ad
30
55.201.ae
43
36
19
45
55.100.ab
38
55.100.ab
21
49
35.910.ad
31
41

Артикул

Название

Примечание

Количество

1

47373086

WIRE HARNESS

FM, Incl 18 - 50, (Cont.)

1шт.

18

86512388

CLAMP,19.05mm ID, 10.41mm Bolt Hole, P Type

1шт.

19

86521606

FLANGE NUT,Hex, 3/8" - 16, Gr 5

1шт.

20

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

1шт.

21

84806091

WIRE CONNECTOR,Female, 3 Pin

S-088 Switch, H20 In Fuel, X-548

1шт.

21

47625618

LOCKING TAB,Wedge Lock

Backshell, S-088 Switch, H20 In Fuel, X-548

1шт.

21

84607244

ELEC. TERMINAL PIN,Female, 0.5 - 1 mm2

S-088 Switch, H20 In Fuel, X-548

3шт.

21

87691478

SEAL

S-088 Switch, H20 In Fuel, X-548

1шт.

21

84607242

SEAL

S-088 Switch, H20 In Fuel, X-548

2шт.

22

225065C1

ELEC CONNECTOR,3.00 - 5.00mm

GND-008, Right Rear Frame, X-011

1шт.

23

225072C1

CONNECTOR, ELEC

GND-001, Alternator, X-212

1шт.

24

446658

TERMINAL CONNECTOR

G-001, Alternator, X-148

1шт.

25

84607243

ELEC CONNECTOR,Female, 2 Cavities

S-009 Switch, Air Fuel, X-061

1шт.

25

87702681

TERMINAL

S-009 Switch, Air Fuel, X-061

2шт.

25

87691478

SEAL

S-009 Switch, Air Fuel, X-061

2шт.

26

8769489

Connector Housing, Y-011 Solenoid, PTO Reverse/Forward, X-106

1шт.

26

87689643

CLIP,4.8mm ID

Y-011 Solenoid, PTO Reverse/Forward, X-106

1шт.

26

87688852

ELEC. TERMINAL PIN

Y-011 Solenoid, PTO Reverse/Forward, X-106

4шт.

26

87689629

SEAL

Y-011 Solenoid, PTO Reverse/Forward, X-106

4шт.

27

87709400

ELEC. TERMINAL PIN

S-010 Switch, Hydraulic Charge Pressure, X-139

2шт.

28

87688712

WIRE CONNECTOR,Female

F-056 Fuse, Engine Control Module (6 Cyl), X-017

1шт.

28

87689644

FUSE,30A, Blade/Uni

F-056 Fuse, Engine Control Module (6 Cyl), X-017

1шт.

28

87688863

CAP

F-056 Fuse, Engine Control Module (6 Cyl), X-017

1шт.

28

87688851

TERMINAL

Terminal, F-056 Fuse, Engine Control Module (6 Cyl), X-017

2шт.

29

9827902

CLAMP,25.4mm, Coat, 10.3mm Bolt Hole, P Type

1шт.

30

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

1шт.

31

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

1шт.

32

87688712

WIRE CONNECTOR,Female

F-057 Fuse, Alternator "W" Line, X-020

1шт.

32

87688863

CAP

F-057 Fuse, Alternator "W" Line, X-020

1шт.

32

83933689

FUSE,10A, Red

F-057 Fuse, Alternator "W" Line, X-020

1шт.

32

87688848

TERMINAL

F-057 Fuse, Alternator "W" Line, X-020

2шт.

33

84120017

ELEC CONNECTOR

Connector, M-008 Motor, Starter, X-348

1шт.

33

47627601

Terminal, M-008 Motor, Starter, X-348

1шт.

34

225065C1

ELEC CONNECTOR,3.00 - 5.00mm

M-008 Motor, Starter, X-016

1шт.

35

600427

CLAMP,25.4mm, Coat, 8.7mm Bolt Hole, P Type

1шт.

36

86521605

FLANGE NUT,5/16"-18, Cl 5

1шт.

37

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

1шт.

38

86010402

CLAMP,12.7mm, Coat, 10.3mm Bolt Hole, P Type

2шт.

39

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

2шт.

40

86521606

FLANGE NUT,Hex, 3/8" - 16, Gr 5

2шт.

41

82003123

MULTIPOLE CONNECTOR,Female, 2 Pole

E-022 Lamp, Stubble, Light, X-283

1шт.

41

87690602

LOCK

E-022 Lamp, Stubble, Light, X-283

1шт.

41

87680656

CONTACT

E-022 Lamp, Stubble, Light, X-283

2шт.

41

87680701

SEAL

E-022 Lamp, Stubble, Light, X-283

2шт.

42

87690602

LOCK

E-024 Lamp, Work, Left Rear, X-225

1шт.

42

82003123

MULTIPOLE CONNECTOR,Female, 2 Pole

E-024 Lamp, Work, Left Rear, X-225

1шт.

42

87680656

CONTACT

E-024 Lamp, Work, Left Rear, X-225

2шт.

42

87680701

SEAL

E-024 Lamp, Work, Left Rear, X-225

2шт.

43

86010402

CLAMP,12.7mm, Coat, 10.3mm Bolt Hole, P Type

1шт.

44

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

1шт.

45

86521605

FLANGE NUT,5/16"-18, Cl 5

1шт.

46

87695580

ELEC CONNECTOR,Female, 3 Pole

Tail Lamp Pass Thru Left, X-118

1шт.

46

84074639

LOCKING TAB,Wedge Lock

Tail Lamp Pass Thru Left, X-118

1шт.

46

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

Tail Lamp Pass Thru Left, X-118

1шт.

46

86500036

TERMINAL,Female, Nickel, 0.75 - 2mm

Tail Lamp Pass Thru Left, X-118

2шт.

47

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

Tail Lamp Pass Thru Right, X-119

1шт.

47

84074639

LOCKING TAB,Wedge Lock

Tail Lamp Pass Thru Right, X-119

1шт.

47

87695580

ELEC CONNECTOR,Female, 3 Pole

Tail Lamp Pass Thru Right, X-119

1шт.

47

86500036

TERMINAL,Female, Nickel, 0.75 - 2mm

Tail Lamp Pass Thru Right, X-119

2шт.

48

87697629

ELEC. TERMINAL PIN,Female, 18 - 14 SAE

S-043 Switch, Fuel Door Light, X-196

1шт.

49

87697629

ELEC. TERMINAL PIN,Female, 18 - 14 SAE

S-043 Switch, Fuel Door Light, X-345

1шт.

50

82944110

ELEC CONNECTOR,Female, 2 Cavities

J-007 Jack, Service Light, Left, X-255

1шт.

50

87690511

ELEC CONNECTOR

Terminal, J-007 Jack, Service Light, Left, X-255

2шт.

Выбрано товаров: 63
