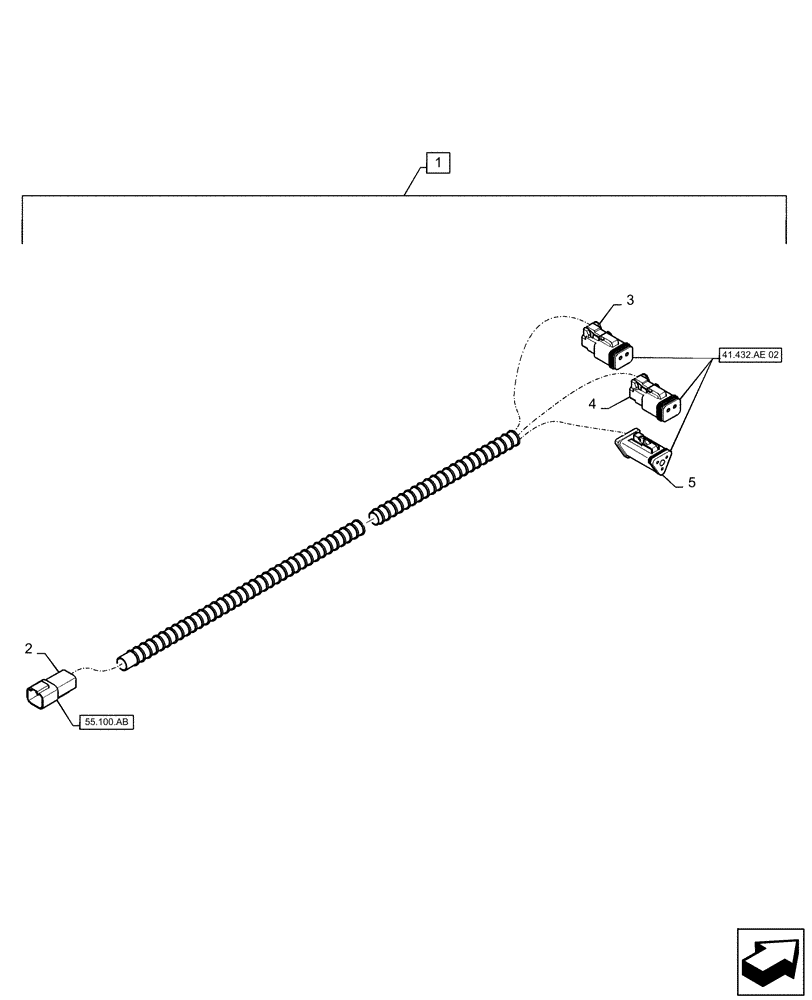

Запчасти Case IH WD1903 (55.100.AB[02]) - WIRE HARNESS & CONNECTOR, AUTOGUIDANCE (55) - ELECTRICAL SYSTEMS

1

47444819

WIRE HARNESS

Autoguidance

1шт.

2

87694152

CONTACT HOUSING,Male, 6 Pole

FM to AG Pass Thru, X-042

1шт.

2

87694147

WEDGE,Locking, Green

FM to AG Pass Thru, X-042

1шт.

2

84068583

PLUG,12 - 16 Ga, White

FM to AG Pass Thru, X-042

1шт.

2

87695623

ELEC. TERMINAL PIN

FM to Ag Pass Thru, X-042

5шт.

3

87695582

ELEC CONNECTOR,Female, 2 Pole

Y-062 Solenoid, Autoguidance Proportional, Steer Left, X-395

1шт.

3

84074638

LOCKING TAB,Locking Wedge, Green

Y-062 Solenoid, Autoguidance Proportional, Steer Left, X-395

1шт.

3

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

Y-062 Solenoid, Autoguidance Proportional, Steer Left, X-395

2шт.

4

84277533

ELEC CONNECTOR,Fem, 2 Cavities/Pins

Y-074 Solenoid, Autoguidance Enable (Blue), X-397

1шт.

4

84277220

LOCKING TAB,Wedge Lock

Y-074 Solenoid, Autoguidance Enable (Blue), X-397

1шт.

4

84277237

TERMINAL

Y-074 Solenoid, Autoguidance Enable (Blue), X-397

2шт.

5

87695580

ELEC CONNECTOR,Female, 3 Pole

Y-063 Solenoid, Autoguidance Proportional, Steer Right, X-396

1шт.

5

84074639

LOCKING TAB,Wedge Lock

Y-063 Solenoid, Autoguidance Proportional, Steer Right, X-396

1шт.

5

84068583

PLUG,12 - 16 Ga, White

Y-063 Solenoid, Autoguidance Proportional, Steer Right, X-396

1шт.

5

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

Y-063 Solenoid, Autoguidance Proportional, Steer Right, X-396

2шт.
