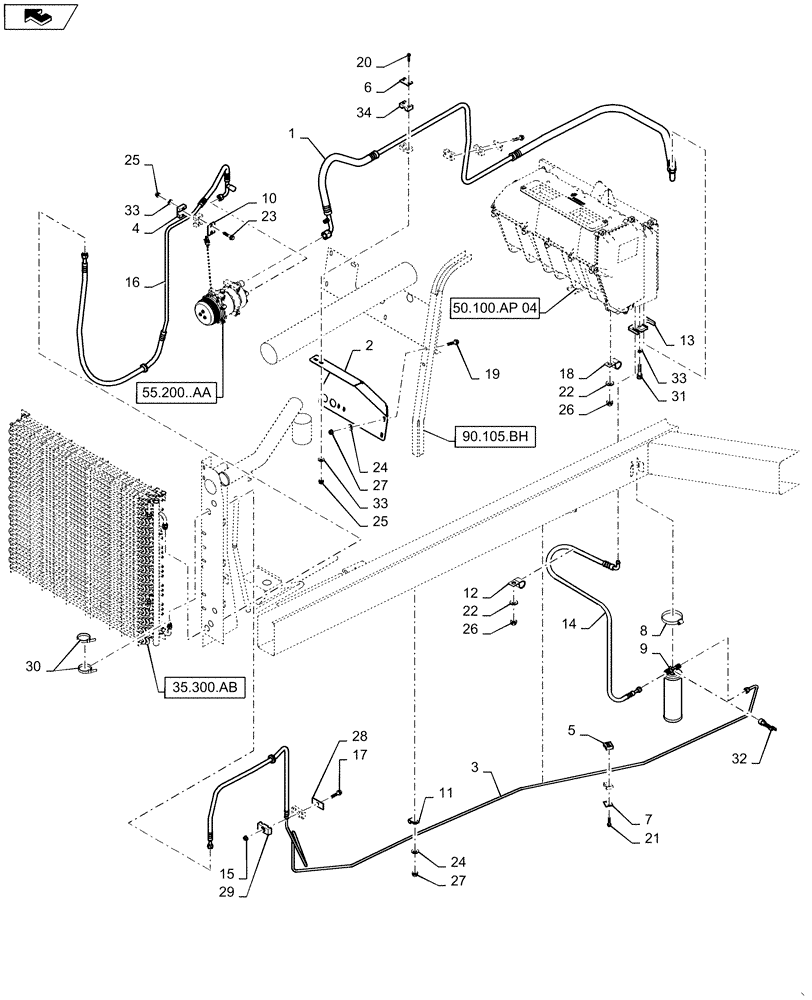

Запчасти Case IH WD1903 (50.200.BY) - A/C & HEATER HOSES, DELUXE (50) - CAB CLIMATE CONTROL

1

87528332

HOSE ASSY.

Low Side, Compressor To Evap

1шт.

2

47386894

BRACKET

1шт.

3

47396115

A/C HOSE

High Side, From Receiver Drier To Condensor

1шт.

4

86900724

CLAMP

4шт.

5

87603907

CLAMP

1шт.

6

86900727

COVER

2шт.

7

87022336

PLATE

1шт.

8

513307

CLAMP

1шт.

9

87587685

RECEIVER-DRYER,Air Conditioner

1шт.

10

86900726

COVER

1шт.

11

853765

CLAMP,7.9mm, Coat, 10.3mm Bolt Hole, P Type

2шт.

12

86594406

CLAMP,15.9mm, Coat, 10.3mm Bolt Hole, P Type

2шт.

13

87754245

MOUNTING PLATE

1шт.

14

87473405

HOSE ASSY.

High Side, From Evap To Receiver Drier

1шт.

15

9626645

NUT

1шт.

16

87549498

HOSE

Low Side, From Evap To Compressor

1шт.

17

88346

BOLT,Hex, 5/16" - 18 x 2 1/2", Gr 5

1шт.

18

86628564

CLAMP,31.7mm, Coat, 10.3mm Bolt Hole, P Type

1шт.

19

88546

BOLT,Hex, 3/8" - 16 x 2 1/4", Gr 5

2шт.

20

87405

BOLT,Hex, 1/4" - 20 x 2 1/4", Gr 5

4шт.

21

280112

BOLT,Hex, 1/4" - 20 x 1-1/2", Gr 5

2шт.

22

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

2шт.

23

280164

BOLT,Hex, 1/4" - 20 x 1 3/4", Gr 5

2шт.

24

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

4шт.

25

86624020

FLANGE NUT,Flg, 1/4"-20.G5

6шт.

26

86521605

FLANGE NUT,5/16"-18, Cl 5

2шт.

27

86521606

FLANGE NUT,Hex, 3/8" - 16, Gr 5

4шт.

28

87053042

PLATE

1шт.

29

87105732

CLAMP

1шт.

30

263117

CABLE TIE,292.1mm L, Nylon, Black

2шт.

31

14305221

HEX SOC SCREW,M6 x 16mm, Full Thd, Cl 8.8

1шт.

32

9849562

PRESSURE SWITCH

High Pressure Cutout

1шт.

33

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

7шт.

34

86900723

CLAMP

2шт.
