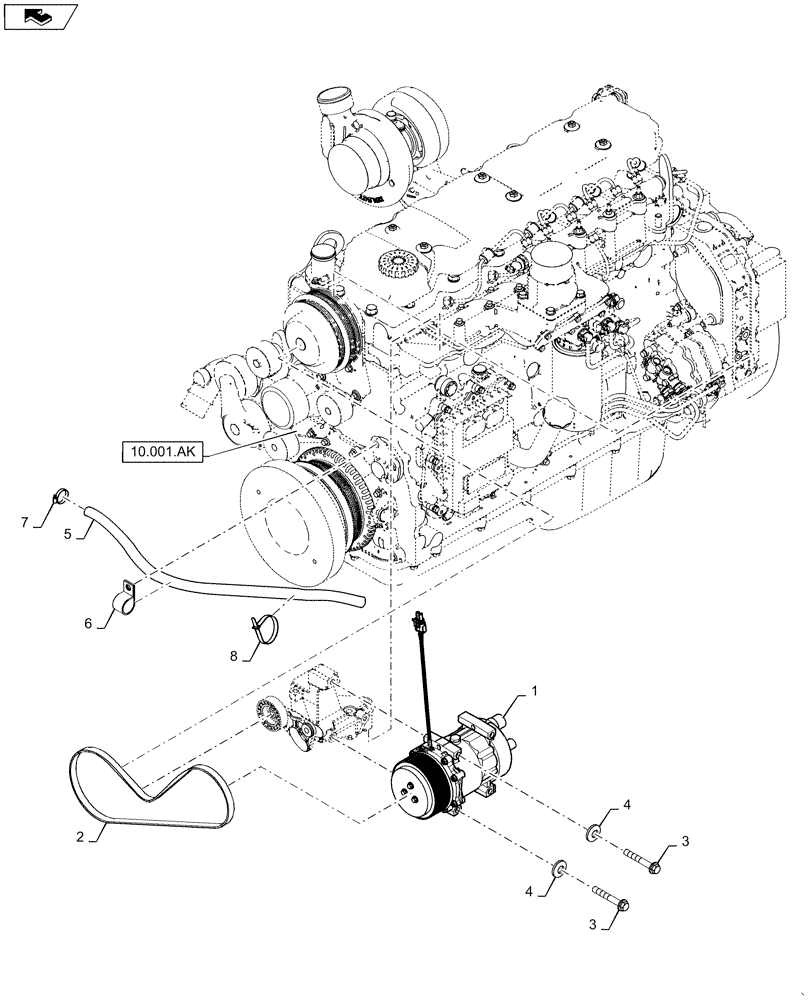

Запчасти Case IH WD1903 (50.200.AA) - A/C COMPRESSOR, MOUNTING PARTS, WATER PUMP & RELATED PARTS (50) - CAB CLIMATE CONTROL

1

87649534

AIRCOND. COMPRESSOR

No Service Parts, Order Complete

1шт.

1

87649534R

REMAN-A/C COMPRESSOR

1шт.

1

87649534C

CORE-DISTRIB KIT-FUE

Return Number

1шт.

2

87382455

BELT,14.24 mm W, 1090mm L, 4 Ribs

A/C Drive, 6 Cyl

1шт.

2

87709228

BELT,14.24 mm W, 4 Ribs

A/C Drive, 4 Cyl

1шт.

3

412215

BOLT,Hex, M8 x 1.25 x 100mm, Cl 8.8

3шт.

4

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

1шт.

5

86516356

FUEL HOSE,0.38" ID, SAE 30R7

Cut To 2 Ft. (24 in.)

1шт.

6

9706748

CLAMP,15.9mm, Coat, 8.7mm Bolt Hole, P Type

1шт.

7

86625041

HOSE CLAMP,11.2mm - 19.8mm

1шт.

8

86566989

CABLE TIE,208mm L

1шт.
