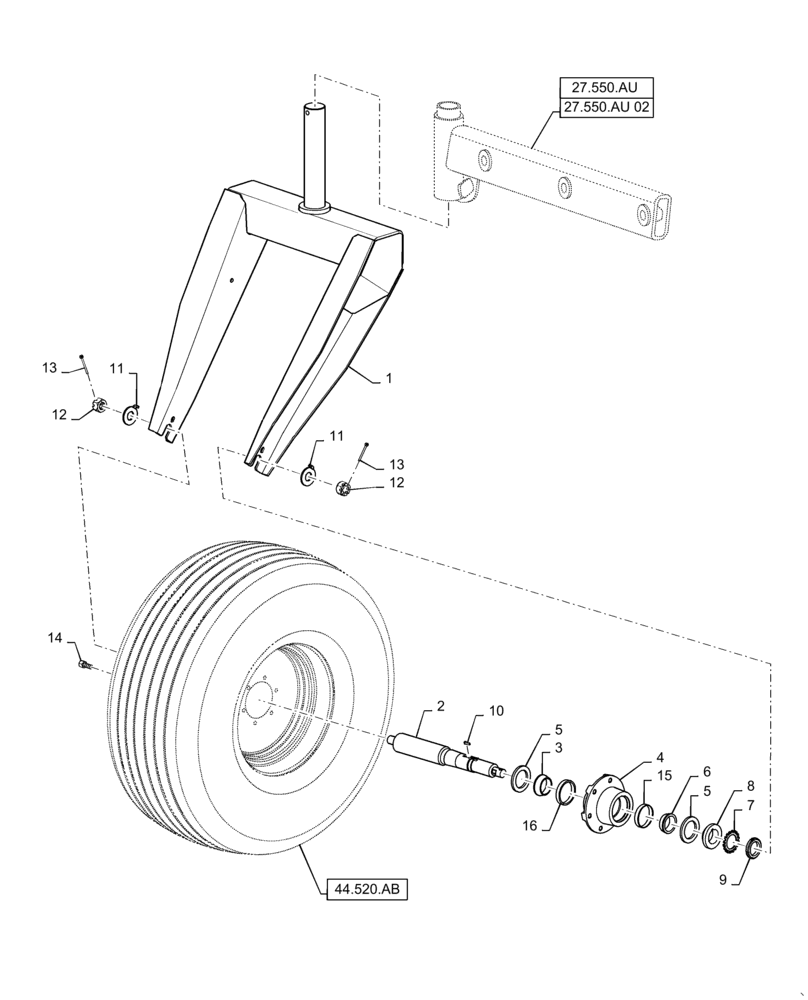

Запчасти Case IH WD1903 (44.901.AA) - FORK, REAR AXLE, WHEEL ASSY (44) - WHEELS

1

47504558

FORK

2шт.

2

84519522

SPINDLE

Spindle

2шт.

3

199954

BEARING CONE,50mm ID x 21.5mm W

2шт.

4

NSS

NOT SOLD SEPARAT

Hub

2шт.

Service w/ Painted Spindle Assy, 47463688

1шт.

5

245856

OIL SEAL,57.15mm ID x 82.75mm OD x 6.76mm Thk

4шт.

6

67527

ROLLER BEARING,45.26mm ID x 19.84mm W

2шт.

7

84519543

SPACER

2шт.

8

58153

BEARING WASHER,45.52mm ID x 70.2mm OD x 1.8mm Thk

2шт.

9

222008

BEARING LOCK NUT

2шт.

10

87473

KEY

2шт.

11

84519596

RETAINER

Tailwheel Spindle

4шт.

12

86020752

SLOTTED NUT

4шт.

13

87400

COTTER PIN,3/16" x 2"

4шт.

14

198056

WHEEL BOLT,1/2" - 20 x 1.031"

12шт.

15

67526

BEARING CUP,77.7mm OD x 15.08mm Thk

1шт.

16

199955

BEARING CUP,82mm OD x 17mm W

1шт.
