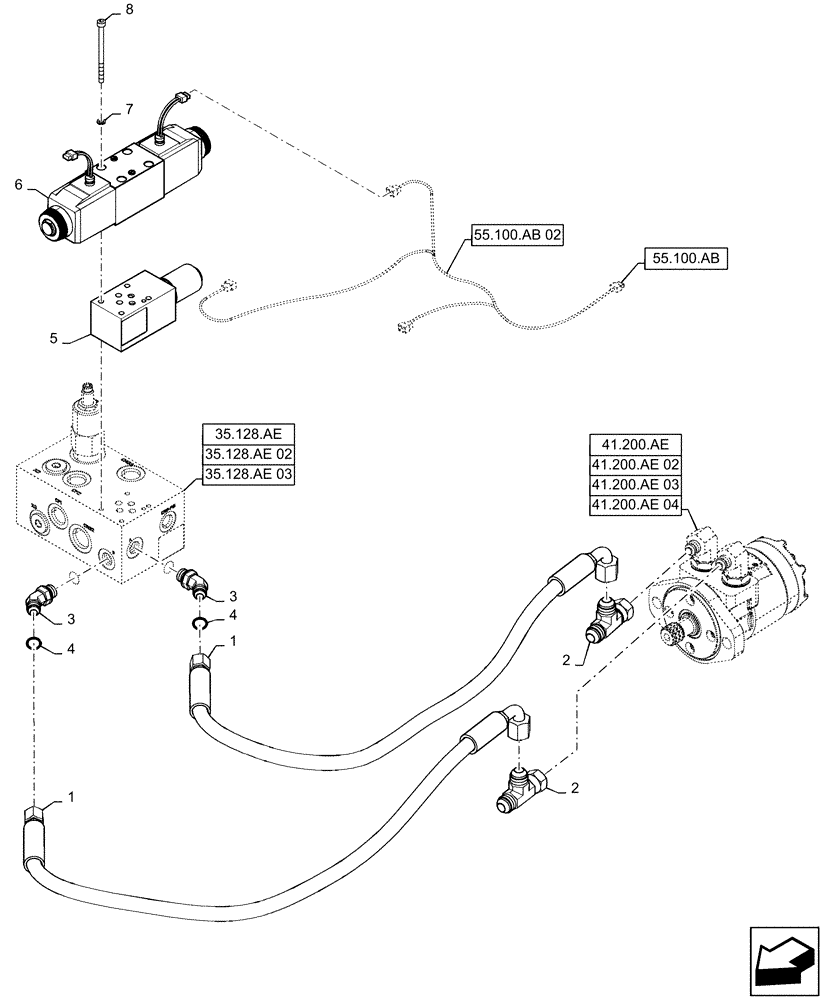

Запчасти Case IH WD1903 (41.432.AE[02]) - VALVE, AUTOGUIDANCE READY (41) - STEERING

1

47566289

HYDRAULIC HOSE

Prop Cylinder and Autoguidance

2шт.

2

86511870

TEE,3/4" - 16 JIC x 3/4" - 16 JIC x 3/4" - 16 JIC

To Steering Valve

2шт.

3

330346

45 ELBOW,45 Degree, 9/16"-18, 37 Degree x 9/16"-18, O-Ring

Incl 4

2шт.

4

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

4шт.

5

47410023

HYDRAULIC MANIFOLD

D03, Enable Valve

1шт.

6

47430933

HYDRAULIC MANIFOLD

Autoguidance

1шт.

7

87698783

WASHER,5.3mm ID x 8.9mm OD x 1.2mm Thk

4шт.

8

47454925

SCREW

4шт.
