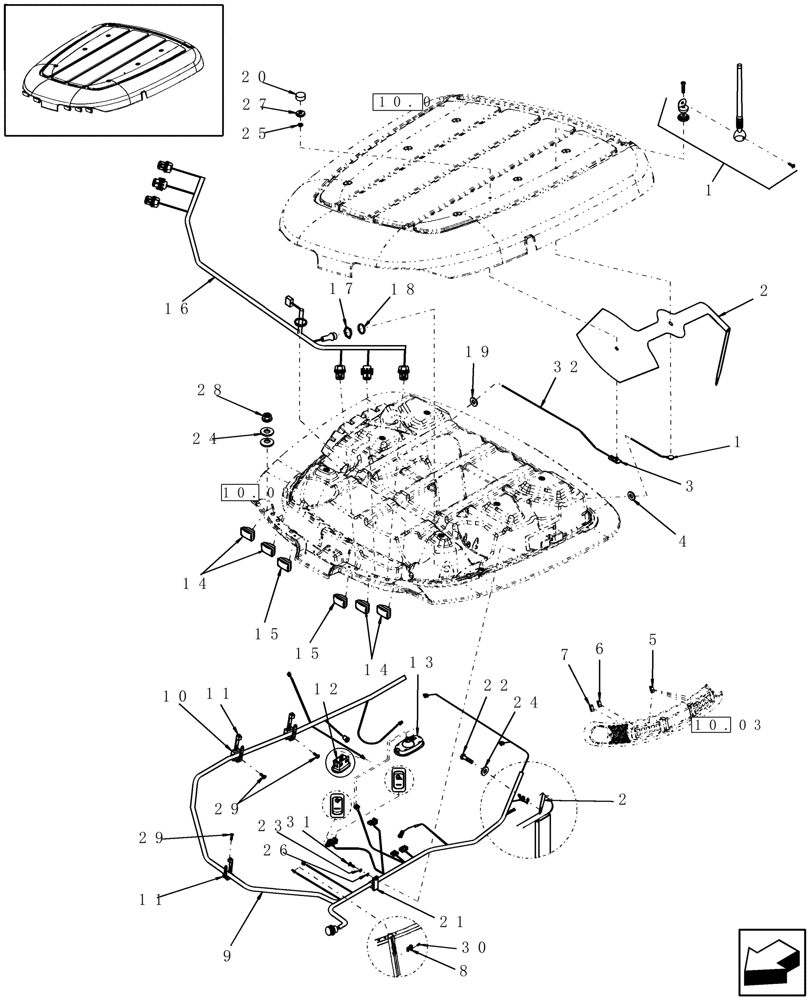

Запчасти Case IH WD1903 (06.09[1]) - ELECTRICAL, CAB ROOF, FROM YCG667001 (06) - ELECTRICAL

1

9846820

ANTENNA

Components NSS

1шт.

2

87019598

SHEET

Ground

1шт.

3

86591733

ASSEMBLY

1шт.

4

86500924

GROMMET

1шт.

5

84320263

BLANK-OFF PLUG

5шт.

6

87023726

LIGHT SWITCH

Rocker, Front Work Lamp

1шт.

7

87023727

LIGHT SWITCH

Rocker, Road Lamp

1шт.

8

9990447

LIGHT SWITCH

Interior

1шт.

9

84515761

WIRE HARNESS

Roof

1шт.

10

86590413

BASE,15.87mm W x 22.22mm OAL x 9.9mm Thk

Base, Wire Tie

3шт.

11

86566989

CABLE TIE,208mm L

3шт.

12

84067961

CEILING LAMP

LED

1шт.

13

86622305

CEILING LAMP

Includes: Bulb

1шт.

86616249

BULB,12V, 10W

1шт.

14

86705725

LAMP,Halogen, 12V, 50W, Clear

Flood; Includes: Bulb

4шт.

139119A1

BULB,#886, 12V, 50W

4шт.

15

84564892

WORK LAMP

Trap; Includes: Bulb

2шт.

139119A1

BULB,#886, 12V, 50W

2шт.

16

84515762

WIRE HARNESS

Light

1шт.

17

86619907

NUT,1.6875"-18

Plastic

1шт.

18

636665

LOCK WASHER,43.18mm ID x 52.68mm OD x 1.57mm Thk

1шт.

19

84607475

GROMMET,M6 x 36.5mm OD x 25mm Thk

1шт.

20

86591730

DUST CAP

1шт.

21

700514

CLAMP,3.8mm, Coat, M8 Bolt

0.94 x 0.31 Bolt

1шт.

22

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

1шт.

23

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

1шт.

24

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

4шт.

25

86591734

O-RING,0.07" Thk x 0.864" ID, -20, Cl 7, 75 Duro

1шт.

26

140040

WASHER,6.6mm ID x 22mm OD x 2mm Thk

1шт.

27

86591735

NUT

1шт.

28

9823743

FLANGE NUT,Flg, 5/16"-18

6шт.

29

412475

SCREW,Phil Pan Hd, M4 x 16mm, Cl 4.8, Full Thd

3шт.

30

9990936

SCREW,Oval CSK, M8 x 13mm

Sheet Metal, #8 x 13

1шт.

31

84073086

LOCK BOLT,Pan HD, M6 x 20mm

1шт.

32

86591736

WIRE CONNECTOR

1шт.
