Запчасти Case IH WD1903 (06.08[2]) - ELECTRICAL, CAB (06) - ELECTRICAL

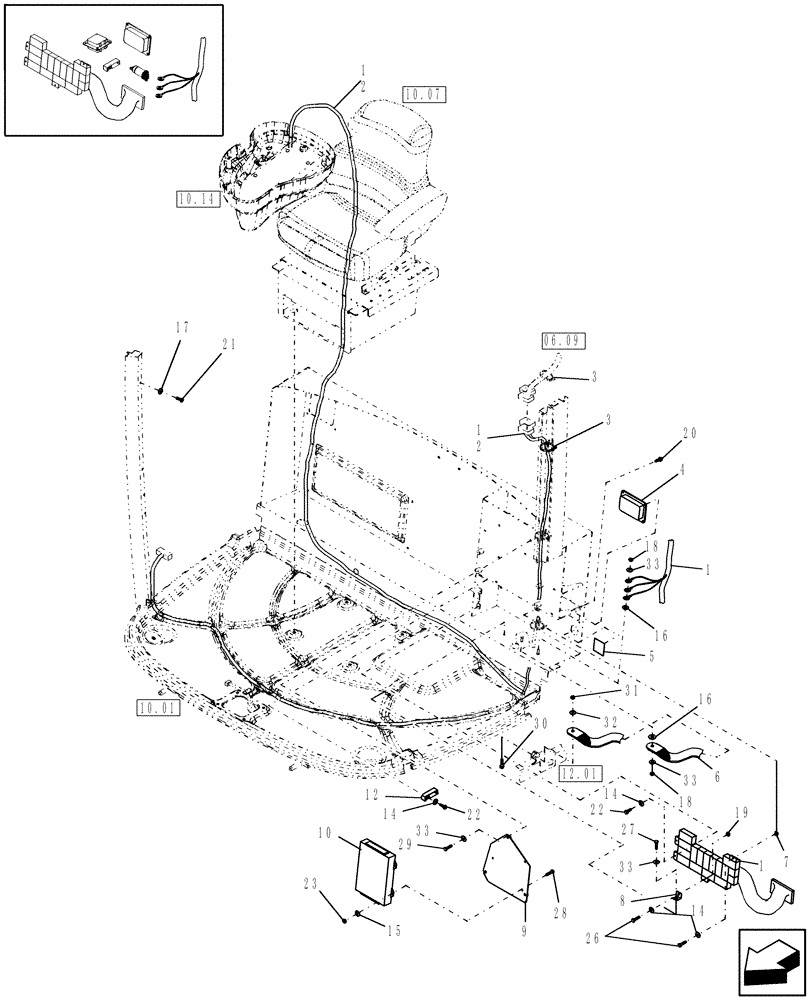

Схема запчастей Case IH WD1903 - (06.08[2]) - ELECTRICAL, CAB (06) - ELECTRICAL
33
33
8
22
14
3
19
7
21
18
3
1
6
12.01
10.01
06.09
10.14
10.07
14
33
16
18
15
9
1
2
32
12
16
33
28
4
29
1
17
1
14
5
20
26
23
27
2
31
22
30
10

Артикул

Название

Примечание

Количество

1

87389472

WIRE HARNESS

Main,CM4

1шт.

For Serviced Components, See Ref. 34 - 46

1шт.

Non-Draper Option

1шт.

P.I.N. Y8N661151 & Prior

1шт.

1

87477084

WIRE HARNESS

Main, CM4

1шт.

For Serviced Components, See Ref. 34 - 46

1шт.

Non-Draper Option

1шт.

P.I.N. Y8G661152 & After

1шт.

1

84317827

WIRE HARNESS

Main, CM4

1шт.

Non-Draper Option

1шт.

2

87389485

WIRE HARNESS

Main, CD4

1шт.

Factory Draper Option

1шт.

For Serviced Components, See Ref. 34 - 46

1шт.

P.I.N. Y8N661151 & Prior

1шт.

2

87477088

WIRE HARNESS

Main, CD4

1шт.

Factory Draper Option

1шт.

For Serviced Components, See Ref. 34 - 46

1шт.

P.I.N. Y8G661152 & After

1шт.

2

84200225

WIRE HARNESS

Main, CD4

1шт.

Factory Draper Option

1шт.

TY2010 & After (Expected Implementation August 2009)

1шт.

2

84317830

WIRE HARNESS

Main, CD4

1шт.

Draper Option

1шт.

3

323597

CABLE TIE,165mm OAL x 9mm Thk

CABLE STRAP

4шт.

4

87016212

FLANGE

Connector

1шт.

5

86585168

COVER

1шт.

6

87035431

GROUND STRAP

1шт.

7

9628100

NUT,M4 x 0.7

1шт.

10

87388792

ECU

(XCM), Years: -01-JUN-08

1шт.

87686360R

REMAN ELECT CONTROL

WD1203 (9/07-), Reman for New P/N 87388792

1шт.

87686360C

CORE-ELECTRONIC CONT

Return Number

1шт.

10

87686360

ECU

ECU, Start Year: 01-JUN-08

1шт.

87686360R

REMAN ELECT CONTROL

WD1203 (9/07-)

1шт.

87686360C

CORE-ELECTRONIC CONT

Return Number

1шт.

12

86705351

RESISTOR

50 ohm

1шт.

14

322355

BELLEVILLE WASHER,M4 Bolt Size x 10mm OD x 0.9mm Thk

5шт.

15

322356

BELLEVILLE WASHER,M5 Bolt Size x 12mm OD x 1.85mm Thk

3шт.

16

48917

WASHER

15/32" ID

2шт.

17

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

5шт.

18

425-105

NUT,5/16"-18, G5

2шт.

19

825-1404

NUT,M4, Cl 8

1шт.

20

87040922

SELF-TAP SCREW,Washer Hd, #12-24 x 5/8"

4шт.

21

86016585

SCREW,Phil Pan Hd, M6 x 20mm, Cl 4.8

M6 x 20

5шт.

22

87338734

SCREW,Hex Wshr Hd, M4 x 16mm

Screw, Self-Tapping, HWH, M4 x .7 x 16

3шт.

23

829-1405

NUT,M5, Cl 10

3шт.

27

614-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

1шт.

28

614-5016

BOLT,Hex, M5 x 0.8 x 16mm, Cl 8.8, Full Thd

3шт.

29

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

3шт.

30

458-620

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

1шт.

31

231-5346

FLANGE NUT,Flg, 3/8"-16

1шт.

32

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

1шт.

33

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

6шт.

34

84058092

CONTACT HOUSING,120 Ohm Resistor

Housing

1шт.

Not Shown

1шт.

35

9811773

FUSE,10A, Micro, Red

5шт.

Not Shown

1шт.

36

87389483

FUSE

40 AMP

1шт.

Not Shown

1шт.

37

9623775

FUSE,5 Amp

1шт.

Not Shown

1шт.

38

9804895

FUSE,20A, Micro, Yellow

5шт.

Not Shown

1шт.

39

84090658

FUSE,Lt Blue, 15 Amp

1шт.

Not Shown

1шт.

40

9623776

FUSE,7.5A, Micro, Brown

1шт.

Not Shown

1шт.

41

86537972

RELAY

Bosch A 332 202 544

4шт.

Not Shown

1шт.

42

86509590

RELAY

Micro, Module

18шт.

Not Shown

1шт.

43

774735

DIODE,6A

Style 30, 6 AMP

1шт.

Not Shown

1шт.

44

87040745

AUTOM.CIRCUITBREAKER

Bussmann, 50 AMP

4/3шт.

Not Shown

1шт.

45

86610929

CIRCUIT BREAKER

15 AMP

1шт.

Not Shown

1шт.

46

87022597

MODULE

Diode

1шт.

Not Shown

1шт.

47

87589225

FUSE,70A

70 AMP

1шт.

Выбрано товаров: 79
