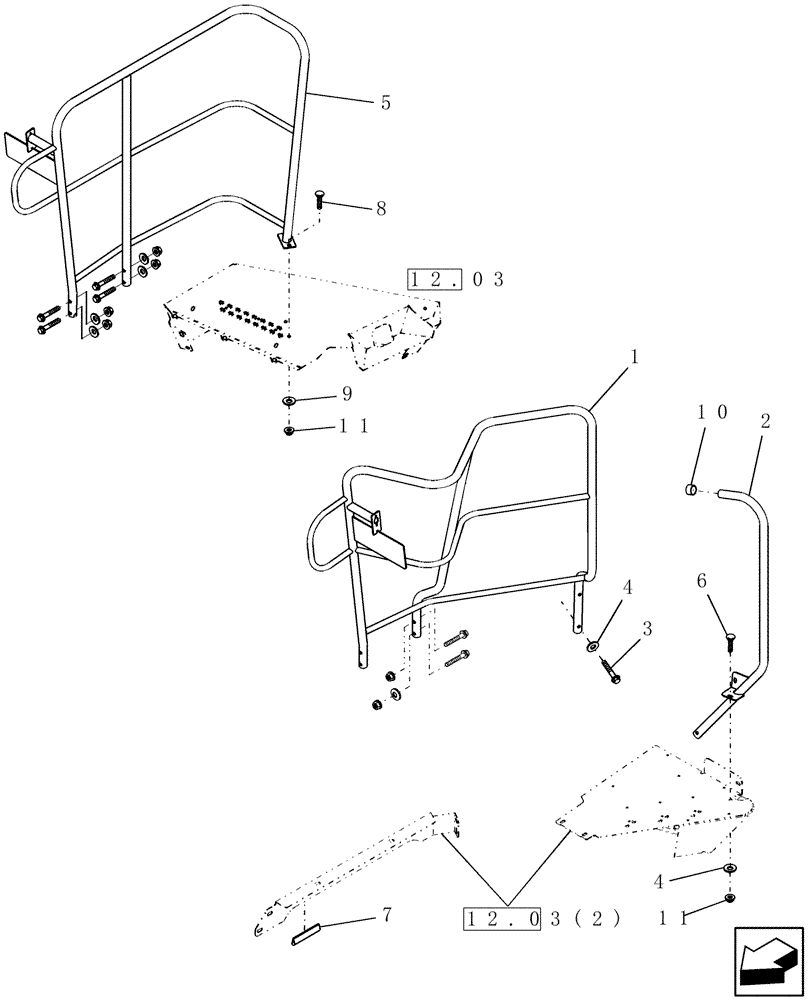

Запчасти Case IH WD1903 (12.04) - DECK RAILING (12) - MAIN FRAME

1

87344465

HANDRAIL

Left Hand

1шт.

2

87388406

HANDRAIL

1шт.

3

88546

BOLT,Hex, 3/8" - 16 x 2 1/4", Gr 5

2шт.

4

80702

WASHER,0.44" ID x 1" OD x 0.08" Thk

3шт.

5

87344479

HANDRAIL

Right Hand

1шт.

6

88682

CARRIAGE BOLT,Short Nk, 3/8"-16 x 1", Gr 5

1шт.

7

86516805

SOFT TRIM,31-3/4" L

L = 31-3/4"

1шт.

Cut to fit

1шт.

8

280430

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 3/4", Gr 5, Full Thd

2шт.

9

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

1шт.

10

87354387

CAP

1шт.

11

80755

COTTER PIN,1/8" OD x 1" L

1шт.
