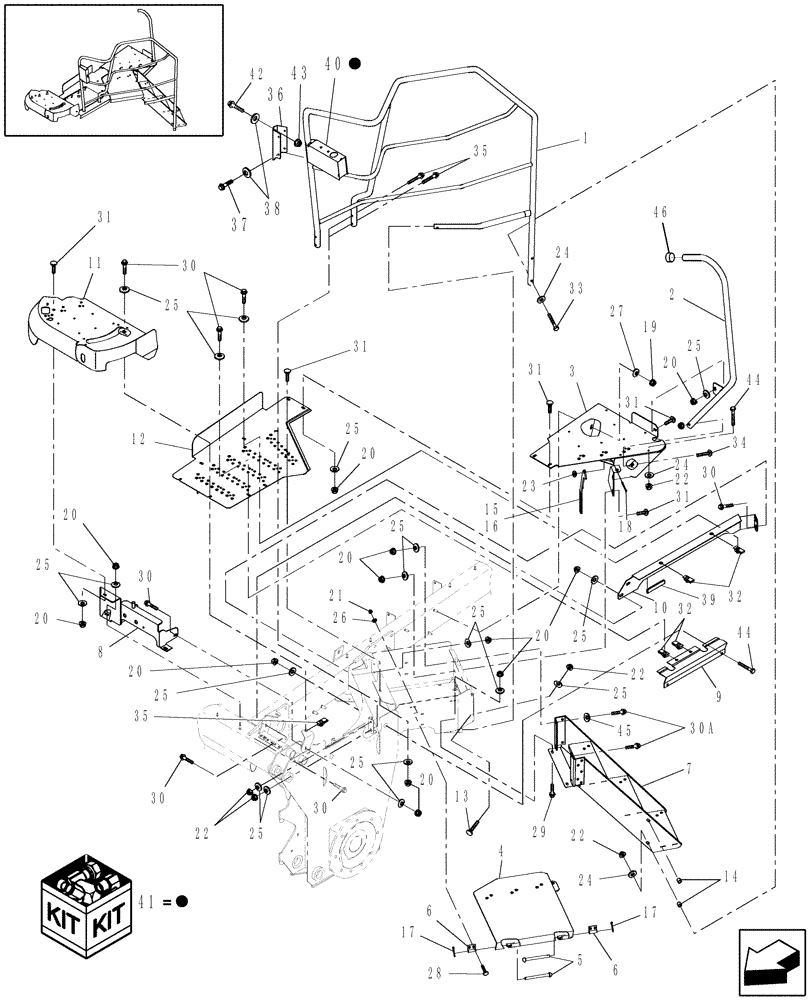

Запчасти Case IH WD1903 (12.03) - DECK, LH & LADDER (12) - MAIN FRAME

1

87344465

HANDRAIL

Left Hand

1шт.

2

87022832

RAIL ASSY.

1шт.

3

87040763

PLATFORM

Left Hand

1шт.

4

87040757

COVER

1шт.

5

633830

RIVET

Drilled

2шт.

6

86624791

HINGE

2шт.

7

87368829

LADDER

1шт.

7

84268977

LADDER

, Start Serial: YAG663138

1шт.

8

87022854

SUPPORT ASSY.

Left Hand

1шт.

9

87041531

SUPPORT

Cover

1шт.

10

87047442

SUPPORT

1шт.

11

87022828

COVER

Left Hand

1шт.

11

84263015

SUPPORT

Left Hand

1шт.

12

87042482

PLATFORM

Left Hand

1шт.

13

280744

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 2 1/2", Gr 5

2шт.

14

86629655

SPACER

2шт.

15

87011698

LEVER

1шт.

16

357545

HANDLE GRIP

1шт.

17

432-88

COTTER PIN,1/8" x 1/2"

2шт.

18

432-816

COTTER PIN,1/8" x 1"

1шт.

19

425-288

FLANGE NUT,Flg, 1/2"-13, G5

3шт.

20

425-286

FLANGE NUT,Flg, 3/8"-16, G5

26шт.

21

425-284

FLANGE NUT,Flg, 1/4"-20.G5

4шт.

22

231-5346

FLANGE NUT,Flg, 3/8"-16

8шт.

23

495-11053

WASHER,1/2", SAE

1шт.

24

80702

WASHER,0.44" ID x 1" OD x 0.08" Thk

5шт.

25

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

33шт.

26

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

4шт.

27

86513238

LOCK WASHER,.515” ID x 1.070” OD x .120” TK

Belleville, 1/2"

3шт.

28

434-412

CARRIAGE BOLT,Sht Sq Nk, 1/4" - 20 x 3/4", Gr 5

4шт.

29

458-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

2шт.

30

86521613

BOLT,Hex, 3/8" - 16 x 1", Gr 5

12шт.

30a

86523775

BOLT,Hex, 3/8" - 16 x 1 1/2", Gr 5

4шт.

31

434-612

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5

8шт.

32

86539811

SPRING NUT

Timmerman, 3/8"-16

6шт.

33

413-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

6шт.

34

280518

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 2 1/4", Gr 5

1шт.

35

413-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

4шт.

36

87369113

BRACKET

1шт.

37

87872

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

4шт.

38

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

5шт.

39

NH291525

EDGE

Strip, Sealing

1шт.

Cut to fit

1шт.

40

NSS

NOT SOLD SEPARAT

Support, Lamp

1шт.

41

87362300

KIT

Includes: Ref. 40, Plus Retroreflective Tape 86547781, 86547782, & 86547783

1шт.

42

9636711

BOLT,Hex, 5/16 - 18" x 2", Gr 5

1шт.

43

145458

SERRATED NUT,5/16"-18 GR 5 ZND

5шт.

44

80280503

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5, Full Thd

3шт.

45

65319

WASHER,13.1mm ID x 25.4mm OD x 3.68mm Thk

6шт.

46

87354387

CAP

1шт.
