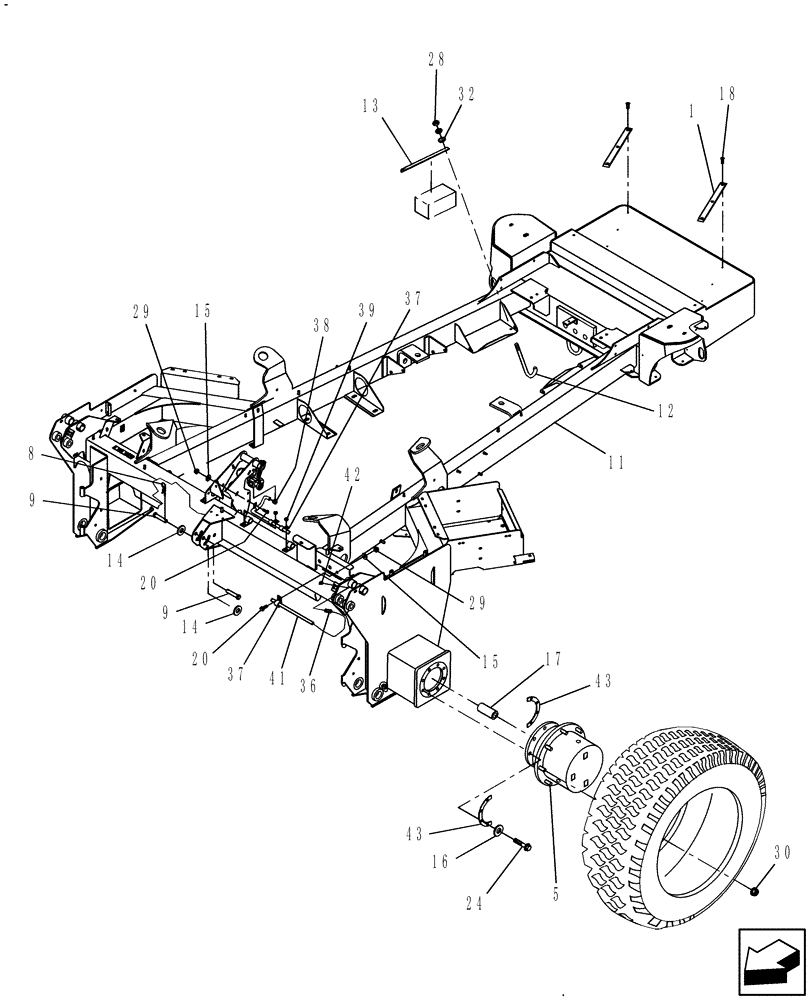

Запчасти Case IH WD1903 (12.01[2]) - MAIN FRAME, FROM PIN YAG663565 (12) - MAIN FRAME
![Схема запчастей Case IH WD1903 - (12.01[2]) - MAIN FRAME, FROM PIN YAG663565 (12) - MAIN FRAME](https://partsell.ru/storage/images/caseih/970406.png)
№
Артикул
Название
Примечание
Количество
1
86567543
WEAR STRIP
2шт.
5
84210040
GEARBOX
Torgue Hub, Planetary Gearbox 41.42
2шт.
5
84233962
GEARBOX
Torque Hub, Planetary Gearbox 41:43, Start Year: 01-JUL-11
2шт.
10 Bolt Wheel
1шт.
8
86000109
COTTER PIN
2шт.
9
84206494
PIN,19.05mm OD x 108.07mm L
2шт.
11
87632779
FRAME
WD1203, Cab Suspension Only
1шт.
11
87632781
FRAME
WD1203, Axle & Cab Suspension
1шт.
11
87523226
FRAME
WD1903 & WD2303, Cab Suspension Only
1шт.
11
87523224
FRAME
WD1903 & WD2303, Axle & Cab Suspension
1шт.
12
798180
BOLT
4шт.
13
794967
SUPPORT
2шт.
14
86511191
WASHER,0.81" ID x 2" OD x 0.15" Thk
2шт.
16
140048
BELLEVILLE WASHER,M16 Bolt Size x 32mm OD x 2.8mm Thk
16шт.
17
87059922
COUPLING
2шт.
Use With 8 Bolt Wheel
1шт.
17
84291751
SPLINED COUPLING,13T
, Start Year: 01-JUL-11
2шт.
10 Bolt Wheel
1шт.
18
86616032
SELF-TAP SCREW,Pan HD, 1/4" - 20 x 1"
6шт.
20
86521552
BOLT,Hex, 5/16" - 18 x 3/4", Gr 5
2шт.
24
86505999
BOLT,Hex, 5/8" - 11 x 2", Gr 5
, Start Serial: YAG663882
16шт.
24
9627896
BOLT,Hex, 5/8" - 11 x 1 3/4", Gr 5
, Start Year: 01-JUL-11
16шт.
10 Bolt Wheel
1шт.
Use With 8 Hole Wheel Prior to PIN YAG663882
1шт.
28
9628503
NUT,3/8"-16, G5
8шт.
29
86521605
FLANGE NUT,5/16"-18, Cl 5
2шт.
30
280569
FLANGE NUT
Qty. [16] 8 Bolt Wheel, [20] 10 Bolt Wheel
1шт.
31
9790660
FLANGE NUT,Flg, 3/4"-16, G8
20шт.
32
80702
WASHER,0.44" ID x 1" OD x 0.08" Thk
4шт.
37
853764
CLAMP,7.9mm, Coat, 8.7mm Bolt Hole, P Type
4шт.
38
48564
90 ELBOW,90 Degree, 11/16" x 5/8", 1/8" NPT
1шт.
39
9823743
FLANGE NUT,Flg, 5/16"-18
2шт.
41
86629566
PLASTIC-RUBBER TUBE,2.8mm ID x 4.8mm OD
6 Feet
1шт.
42
84303
LUBE NIPPLE,1/8"-27 NPT x 1" lg, Fem
1шт.
43
84393727
BRACKET
Planetary Spacer, Start Serial: YAG663284
4шт.
Use With 8 Bolt Wheel
1шт.
Выбрано товаров: 38
