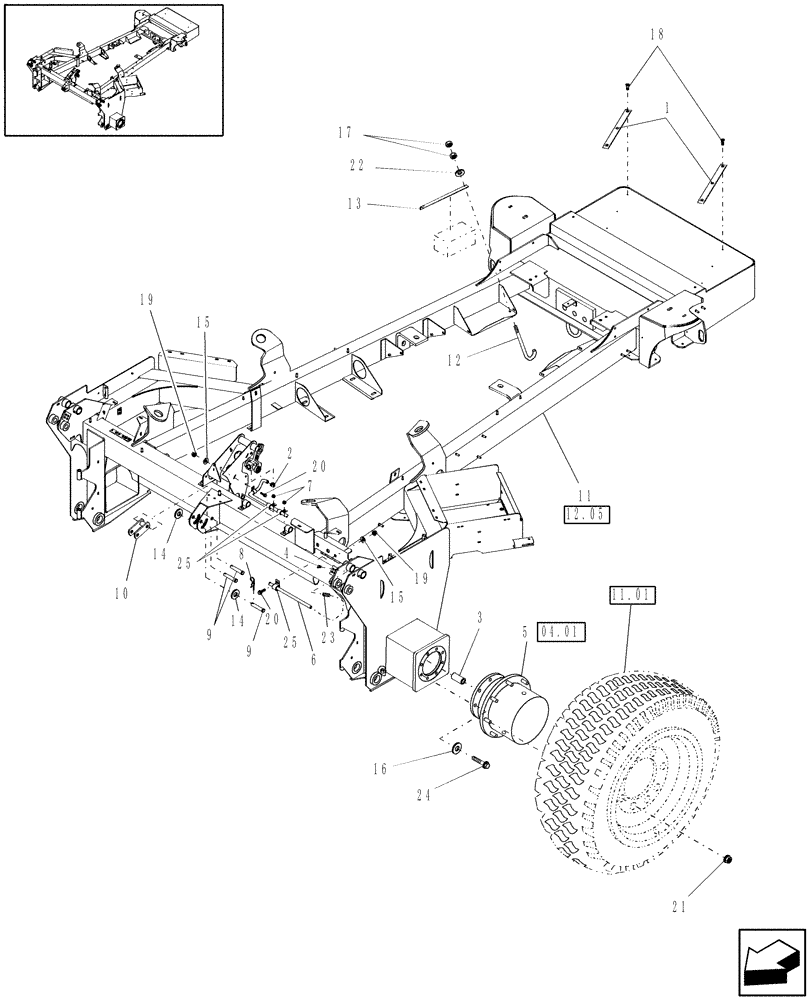

Запчасти Case IH WD1903 (12.01[1]) - MAIN FRAME (12) - MAIN FRAME

1

86567543

WEAR STRIP

WD1903 & WD2303

2шт.

1

86567543

WEAR STRIP

WD1203

4шт.

2

48564

90 ELBOW,90 Degree, 11/16" x 5/8", 1/8" NPT

1шт.

3

87059922

COUPLING

2шт.

4

86050275

LUBE NIPPLE

Female, 1/8" Pipe Thread

1шт.

5

87059921

PLANETARY REDUCER

Power Wheel, 42.41:1, for Breakdown see Fig. 04.01

2шт.

5

84210040

GEARBOX

Torgue Hub, Planetary Gearbox 41.42

2шт.

From PIN YAG663284

1шт.

6

87014413

TUBE,4.80 mm OD x 1850 mm L

1850 mm

1шт.

Cut to fit

1шт.

7

231-5345

FLANGE NUT,Flg, 5/16"-18

2шт.

8

86000109

COTTER PIN

3шт.

9

86510381

PIN

3шт.

10

86625549

CONNECTING LINK

1шт.

11

87632779

FRAME

WD1203, Cab Suspension Only

1шт.

11

87632781

FRAME

WD1203, Axle & Cab Suspension

1шт.

11

87523226

FRAME

WD1903 & WD2303, Cab Suspension Only

1шт.

11

87523224

FRAME

WD1903 & WD2303, Axle & Cab Suspension

1шт.

12

798180

BOLT

J, 3/8"-16 x 10", Battery Hold Down

2шт.

13

794967

SUPPORT

1шт.

14

495-21081

WASHER,3/4"

2шт.

15

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

2шт.

16

86729275

LOCK WASHER,5/8 0.634 CST ZND

16шт.

17

425-106

NUT,3/8"-16, Cl 5

8шт.

18

86616032

SELF-TAP SCREW,Pan HD, 1/4" - 20 x 1"

WD1903 & WD2303

6шт.

18

86616032

SELF-TAP SCREW,Pan HD, 1/4" - 20 x 1"

WD1203

12шт.

19

425-285

FLANGE NUT,Flg, 5/16"-18, G5

2шт.

20

458-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

2шт.

21

280569

FLANGE NUT

Nut, Flange, 5/8" UNF

18шт.

22

495-21044

WASHER,3/8"

4шт.

23

11787

FITTING,3/8"-24 Fem x 1/8" NPT

Includes: 13362 Sleeve & 13367 Nut

1шт.

24

9627896

BOLT,Hex, 5/8" - 11 x 1 3/4", Gr 5

16шт.

25

853764

CLAMP,7.9mm, Coat, 8.7mm Bolt Hole, P Type

4шт.
