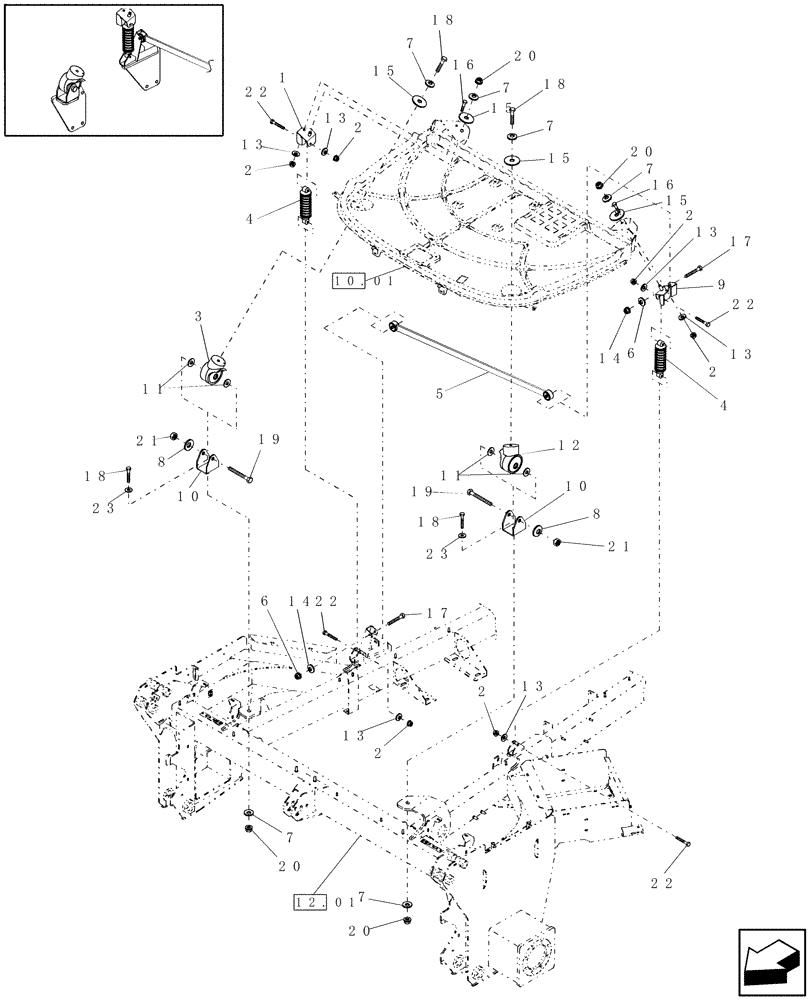

Запчасти Case IH WD1903 (10.30) - CAB SUSPENSION (10) - CAB

1

86638083

BRACKET

1шт.

2

425-286

FLANGE NUT,Flg, 3/8"-16, G5

6шт.

3

86638055

SUPPORT ASSY.

RH

1шт.

4

87367004

SHOCK ABSORBER

2шт.

5

84132288

STABILIZER BAR

Includes: (2) Ref. 24

1шт.

6

425-288

FLANGE NUT,Flg, 1/2"-13, G5

2шт.

7

140048

BELLEVILLE WASHER,M16 Bolt Size x 32mm OD x 2.8mm Thk

6шт.

8

322359

BELLEVILLE WASHER,M20 Bolt Size x 40mm OD x 3.2mm Thk

2шт.

9

86638082

BRACKET

LH

1шт.

10

86638052

CHANNEL

2шт.

11

495-21081

WASHER,3/4"

4шт.

12

86638054

SUPPORT ASSY.

LH

1шт.

13

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

6шт.

14

86513238

LOCK WASHER,.515” ID x 1.070” OD x .120” TK

Belleville, 1/2"

2шт.

15

333040

WASHER,16.5mm ID x 49mm OD x 6mm Thk

4шт.

16

458-616

BOLT,Hex Flg, 3/8" - 16 x 1", Gr 5

2шт.

17

413-840

BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 5

2шт.

18

413-1028

BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 5

4шт.

19

413-1272

BOLT,Hex, 3/4" - 10 x 4-1/2", Gr 5

2шт.

20

425-2810

FLANGE NUT,Flg, 5/8"-11, G5

4шт.

21

425-1012

NUT,3/4"-10, G5

2шт.

22

86575418

BOLT,Hex, 3/8" - 16 x 2 1/4", Gr 8

4шт.

23

130358

WASHER,16.28mm ID x 38.35mm OD x 4.11mm Thk

2шт.

24

86508970

BUSHING

2шт.
