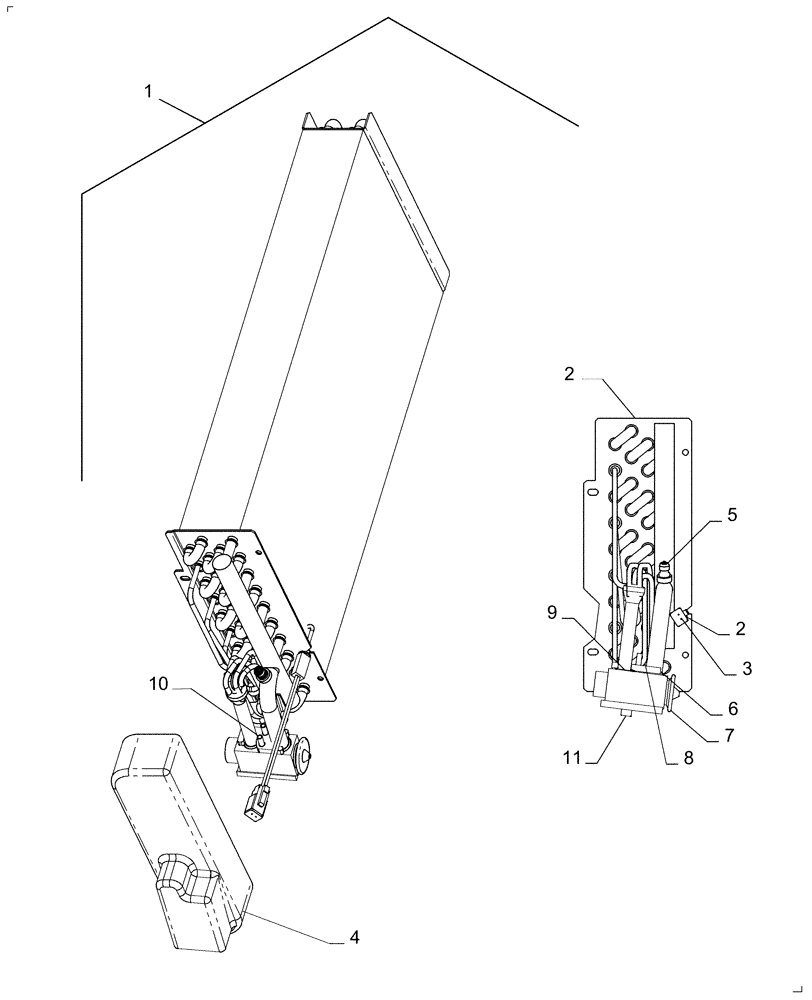

Запчасти Case IH WD1903 (10.19[3]) - EVAPORATOR, FROM PIN Y8G661200 (10) - CAB

1

87754243

EVAPORATOR

1шт.

2

84320222

GROMMET,3.75mm ID x 8.5mm OD

1шт.

3

87754238

SENSOR

1шт.

4

PL

PROCURE LOCALLY

Tape, Insulation

1шт.

5

1250594C2

CORE

Valve

1шт.

6

9827059

O-RING,1.78mm Thk x 14mm ID, 70 Duro

1шт.

7

82023542

VALVE, THERMAL EXPAN

1шт.

8

84144154

MOUNTING PLATE

1шт.

9

9827058

O-RING,0.07" Thk x 0.426" ID, -13, Cl 5, 70 Duro

(.426" ID x .070" Thk)

1шт.

10

14358921

HEX SOC SCREW,M5 x 50mm, Cl 8.8

2шт.

11

14305221

HEX SOC SCREW,M6 x 16mm, Full Thd, Cl 8.8

1шт.
