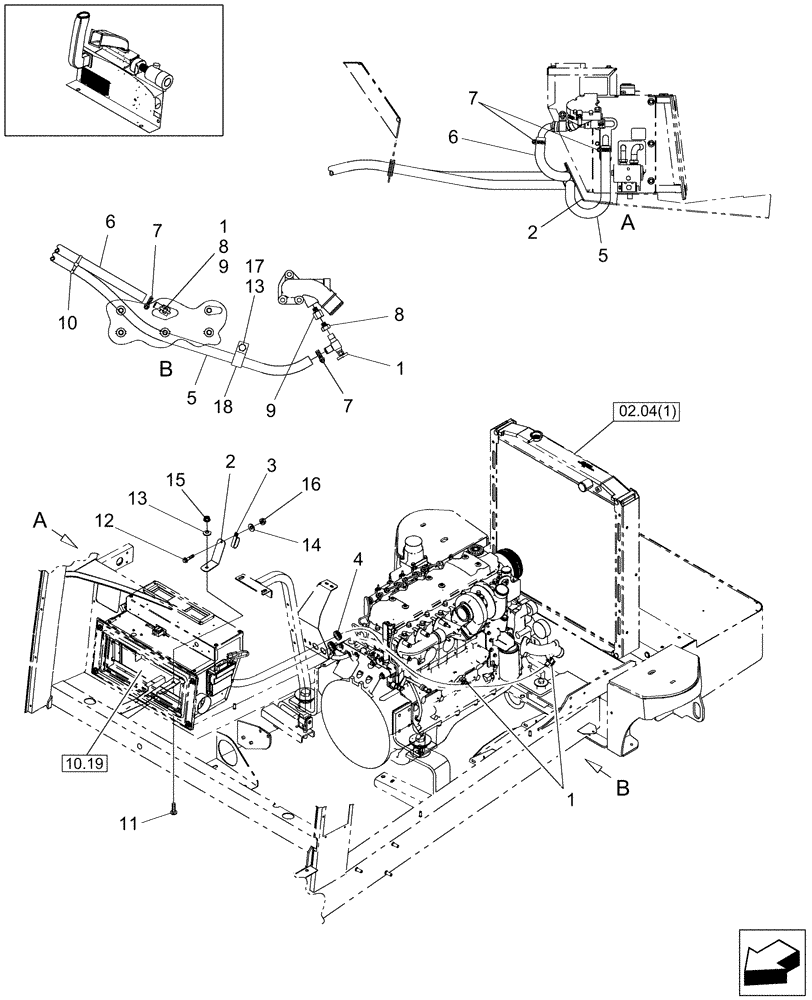

Запчасти Case IH WD1903 (10.17) - HEATER LINES (10) - CAB

1

83961305

VALVE

Heater Water Control

2шт.

2

87367603

ANGLE

1шт.

3

600427

CLAMP,25.4mm, Coat, 8.7mm Bolt Hole, P Type

1шт.

4

173011

GROMMET,1” ID x 1.750” OD x .500” Tk

2шт.

5

86997299

HEATER HOSE,15.5mm ID x 15240mm L

Supply, 50' Length (11.5' Required)

3.5шт.

Cut to fit

1шт.

6

86997298

HEATER HOSE,15.5mm ID x 6200mm OAL

Return, 50' Length (11.5' Required)

3.5шт.

Cut to fit

1шт.

7

87000223

HOSE CLAMP,22mm ID Static x 15mm W, Spring Type

4шт.

8

87572

BUSHING

2шт.

9

87012296

HYD CONNECTOR

2шт.

10

249730

SECURING STRAP,8" L

1шт.

11

280430

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 3/4", Gr 5, Full Thd

1шт.

12

86521612

BOLT,Hex, 5/16" - 18 x 1 1/4", Gr 5

1шт.

13

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

2шт.

14

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

1шт.

15

86521606

FLANGE NUT,Hex, 3/8" - 16, Gr 5

1шт.

16

86521605

FLANGE NUT,5/16"-18, Cl 5

1шт.

17

9804266

BOLT,Hex, M12 x 25mm, Cl 8.8, Full Thd

1шт.

18

86000810

CLAMP,27mm, Coat, 13.5mm Bolt Hole, P Type

1шт.
