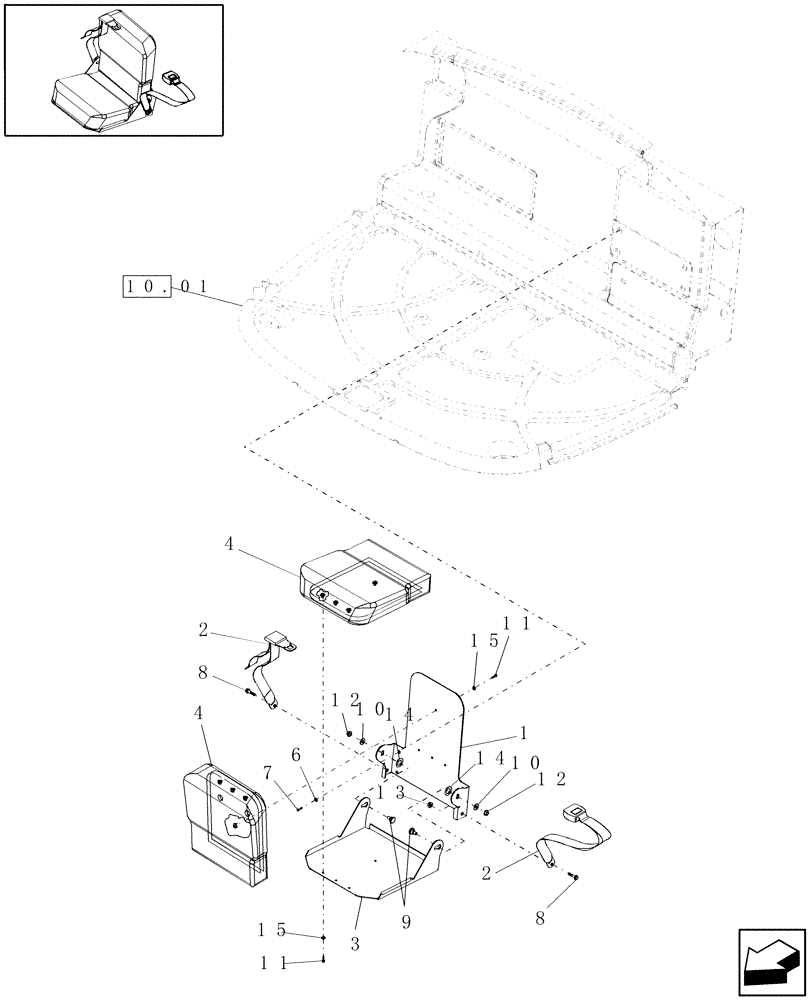

Запчасти Case IH WD1903 (10.12) - INSTRUCTORS SEAT (10) - CAB

1

87031932

SEAT BACK

1шт.

2

86530940

SAFETY BELT ,48.00 mm W

1шт.

3

87031934

SEAT SUPPORT

1шт.

4

87045196

CUSHION

2шт.

P.I.N. Y8N661151 & Prior

1шт.

4

87757877

CUSHION

2шт.

P.I.N. Y8G661152 & After

1шт.

5

86640438

WARNING DECAL

Instructional Seat, English

1шт.

Not Shown; Located Inside Of Door

1шт.

6

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

4шт.

7

814-10045

BOLT,Hex, M10 x 1.5 x 45mm, Cl 8.8

4шт.

8

844-12025

BOLT,Hvy Hex, M12 x 25mm, Cl 8.8

2шт.

9

84442012

WHEEL SHAFT

2шт.

10

495-21044

WASHER,3/8"

2шт.

11

88146

BOLT,Hex, 1/4" - 20 x 1", Gr 5

8шт.

12

86619802

FLANGE NUT,M10 x 1.5, Cl 8

Lock, Flg, CL 8, M10

2шт.

13

86619803

FLANGE NUT

Flg, CL 8, M12

2шт.

14

50600

WASHER,22mm ID x 38mm OD x 1.5mm Thk

2шт.

15

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

8шт.
