(10.01) - CAB FRAME

Запчасти Case IH WD1903 (10.01) - CAB FRAME (10) - CAB

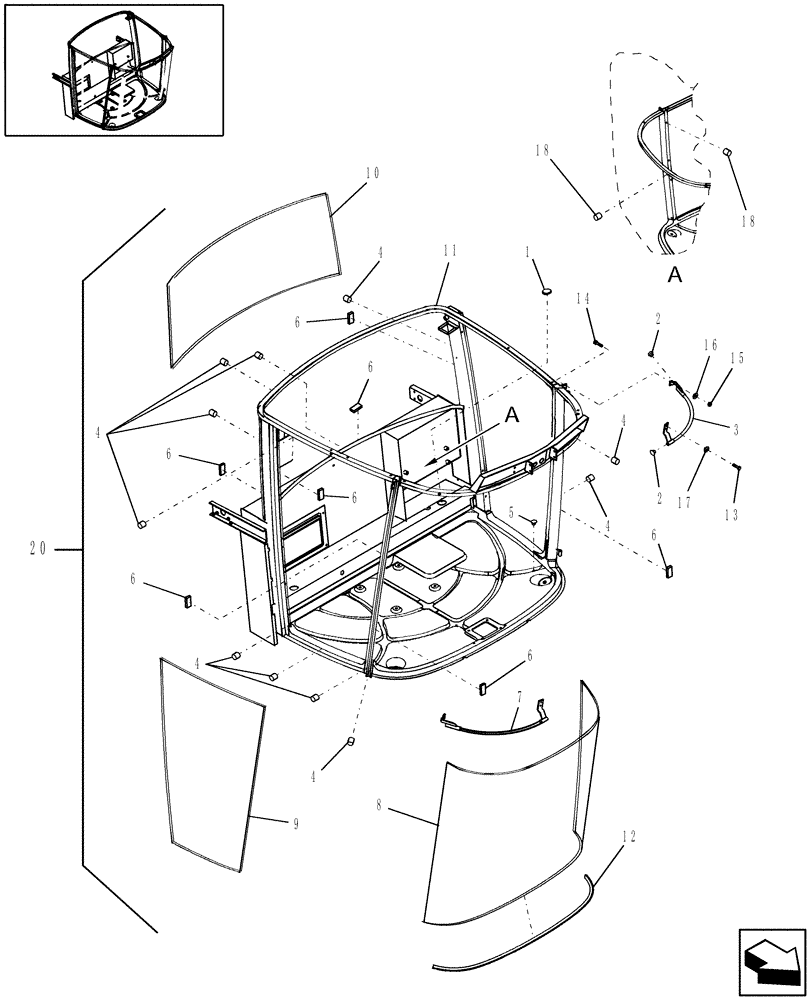

Схема запчастей Case IH WD1903 - (10.01) - CAB FRAME (10) - CAB
12
4
14
6
6
6
16
6
5
2
4
15
18
4
6
17
4
20
18
10
4
11
9
6
6
8
3
4
2
13
7
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

199676

BUTTON PLUG

2шт.

2

87280507

PLUG,M21

4шт.

3

86636000

HANDRAIL

LH

1шт.

4

86001112

SPACER

Glass Mounting

50шт.

5

NS

NOT SERVICED

Plug, Rubber

8шт.

6

87353028

INSULATOR BLOCK

Glass Setting

23шт.

7

86635999

HANDRAIL

RH

1шт.

8

84059822

WINDSHIELD

1шт.

9

87651812

GLASS

1шт.

10

86629031

GLASS

1шт.

11

87024916

FRAME ASSY

1шт.

12

87012018

RUBBER WEATHERSTRIP

1шт.

13

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

4шт.

14

86017957

SCREW,Phillips Drive, Oval HD, M6 x 20mm, Cl 4.8

4шт.

15

825-1406

NUT,M6, Cl 8

4шт.

16

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

4шт.

17

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

4шт.

18

87106208

THREADED INSERT,M6

5шт.

20

87619929

CAB

Service

1шт.

Includes: Ref. 1 - 19, Door, Roof, Electrical Components, Interior Trim, Controls, MFH, Seat, & Instructor's Seat

1шт.

WD1903 & WD2303 Only

1шт.

20

87619931

CAB

Service

1шт.

Includes: Ref. 1 - 19, Door, Roof, Electrical Components, Interior Trim, Controls, MFH, Seat, & Instructor's Seat

1шт.

WD1203 Only

1шт.
