(10.01[1]) - CAB FRAME, FROM YCG667001

Запчасти Case IH WD1903 (10.01[1]) - CAB FRAME, FROM YCG667001 (10) - CAB

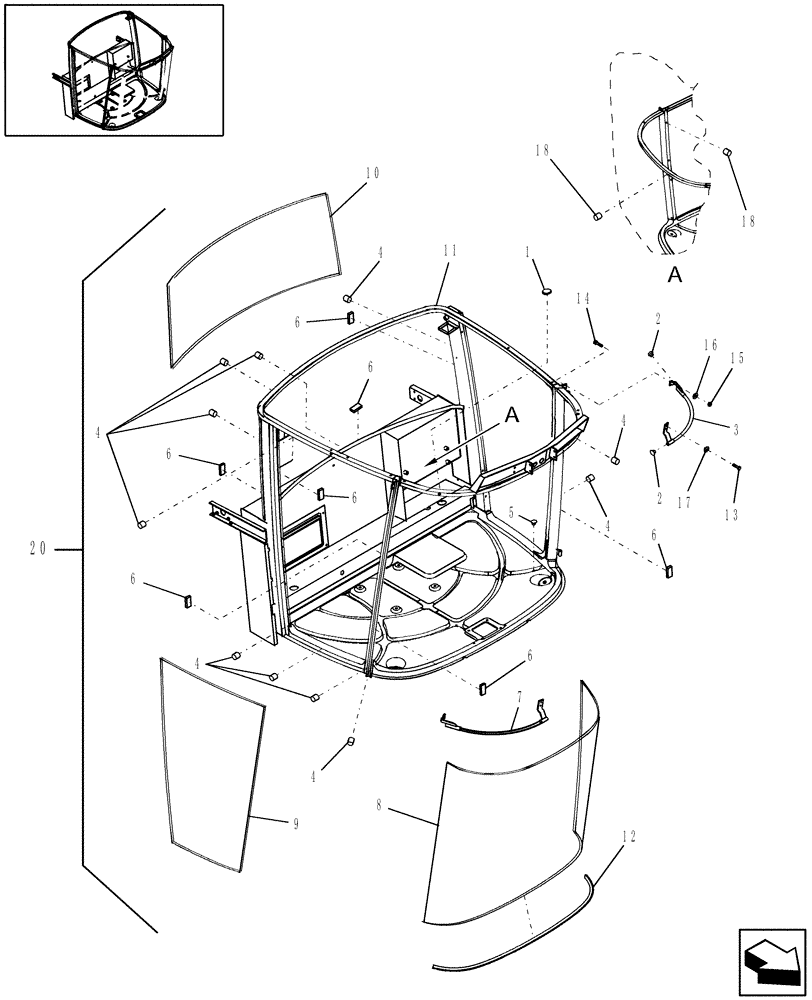

Схема запчастей Case IH WD1903 - (10.01[1]) - CAB FRAME, FROM YCG667001 (10) - CAB
6
1
6
5
14
10
4
13
7
6
2
15
18
6
11
16
4
12
20
4
4
17
8
9
4
6
2
4
6
18
3
6
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

199676

BUTTON PLUG

2шт.

2

87280507

PLUG,M21

4шт.

3

86636000

HANDRAIL

1шт.

4

86001112

SPACER

44шт.

5

NS

NOT SERVICED

Plug, Rubber

8шт.

6

87353028

INSULATOR BLOCK

23шт.

7

86635999

HANDRAIL

1шт.

8

84059822

WINDSHIELD

1шт.

9

87037142

GLASS

1шт.

10

86629031

GLASS

1шт.

11

NSS

NOT SOLD SEPARAT

Frame Assembly

1шт.

12

87012018

RUBBER WEATHERSTRIP

1шт.

13

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

4шт.

14

86017957

SCREW,Phillips Drive, Oval HD, M6 x 20mm, Cl 4.8

4шт.

15

9706755

NUT,M6, Cl 8

4шт.

16

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

4шт.

17

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

4шт.

18

87106208

THREADED INSERT,M6

9шт.

20

87619928

CAB

Service

1шт.

Includes: Ref. 1 - 19, Door, Roof, Electrical Components, Interior Trim, Controls, MFH, Seat, & Instructor's Seat

1шт.

H8060 & H8080 Only

1шт.

87619930

CAB

Service

1шт.

Includes: Ref. 1 - 19, Door, Roof, Electrical Components, Interior Trim, Controls, MFH, Seat, & Instructor's Seat

1шт.

H8040 Only

1шт.
