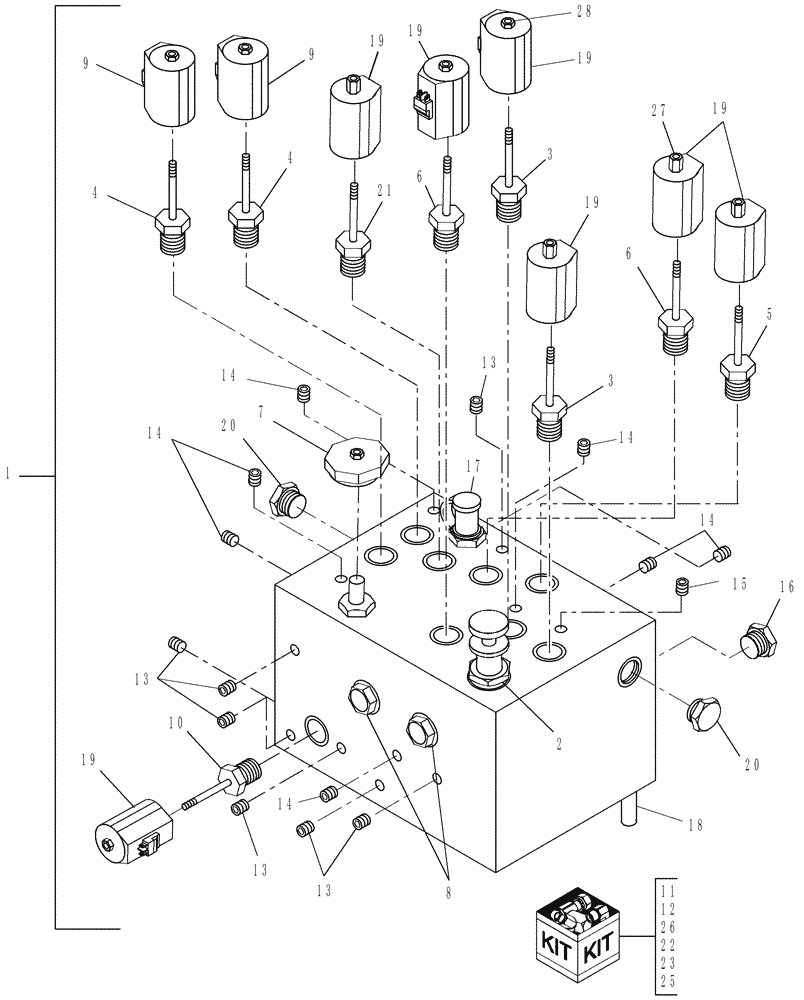

Запчасти Case IH WD1903 (09.09[3]) - MANIFOLD, MAIN, COMPONENTS (09) - HEADER LIFT LINKAGE

1

87548450

CONTROL VALVE

Deluxe, Main Manifold

1шт.

P.I.N. Y8G661200 & Prior

1шт.

1

87548450R

REMAN-HYD VALVE

Reman Control Valve Deluxe, Main Manifold

1шт.

1

87548450C

CORE-VALVE HYD

Return Number

1шт.

1

87703824

VALVE

CONTROL Deluxe, Main Manifold

1шт.

P.I.N. Y8G661201 & After

1шт.

2

87030710

VALVE PRESSURE RELIE

See Also: Ref. 24

1шт.

3

86509019

CONTROL VALVE

Parking Brake

2шт.

4

87740293

SOLENOID VALVE

See Also: Ref. 11

2шт.

5

87023285

VALVE PRESSURE RELIE

See Also: Ref. 23

1шт.

6

87436627

VALVE

See Also: Ref. 22

2шт.

7

87023284

NEEDLE VALVE

See Also: Ref. 11

1шт.

8

86547652

HYDRAULIC VALVE

See Also: Ref. 21

2шт.

9

87352777

SOLENOID

See Also: Ref. 11

2шт.

10

87371977

VALVE PRESSURE RELIE

(SRV); See Also: Ref.s 12 & 25

1шт.

P.I.N. Y8G661200 & Prior

1шт.

10

87481864

VALVE

Pressure Relief, Includes: Ref. 22

1шт.

P.I.N. Y8G661201 & After

1шт.

10

86508168

SEAL KIT

Use w/ p/n 87481864

1шт.

11

86978349

SEAL KIT

Services Ref.'s 4, 7, 9, & 21

1шт.

12

87026589

SEAL KIT

Services Ref. 10

1шт.

13

9625178

PLUG,9/16" - 18 ORB

7шт.

Seal with Loctite 243 and primer 7649

1шт.

14

87035062

PLUG,Hex, 1/2"-20 ORB

7шт.

Seal with Loctite 243 and primer 7649

1шт.

15

86590562

PLUG,Hex Soc, 3/4" - 16 ORB

1шт.

Seal with Loctite 243 and primer 7649

1шт.

16

214389

PLUG,3/4" - 16 ORB

1шт.

Seal with Loctite 243 and primer 7649

1шт.

17

87026252

ASSEMBLY

Includes: Dust Cap & O-Ring Which are not serviced separately

1шт.

18

NSS

NOT SOLD SEPARAT

Stud, Threaded

3шт.

19

87352779

SOLENOID

6шт.

20

76349

PLUG,9/16" - 18 ORB

2шт.

Seal with Loctite 243 and primer 7649

1шт.

21

87499225

VALVE

Solenoid - Uses Seal Kit 86978349

1шт.

P.I.N. Y8G661201 & After

1шт.

22

86508168

SEAL KIT

Services: Ref. 6 & Ref. 10

1шт.

23

86509023

SEAL KIT

Services: Ref. 5

1шт.

24

86607646

SEAL KIT

Services: Ref. 2

1шт.

25

87360183

KIT

Valve Wrench; Services: Ref. 10

1шт.

26

86547660

SEAL KIT

Services: Ref. 8

1шт.

27

86516836

NUT

1/2-20, 5/8 High

1шт.

28

590907

NUT

1/2-20, 11/64 High

1шт.
