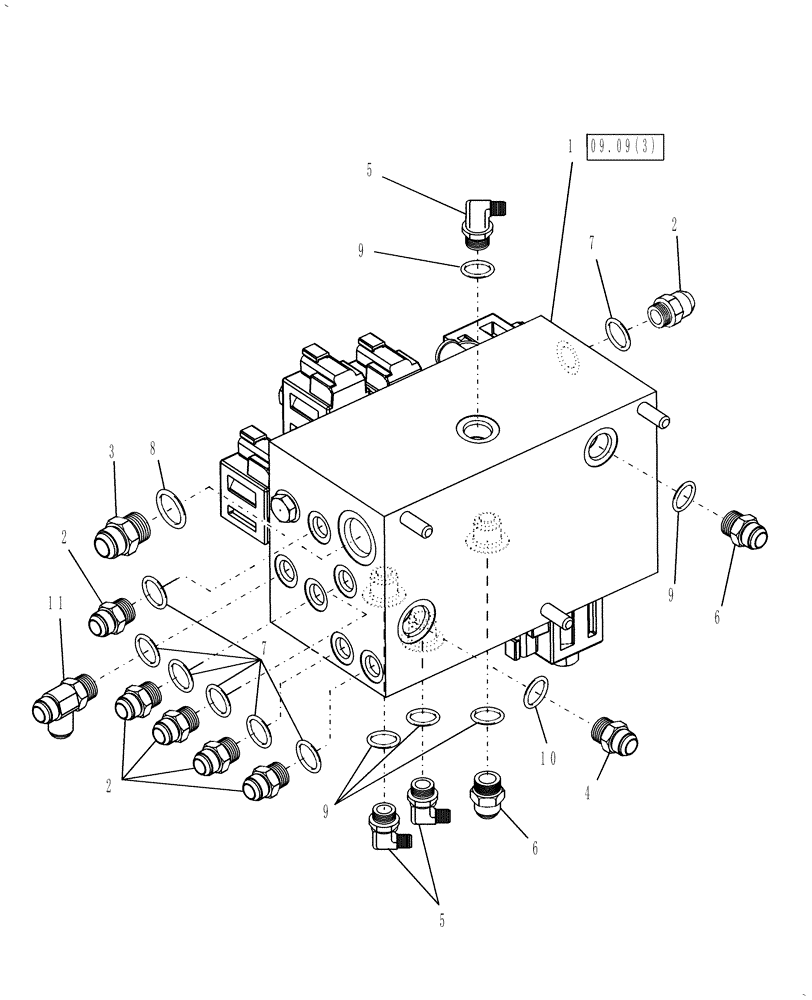

Запчасти Case IH WD1903 (09.09[2]) - MANIFOLD, MAIN, CONNECTORS - DRAPER OPTION (09) - HEADER LIFT LINKAGE

1

87548450

CONTROL VALVE

Deluxe, Main Manifold

1шт.

P.I.N. Y8G661200 & Prior

1шт.

1

87548450R

REMAN-HYD VALVE

Reman Deluxe, Main Manifold

1шт.

1

87548450C

CORE-VALVE HYD

Return Number

1шт.

1

87703284

CONTROL Deluxe, Main Manifold

1шт.

P.I.N. Y8G661201 & After

1шт.

2

76350

HYD CONNECTOR,9/16" - 18 ORB x 9/16" - 18 JIC

5шт.

3

322896

HYD CONNECTOR,1-1/16" - 12 ORB x 1-1/16" - 12 JIC

1шт.

4

325059

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

1шт.

5

128830

90 ELBOW,3/4" - 16 JIC x 3/4" - 16 ORB

3шт.

6

128818

UNION,3/4" - 16 ORB x 3/4" - 16 JIC

2шт.

7

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

7шт.

8

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

3шт.

9

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

10

167269

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

11

86513020

TEE,9/16" - 18 ORB x 9/16" - 18 JIC x 9/16" - 18 JIC

1шт.
