Запчасти Case IH WD1903 (09.08[3]) - MANIFOLD, INDEPENDENT, COMPONENTS (09) - HEADER LIFT LINKAGE

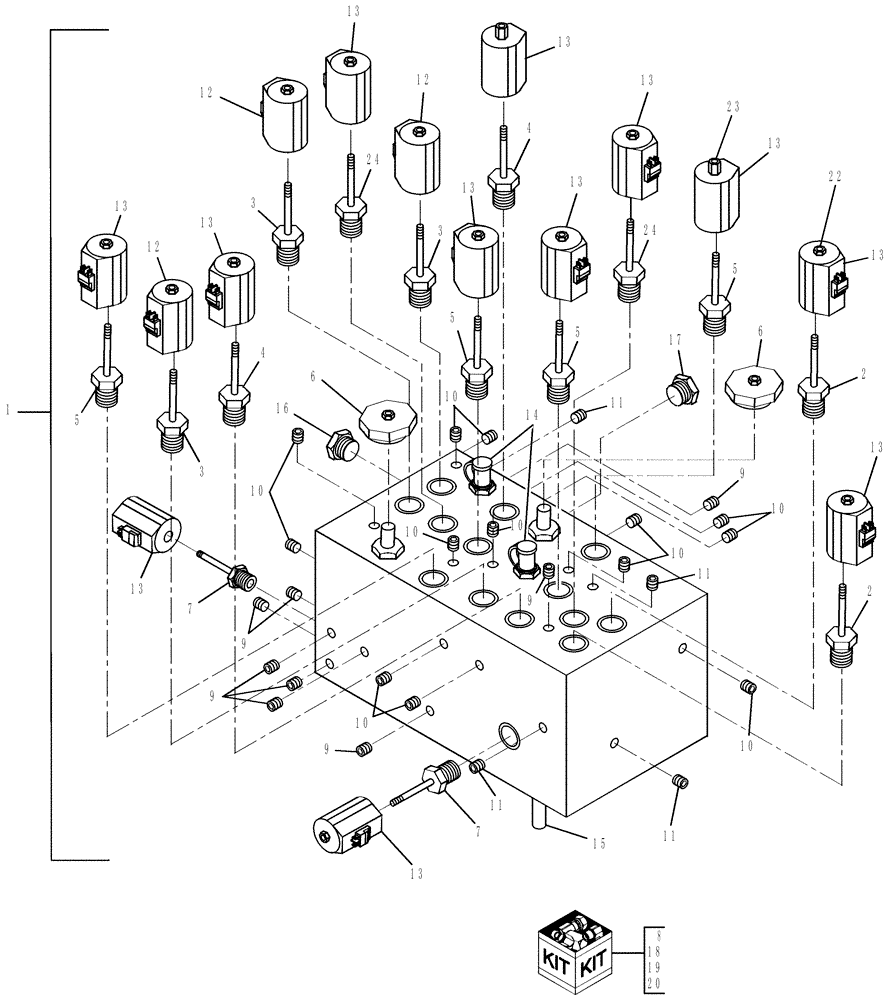

Схема запчастей Case IH WD1903 - (09.08[3]) - MANIFOLD, INDEPENDENT, COMPONENTS (09) - HEADER LIFT LINKAGE
7
10
18
10
4
9
2
15
5
9
10
3
4
3
11
13
13
5
9
5
10
13
11
12
22
3
5
10
2
20
9
13
11
13
13
10
1
24
13
13
6
23
7
19
12
11
24
13
8
10
13
12
13
14
17
6
13
9
16
10

Артикул

Название

Примечание

Количество

1

87548448

CONTROL VALVE

Independent

1шт.

P.I.N. Y8G661200 & Prior

1шт.

1

87703825

VALVE

CONTROL Independent, Serial Range: YDG670315-YDG670315

1шт.

P.I.N. Y8G661201 & After

1шт.

1

47913935

PLATE

Used With Valve 47773033 and 47773034

1шт.

87703825R

REMAN-HYD VALVE

WD2303, WD1903 both (9/07-)

1шт.

87703825C

CORE-VALVE HYD

Return Number

1шт.

47773034R

REMAN-HYD VALVE

Reman Independent Valve

1шт.

47773034C

CORE-VALVE HYD

Return Number

1шт.

2

86509019

CONTROL VALVE

Parking Brake

2шт.

2

1260872C91

SEAL KIT

2шт.

3

87740293

SOLENOID VALVE

See Also: Ref. 20

3шт.

4

87023285

VALVE PRESSURE RELIE

See Also: Ref. 19

2шт.

5

87436627

VALVE

See Also: Ref. 18

4шт.

6

87023284

NEEDLE VALVE

See Also: Ref. 20

2шт.

7

87738736

SOLENOID VALVE

(SRV); See Also: Ref. 8 & 21

2шт.

P.I.N. Y8G661200 & Prior

1шт.

7

87481869

VALVE

Pressure Relief, Includes: Ref. 18, 3275 psi., 5.4 GPM

2шт.

P.I.N. Y8G661201 & After

1шт.

7

86508168

SEAL KIT

For p/n 87481869

1шт.

8

87026589

SEAL KIT

Services: Ref. 7

1шт.

P.I.N. Y8G661200 & Prior

1шт.

9

9625178

PLUG,9/16" - 18 ORB

Seal with Loctite 243 and primer 7649

8шт.

10

87035062

PLUG,Hex, 1/2"-20 ORB

Seal with Loctite 243 and primer 7649

13шт.

11

86590562

PLUG,Hex Soc, 3/4" - 16 ORB

Seal with Loctite 243 and primer 7649

4шт.

12

87352777

SOLENOID

3шт.

13

87352779

SOLENOID

10шт.

14

87026252

ASSEMBLY

Includes: Dust Cap & O-Ring Which are not serviced separately

2шт.

15

NS

NOT SERVICED

Threaded Stud

3шт.

16

76349

PLUG,9/16" - 18 ORB

Seal with Loctite 243 and primer 7649

1шт.

17

214389

PLUG,3/4" - 16 ORB

Seal with Loctite 243 and primer 7649

1шт.

18

86508168

SEAL KIT

Services: Ref. 5 & Ref. 7

1шт.

19

86509023

SEAL KIT

Services: Ref. 4

1шт.

20

86978349

SEAL KIT

Services: Ref. 3, 6 & 24

1шт.

21

87360183

KIT

Valve Wrench; Services: Ref. 7

1шт.

22

590907

NUT

11/64 High

1шт.

23

86516836

NUT

5/8 High

1шт.

24

87499225

VALVE

Solenoid, N.O. Single Check - Uses Seal Kit 86978349

2шт.

P.I.N. Y8G661201 & After

1шт.

Выбрано товаров: 39
