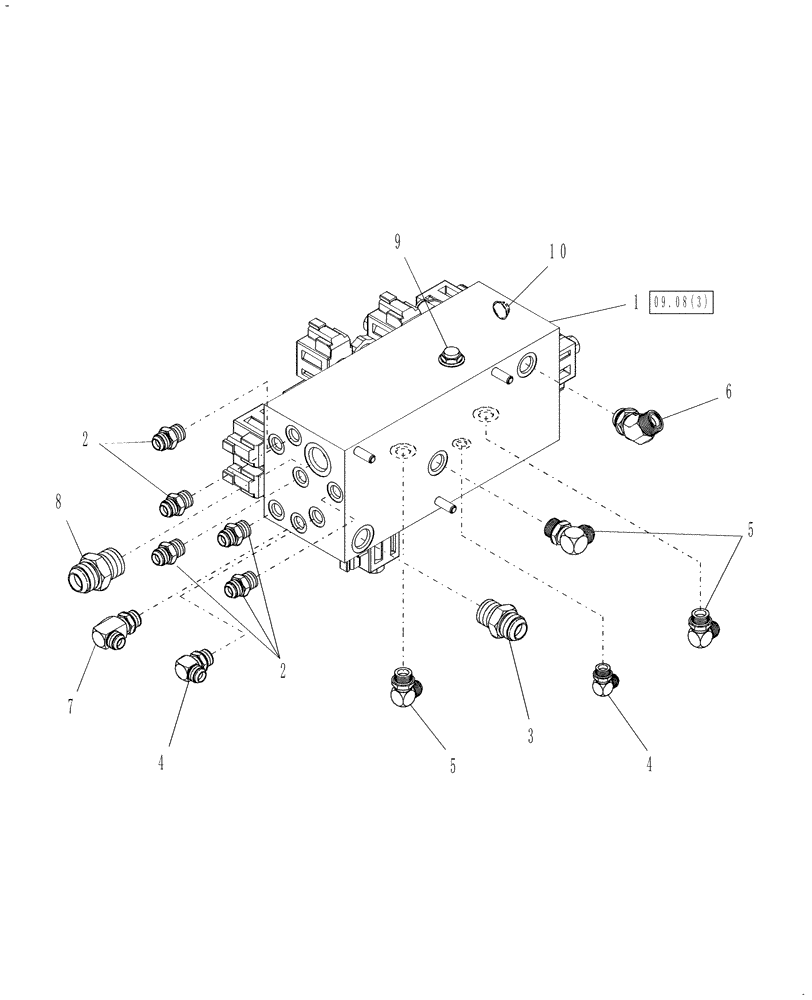

Запчасти Case IH WD1903 (09.08[1]) - MANIFOLD, INDEPENDENT, CONNECTORS - NON-DRAPER OPTION (09) - HEADER LIFT LINKAGE

1

87548448

CONTROL VALVE

Independent

1шт.

P.I.N. Y8G661200 & Prior

1шт.

1

87703825

VALVE

CONTROL Independent, Serial Range: Y8G661201-YDG670315

1шт.

P.I.N. Y8G661201 & After

1шт.

1

47913935

PLATE

Used With Valve 47773033 and 47773034

1шт.

87703825R

REMAN-HYD VALVE

WD2303, WD1903 both (9/07-)

1шт.

87703825C

CORE-VALVE HYD

Return Number

1шт.

47773034R

REMAN-HYD VALVE

Reman Independent Valve

1шт.

47773034C

CORE-VALVE HYD

Return Number

1шт.

2

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

5шт.

2

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

5шт.

3

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

Includes: O-Ring

1шт.

3

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

4

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

2шт.

4

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

2шт.

5

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

3шт.

5

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

3шт.

6

218-5136

ELBOW,45 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

Includes: O-Ring

1шт.

6

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

7

218-5552

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

Includes: O-Ring

1шт.

7

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

8

218-5030

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

Includes: O-Ring

1шт.

8

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

9

87038769

STOP PLUG

3/4"-16 x 7/8" Hd.

1шт.

10

87036745

PLUG

9/16"-18 x 11/16" Hd.

1шт.
