Запчасти Case IH WD1903 (07.12) - CYLINDER, HYDRAULIC HEADER TILT (07) - HYDRAULICS

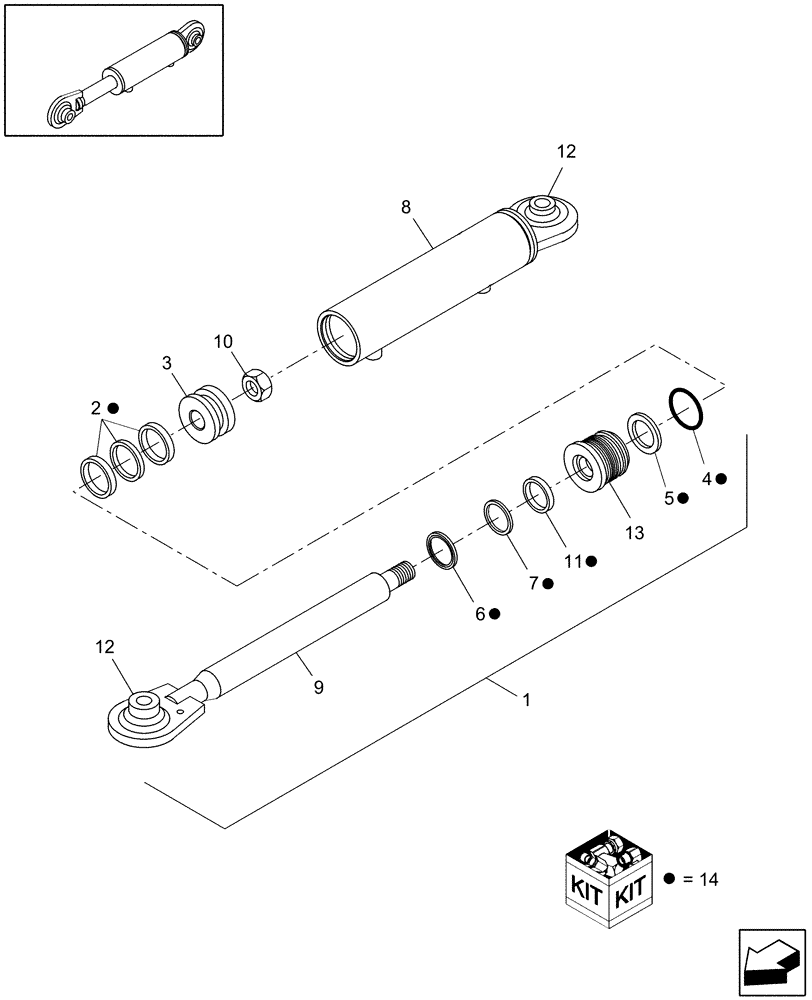

Схема запчастей Case IH WD1903 - (07.12) - CYLINDER, HYDRAULIC HEADER TILT (07) - HYDRAULICS
4
7
1
12
6
2
9
10
13
3
11
12
5
8

Артикул

Название

Примечание

Количество

1

87593870

HYDRAULIC CYLINDER,Double Acting, 28.7mm Rod, 152.4mm Stroke

Header Tilt, 2 x 6, Includes: Ref. 2 - 13

1шт.

1

87593870R

REMAN-HYD CYLINDER

WD1203, WD1903, WD2303, All CASE IH SELF-PROPELLED WINDROWER, Header Tilt, 2 x 6 (9/07-)

1шт.

1

87593870C

CORE-HYD CYLINDER

Return Number

1шт.

1

84316389

HYDRAULIC CYLINDER,Double Acting, 28.57mm Rod, 203.2mm Stroke

Header Tilt, 2 x 8, Includes: Ref. 2 - 13

1шт.

WD1903 & WD2303 Only

1шт.

From PIN YAG663585

1шт.

1

84316402

HYDRAULIC CYLINDER,Double Acting, 28.57mm Rod, 101.6mm Stroke

Header Tilt, 2 x 4, Includes: Ref. 2-13

1шт.

WD1203 Only

1шт.

From PIN YAG663501

1шт.

2

86553483

SEAL

Piston

1шт.

3

87026074

PISTON

1шт.

4

235782

O-RING,0.139" Thk x 1.734" ID, -224, Cl 6, 90 Duro

1шт.

5

270103

BACK-UP RING,45.01mm ID x 51mm OD x 1.27mm Thk

Back-up

1шт.

6

NSS

NOT SOLD SEPARAT

Seal

1шт.

7

NSS

NOT SOLD SEPARAT

Backup Washer

1шт.

8

NSS

NOT SOLD SEPARAT

Barrel

1шт.

9

87593871

ROD

For 2 x 6 Cylinder

1шт.

9

84316394

ROD

For 2 x 8 Cylinder

1шт.

WD1903 & WD2303 Only

1шт.

From PIN YAG663585

1шт.

9

84316420

ROD

For 2 x 4 Cylinder, WD1203 Only

1шт.

10

280724

LOCK NUT,3/4" - 16

1шт.

11

592790

INDICATOR

1шт.

12

87580646

BUSHING,19.05mm ID x 34.92mm OD x 34.92mm L

2шт.

13

87593872

CYLINDER END CAP

1шт.

15

87593873

SEAL KIT

1шт.

Выбрано товаров: 26
