Запчасти Case IH WD1903 (07.06[2]) - HYDRAULIC HEADER DRIVE (07) - HYDRAULICS

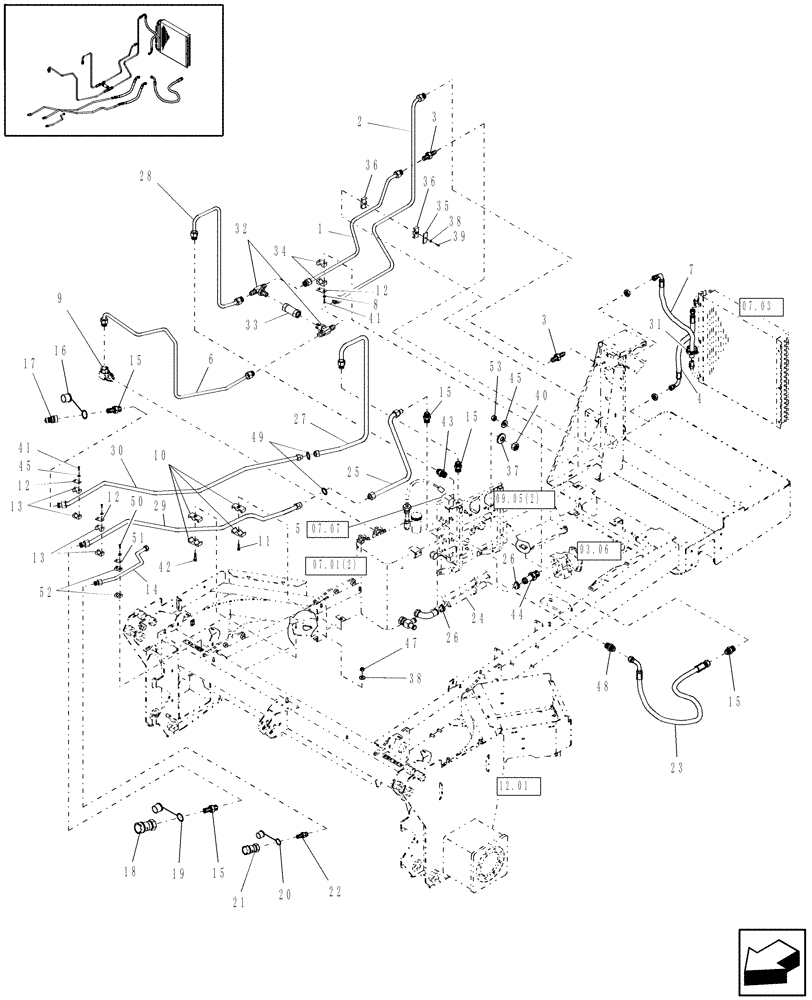

Схема запчастей Case IH WD1903 - (07.06[2]) - HYDRAULIC HEADER DRIVE (07) - HYDRAULICS
33
45
1
48
20
8
39
07.03
12.01
03.06
18
15
15
35
36
4
50
13
7
2
3
22
28
17
51
24
47
25
15
38
53
10
38
45
3
29
6
41
16
27
36
21
26
31
13
14
23
52
40
41
37
15
32
49
42
5
12
30
43
12
12
11
15
26
9
07.07
44
34
09.05(2)
07.01(2)
19

Артикул

Название

Примечание

Количество

1

87374419

HYD TUBE,19.045 mm OD x 1060 mm L

3/4 OD x 5/8 ID x 52 Long

1шт.

2

87532545

TUBE,15.75 mm ID x 19.05 mm OD x 1059.1, 799.6 mm L

3/4 OD x 5/8 ID x 83 Long

1шт.

3

86508629

FITTING,Blkhd, 1 1/16"-12, 37 Degree x 1 1/16"-12, 37 Degree

2шт.

4

87563606

HOSE

0.91 OD x 5/8 ID x 29-1/2 Long

1шт.

TY09 & Prior

1шт.

4

87521035

HOSE,0.63" ID x 34.50", SAE J516

1шт.

TY2010 & After (Expected Implementation August 2009)

1шт.

5

87373659

CONTROL VALVE

See Fig. 07.07

1шт.

6

87011401

TUBE,19.05 mm OD

3/4 OD x 5/8 ID x 63 Long

1шт.

7

86979925

HOSE ASSY.

1-1/4 OD x 3/4 ID x 26-1/4 Long

1шт.

8

87040663

CLAMP

1шт.

9

87021824

90 ELBOW,90 Degree, 1 1/16"-12, 37 Degree x 1 5/16"-12, O-Ring

1шт.

10

86900725

CLAMP

Twin, 1

2шт.

11

86564908

BOLT

Stacking

1шт.

12

86900727

COVER

Plate

3шт.

13

87022323

CLAMP,25.4mm D Clamping Pipe

Plastic, 1

2шт.

14

87613149

TUBE,15.875 mm OD x 384.2, 162.3 mm L

1шт.

15

9840329

HYD CONNECTOR

1 x 3/4, Includes: O-Rings

5шт.

15

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

5шт.

15

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

5шт.

16

87036367

DUST CAP

3/4

1шт.

17

9820148

COUPLING,1-1/16" - 12

1шт.

18

86564734

COUPLING

1шт.

19

87036366

DUST CAP

3/4

1шт.

20

87036368

DUST CAP

1/2

1шт.

21

87037009

COUPLING, QUICK, FEM

1шт.

22

218-5066

HYD CONNECTOR,7/8" - 14 Male JIC x 3/4" - 16 Male ORB

Incl. O-Ring

1шт.

22

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

23

87024648

HOSE ASSY.

1.21 OD x 3/4 ID x 26 Long

1шт.

24

87573885

HOSE

2-1/8 OD x 1-1/2 ID x 33 Long

1шт.

25

87623699

HYD TUBE,19.3 mm ID x 25.4 mm OD

1 OD x 3/4 ID x 40-1/2 Long

1шт.

26

87039085

HOSE CLAMP,32mm - 54mm

2шт.

27

87038583

HYD TUBE

1 OD x 3/4 ID x 59 Long

1шт.

28

87038695

HYD TUBE

3/4 OD x 5/8 ID x 50 Long

1шт.

29

87613148

TUBE,25.4 mm OD

1 OD x 3/4 ID x 85 Long

1шт.

30

87613147

TUBE,25.4 mm OD

1 OD x 3/4 ID x 82 Long

1шт.

31

86536660

HOSE CLAMP,25mm - 44mm

1шт.

32

248978

HYD CONNECTOR,1-1/16" - 12 JIC x 1-1/16" - 12 JIC x 1-1/16" - 12 ORB

2шт.

33

86900234

BY-PASS VALVE

1шт.

34

86900723

CLAMP

Plastic, 3/4

1шт.

35

87053042

PLATE

Cover

1шт.

36

86563609

CLAMP

1шт.

37

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

2шт.

38

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

2шт.

39

88731

BOLT,Hex, 5/16"- 18 x 3", Gr 5

1шт.

40

425-286

FLANGE NUT,Flg, 3/8"-16, G5

2шт.

41

413-428

BOLT,Hex, 1/4" - 20 x 1-3/4", Gr 5

6шт.

42

81972

HEX SOC SCREW,5/16" - 18 x 1-3/4"

1шт.

43

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

Incl. O-Ring

1шт.

43

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

44

86634099

FITTING,1 1/2" Hose x 1 5/8"-12 ORB, Beaded

1шт.

9626930

O-RING,0.118" Thk x 1.720" ID, -924, Cl 6, 90 Duro

must be ordered for fitting 86634099

1шт.

45

80682

LOCK WASHER,1/4"

8шт.

46

86900726

COVER

Plate

1шт.

47

232-4145

LOCK NUT,5/16"-18, GC

1шт.

48

9840535

HYD CONNECTOR,1-3/16" - 12 ORFS x 1-1/16" - 12 ORB

Includes O-Rings

1шт.

48

9991976

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.

48

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

49

9824050

O-RING,0.07" Thk x 0.926" ID, -21, Cl 6, 90 Duro

2шт.

50

280112

BOLT,Hex, 1/4" - 20 x 1-1/2", Gr 5

2шт.

51

86900726

COVER

1шт.

52

87040663

CLAMP

2шт.

53

86521605

FLANGE NUT,5/16"-18, Cl 5

1шт.

Выбрано товаров: 63
