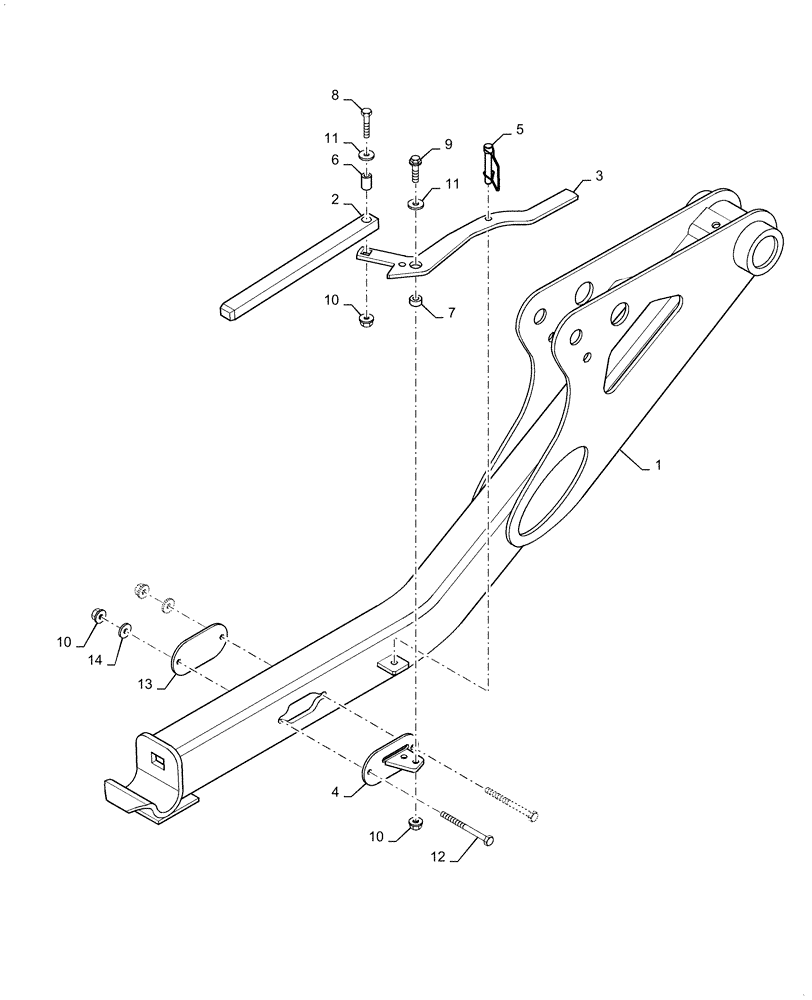

Запчасти Case IH WD1203 (37.110.AE[01]) - LIFT ARM, LATCH HOOK, 4 CYLINDER, NON DRAPER (37) - HITCHES, DRAWBARS & IMPLEMENT COUPLINGS

1

47458660

LIFT ARM

Dark Grey, Non Draper, Serial Range: -YGG677503

2шт.

1

48021134

ARM

Dark Grey, Non Draper, Start Serial: YGG677504

2шт.

2

87011324

LOCK PIN

2шт.

3

87569777

HANDLE

2шт.

4

87034769

PLATE ASSY.

LH

1шт.

4

87011329

PLATE ASSY.

RH

1шт.

5

86837801

PIN,7.93mm OD x 44.45mm L

Linch

2шт.

6

87042679

SPACER

2шт.

7

646056

SPACER,13/32” ID x .750” OD x .338” Tk.

2шт.

8

9706689

BOLT,Hex, 3/8" - 16 x 1 3/4", Gr 5

2шт.

9

280523

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

2шт.

10

86521606

FLANGE NUT,Hex, 3/8" - 16, Gr 5

8шт.

11

9827956

WASHER,10.3mm ID x 25.4mm OD x 2.67mm Thk

4шт.

12

80012047

BOLT,Hex, 3/8" - 16 x 4", Grade 5

4шт.

13

87031061

PLATE

Dark Grey

2шт.

14

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

4шт.
