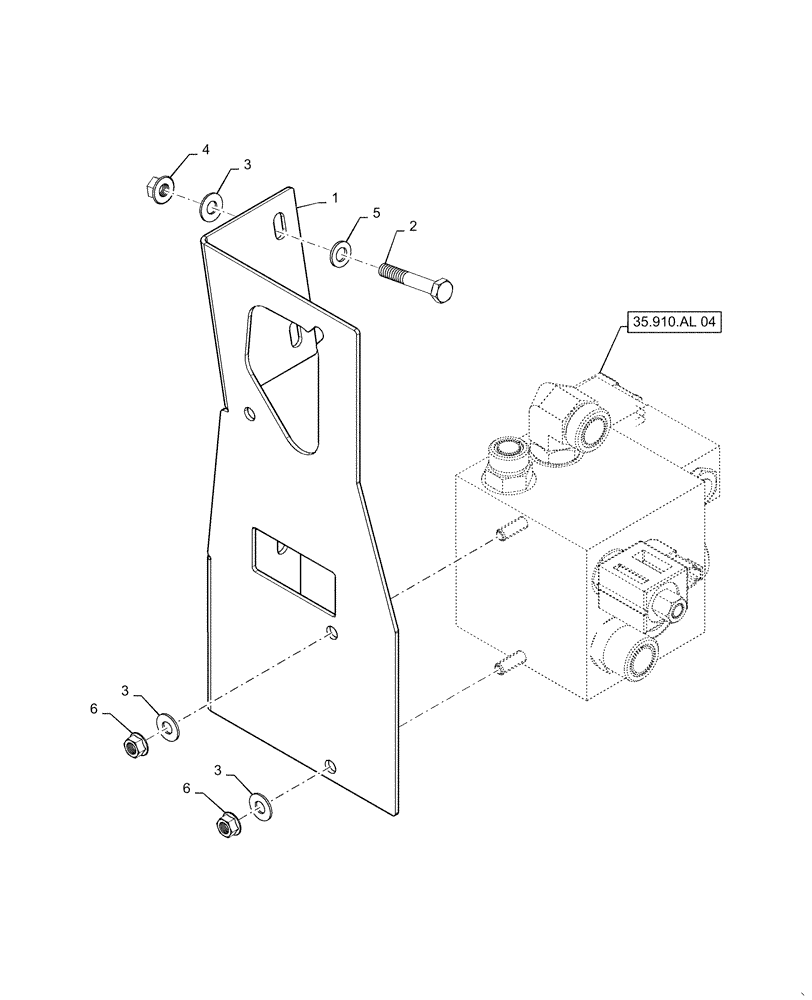

Запчасти Case IH WD1203 (35.910.AL[03]) - HYDRAULIC SYSTEM, DRIVE ASSY, 4 CYL NON-DRAPER MOUNTING (35) - HYDRAULIC SYSTEMS

1

47495079

BRACKET

1шт.

2

120070

BOLT,Hex, M10 x 1.5 x 60mm, Cl 8.8

4шт.

3

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

6шт.

4

9804278

FLANGE NUT,M10 x 1.5, Cl 8

4шт.

5

86624176

WASHER,11mm ID x 20mm OD x 2mm Thk

4шт.

6

86521606

FLANGE NUT,Hex, 3/8" - 16, Gr 5

2шт.
