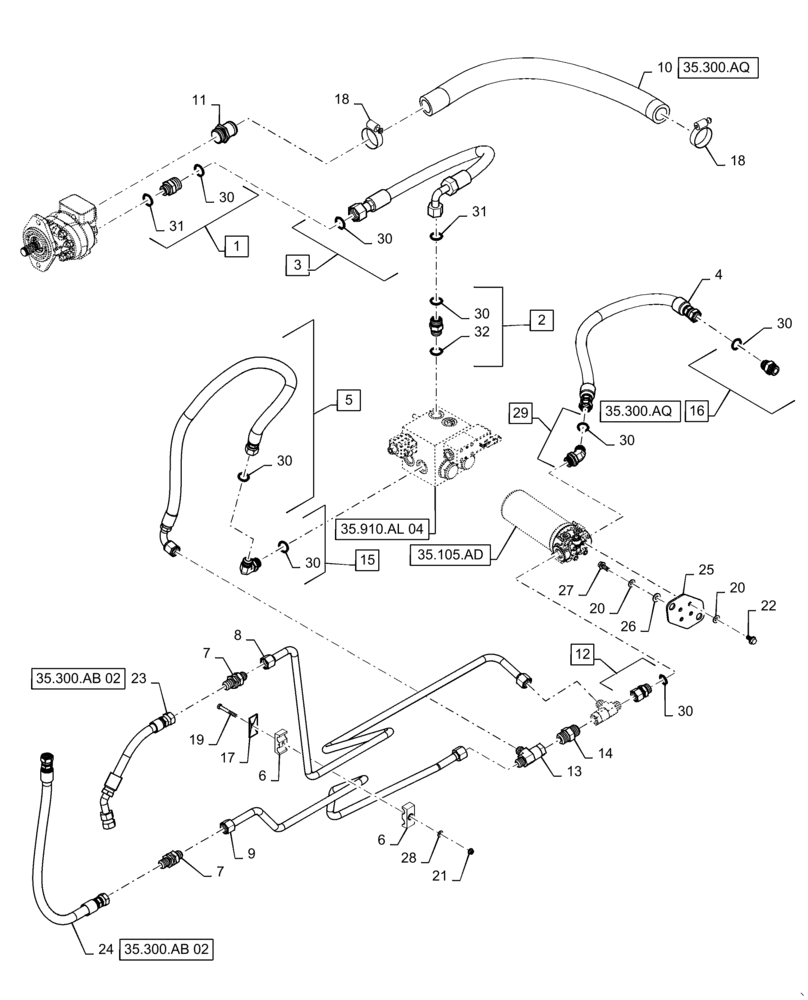

Запчасти Case IH WD1203 (35.910.AL[02]) - HYDRAULIC SYSTEM, DRIVE ASSY, 4 CYL NON-DRAPER (35) - HYDRAULIC SYSTEMS

1

9840329

HYD CONNECTOR

2шт.

2

9840535

HYD CONNECTOR,1-3/16" - 12 ORFS x 1-1/16" - 12 ORB

Incl 30, 32

1шт.

4

47434631

HYDRAULIC HOSE

Header Return

1шт.

6

87000140

CLAMP,Tube, 19.05mm

Hydraulic Tube

1шт.

7

86508629

FITTING,Blkhd, 1 1/16"-12, 37 Degree x 1 1/16"-12, 37 Degree

2шт.

8

47435167

HYD TUBE

Oil Cooler Return, 4 Cyl

1шт.

9

47435164

HYD TUBE

Oil Cooler Supply

1шт.

10

47434637

HYDRAULIC HOSE

Header Pump Suction

1шт.

11

86634099

FITTING,1 1/2" Hose x 1 5/8"-12 ORB, Beaded

1шт.

12

84221265

HYD CONNECTOR

1шт.

13

87698812

HYD CONNECTOR

2шт.

14

47481633

CHECK VALVE

125 PSI

1шт.

15

322894

90 ELBOW,1-1/16" - 12 JIC x 1-1/16" - 12 ORB

Incl 30

1шт.

16

322896

HYD CONNECTOR,1-1/16" - 12 ORB x 1-1/16" - 12 JIC

Incl 30

1шт.

17

87000230

PLATE

Hose Clamp

3шт.

18

86050202

HOSE CLAMP,1.59” - 2.5”, Worm Gear

2шт.

19

88346

BOLT,Hex, 5/16" - 18 x 2 1/2", Gr 5

2шт.

20

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

6шт.

21

86521605

FLANGE NUT,5/16"-18, Cl 5

1шт.

22

86050286

FLANGE BOLT,M10 x 20mm, Cl 8.8

4шт.

23

87563607

HOSE

Assy

1шт.

24

87521035

HOSE,0.63" ID x 34.50", SAE J516

1шт.

25

47566635

PLATE

1шт.

26

80702

WASHER,0.44" ID x 1" OD x 0.08" Thk

2шт.

27

86521613

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

28

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

1шт.

29

330344

45 ELBOW,1-1/16" - 12 JIC x 1-1/16" - 12 ORB

Incl 30

1шт.

30

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

Incl 1, 2, 3, 5, 12, 15, 16, 29

8шт.

31

9824050

O-RING,0.07" Thk x 0.926" ID, -21, Cl 6, 90 Duro

Incl 1, 3

2шт.

32

9991976

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

Incl 2

1шт.
