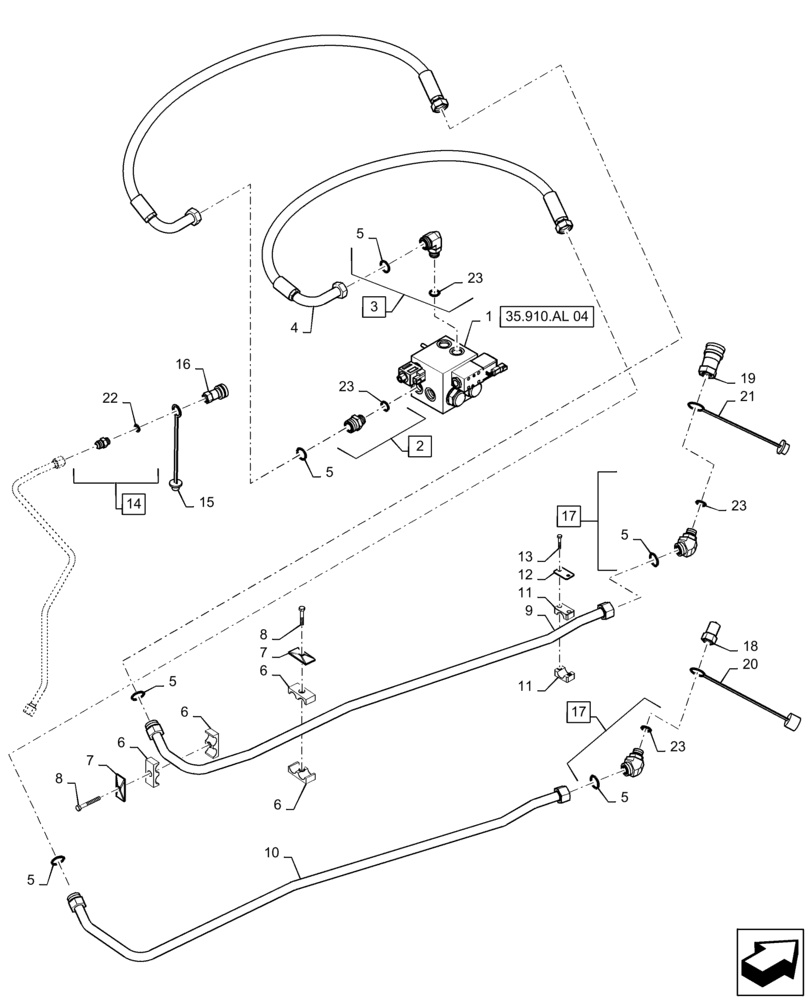

Запчасти Case IH WD1203 (35.910.AL[01]) - HYDRAULIC SYSTEM, DRIVE ASSY, 4 CYL NON-DRAPER (35) - HYDRAULIC SYSTEMS

1

87373659

CONTROL VALVE

Header Reverse Control

1шт.

2

9840329

HYD CONNECTOR

Incl 5, 23

2шт.

3

9846956

90 ELBOW,90 Degree, 1-7/16"-12 x 1-1/16"-12, Adj, ORFS

Incl 5, 23

1шт.

4

47584273

HYDRAULIC HOSE

Header Gear Pump

1шт.

5

9824050

O-RING,0.07" Thk x 0.926" ID, -21, Cl 6, 90 Duro

Incl 2, 3, 17

6шт.

6

86900725

CLAMP

Twin

2шт.

7

87000230

PLATE

Hose Clamp

3шт.

8

9707515

BOLT,Hex, 5/16 - 18" x 1 3/4", Gr 5

1шт.

9

47396849

HYD TUBE

RH Draper Header Forward

1шт.

10

47396851

HYD TUBE

RH Draper Header Reverse

1шт.

11

87022323

CLAMP,25.4mm D Clamping Pipe

Hydraulic Tube

2шт.

12

86900727

COVER

Plate

1шт.

13

280112

BOLT,Hex, 1/4" - 20 x 1-1/2", Gr 5

2шт.

14

86071

HYD CONNECTOR,7/8" - 14 JIC x 3/4" - 16 ORB

Incl 22

1шт.

15

87036368

DUST CAP

1шт.

16

87037009

COUPLING, QUICK, FEM

1шт.

17

87302733

HYD CONNECTOR

Elbow, Incl 5, 23

2шт.

18

9820148

COUPLING,1-1/16" - 12

Male

1шт.

19

86564734

COUPLING

1шт.

20

87036367

DUST CAP

1шт.

21

87036366

DUST CAP

1шт.

22

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

Incl 14

1шт.

23

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

Incl 2, 3, 17

3шт.
