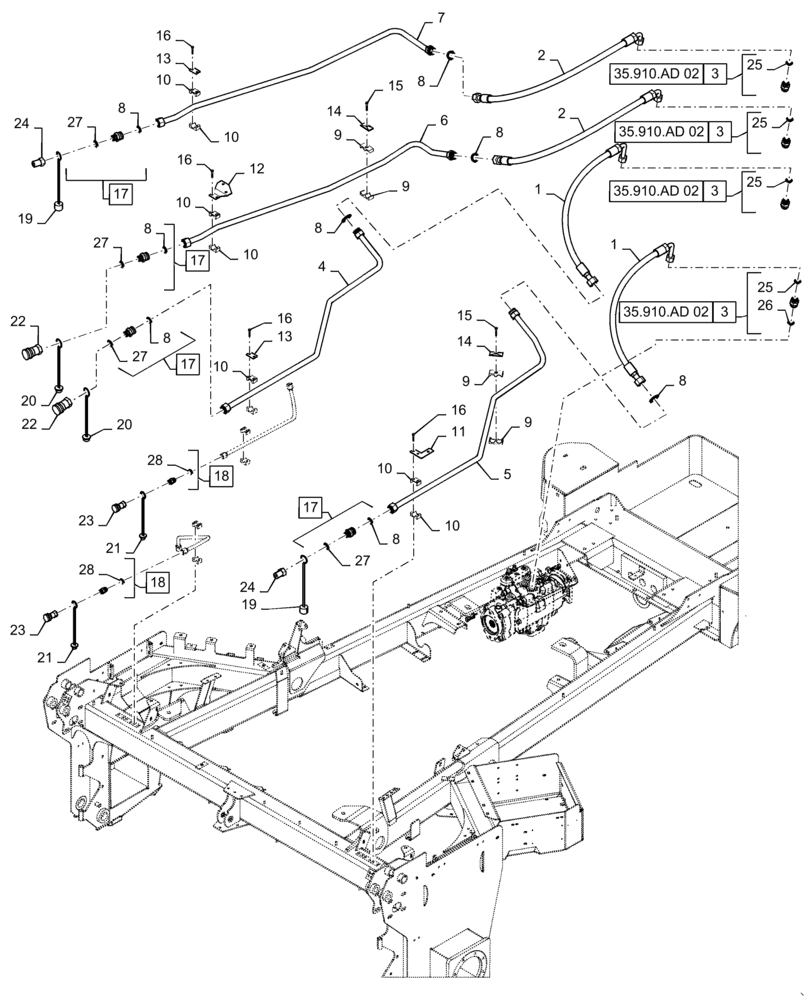

Запчасти Case IH WD1203 (35.910.AF[02]) - HYDRAULIC SYSTEM, DRIVE, DRAPER. 4 CYLINDER (35) - HYDRAULIC SYSTEMS

1

47396847

HYDRAULIC HOSE

LH Header Forward/Reverse

2шт.

2

47370431

HYDRAULIC HOSE

RH Header Forward/Reverse

2шт.

3

87359470

HYD CONNECTOR,1-3/16" - 12 ORFS x 1-5/16" - 12 ORB

3/4 ORFS- ORB 1.0, Incl 25, 26

4шт.

4

47396854

HYD TUBE

LH Header Forward

1шт.

5

47396859

HYD TUBE

LH Header Reverse

1шт.

6

47396849

HYD TUBE

RH Header Forward

1шт.

7

47396851

HYD TUBE

RH Header Reverse

1шт.

8

9824050

O-RING,0.07" Thk x 0.926" ID, -21, Cl 6, 90 Duro

8шт.

9

86900725

CLAMP

2шт.

10

87022323

CLAMP,25.4mm D Clamping Pipe

4шт.

11

47390242

BRACKET

1шт.

12

47360929

BRACKET

1шт.

13

86900727

COVER

2шт.

14

1347127C1

PLATE

2шт.

15

280164

BOLT,Hex, 1/4" - 20 x 1 3/4", Gr 5

2шт.

16

280112

BOLT,Hex, 1/4" - 20 x 1-1/2", Gr 5

8шт.

17

9840329

HYD CONNECTOR

1 7/16"-12 Oring X 1 1/16" -12 Oring, Incl 8, 27

4шт.

18

86071

HYD CONNECTOR,7/8" - 14 JIC x 3/4" - 16 ORB

Incl 28

2шт.

19

87036367

DUST CAP

.75", Black

2шт.

20

87036366

DUST CAP

.75", Black Plug

2шт.

21

87036368

DUST CAP

.50", Black Plug

2шт.

22

86564734

COUPLING

Female Quick Disconnect, -12

2шт.

23

87037009

COUPLING, QUICK, FEM

2шт.

24

9820148

COUPLING,1-1/16" - 12

Male

2шт.

25

9991976

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

Incl 3

4шт.

26

167268

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

Incl 3

4шт.

27

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

Incl 17

4шт.

28

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

Incl 18

2шт.
