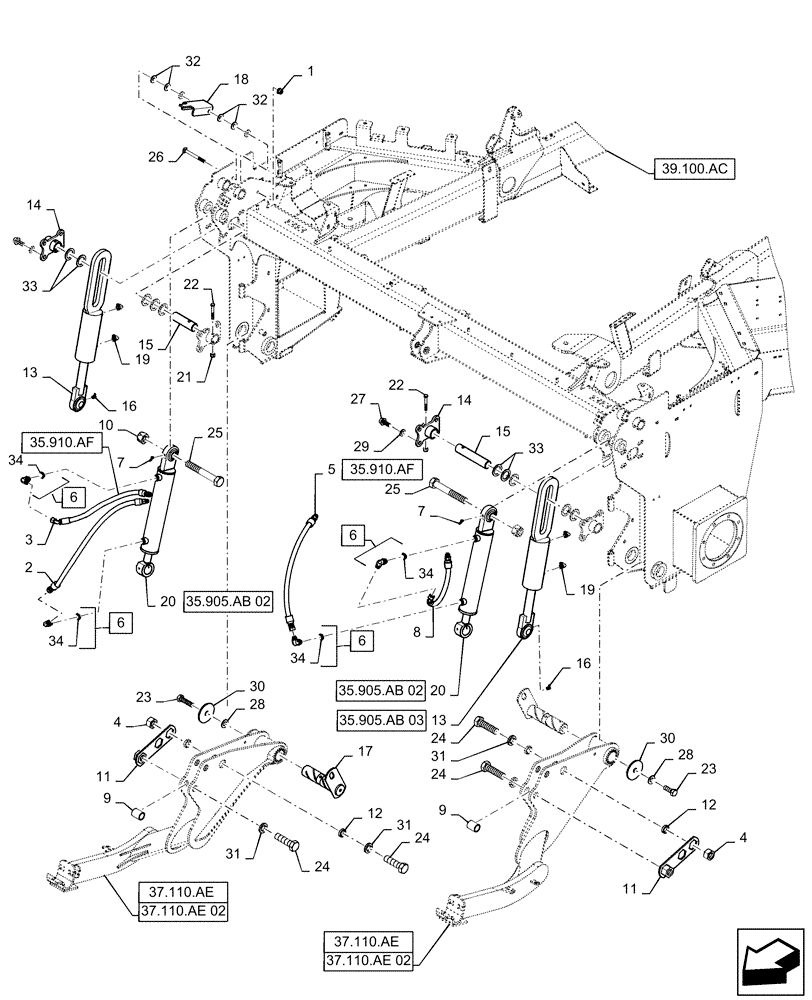

Запчасти Case IH WD1203 (35.905.AB[01]) - HYDRAULIC SYSTEM, HEADER, LIFT ARM (4-CYL, 6-CYL, DRAPER) (35) - HYDRAULIC SYSTEMS

1

86521610

FLANGE NUT,Flg, 1/2"-13

2шт.

2

47395546

HYDRAULIC HOSE

RH Lift, Cylinder End To Header Hydraulics

1шт.

3

47395552

HYDRAULIC HOSE

RH Rod End To Header Hydraulics

1шт.

4

86624025

NUT,1 1/8"-7, G5

2шт.

5

47395544

HYDRAULIC HOSE

LH Rod End To Header Hydraulics

1шт.

6

128830

90 ELBOW,3/4" - 16 JIC x 3/4" - 16 ORB

Incl 34

4шт.

7

87569

LUBE NIPPLE,45 Degree, 1/4" NPT x 4/5" L, Drive

2шт.

8

47395547

HYDRAULIC HOSE

LH Lift, Cylinder End To Header Hydraulics

1шт.

9

86974227

SPACER

2шт.

10

86538215

NUT,1 1/8"-7, GB

2шт.

11

47476798

LINKAGE

2шт.

12

87044433

SPACER

2шт.

13

47477216

HYDRAULIC CYLINDER

Header Lift

2шт.

14

47476052

PLATE

4шт.

15

87044412

HEADLESS PIN

2шт.

16

87415

LUBE NIPPLE,90 Degree, 1/4" NPT x 3/4" L, Drive

2шт.

17

86582064

PIN,50.6mm OD x 233.5mm L

2шт.

18

87044413

CHANNEL

2шт.

19

76344

90 ELBOW,9/16" - 18 JIC x 9/16" - 18 ORB

4шт.

20

84525471

HYDRAULIC CYLINDER

Header Lift

2шт.

21

86629544

NUT,5/16” – 18, GR B

2шт.

22

88346

BOLT,Hex, 5/16" - 18 x 2 1/2", Gr 5

2шт.

23

88557

BOLT,Hex, 3/4" - 10 x 2", Gr 5, Full Thd

2шт.

24

86538216

BOLT,Hex, 1-1/8" x 4", Gr 5

4шт.

25

86619810

BOLT,Hex, 1 1/8" - 7 x 7 1/2", Gr 5

2шт.

26

280856

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 5", Gr 5

2шт.

27

86521619

BOLT,Hex, 5/8" - 11 x 1 1/2", Gr 5

16шт.

28

322359

BELLEVILLE WASHER,M20 Bolt Size x 40mm OD x 3.2mm Thk

2шт.

29

140048

BELLEVILLE WASHER,M16 Bolt Size x 32mm OD x 2.8mm Thk

16шт.

30

86502976

WASHER

2шт.

31

88695

LOCK WASHER,1 1/8"

2шт.

32

80700

WASHER,0.56" ID x 1.38" OD x 0.11" Thk

12шт.

33

191823

WASHER

10шт.

34

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

Incl 6

4шт.
