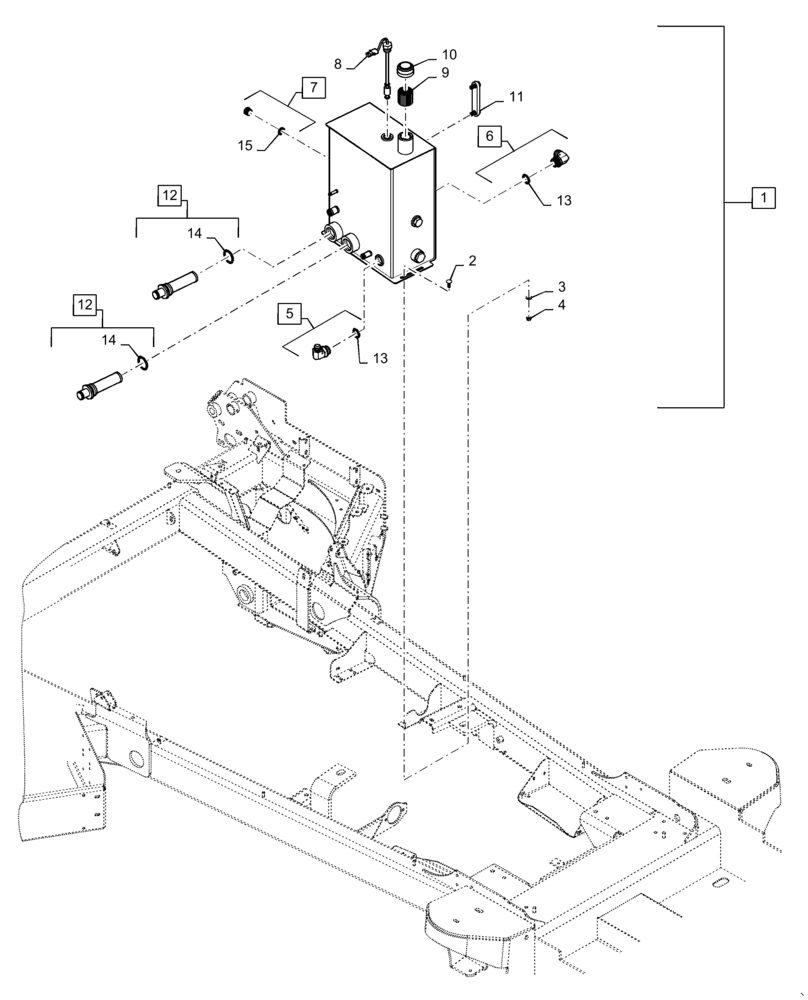

Запчасти Case IH WD1203 (35.300.AQ) - HYDRAULIC FLUID RESERVOIR (35) - HYDRAULIC SYSTEMS

1

84484106

RESERVOIR, HYDRAULIC

Incl 1 - 12

1шт.

2

80280503

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5, Full Thd

4шт.

3

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

4шт.

4

86521606

FLANGE NUT,Hex, 3/8" - 16, Gr 5

4шт.

5

87021824

90 ELBOW,90 Degree, 1 1/16"-12, 37 Degree x 1 5/16"-12, O-Ring

Incl 13

1шт.

6

268277

90 ELBOW,1-5/16" - 12 JIC x 1-5/16" - 12 ORB

Incl 13

1шт.

7

84329266

FILTER STRAINER,1.5"

Incl 15

1шт.

8

47508832

SENSOR

Liquid Level

1шт.

9

87000622

HYDRAULIC OIL FILTER

Baffle

1шт.

10

87000625

COVER

w/Breather Filter

1шт.

11

86988366

SIGHTGLASS

No Servicable Parts

1шт.

12

84254183

FILTER STRAINER

Incl 14

2шт.

13

167268

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

Incl 5, 6

2шт.

14

86583917

O-RING,2.9mm Thk x 44.6mm ID, Cl 6, 90 Duro

Incl 12

2шт.

15

84375831

OIL SEAL,3mm Thk x 59mm ID, 70 Duro

Incl 7

1шт.
