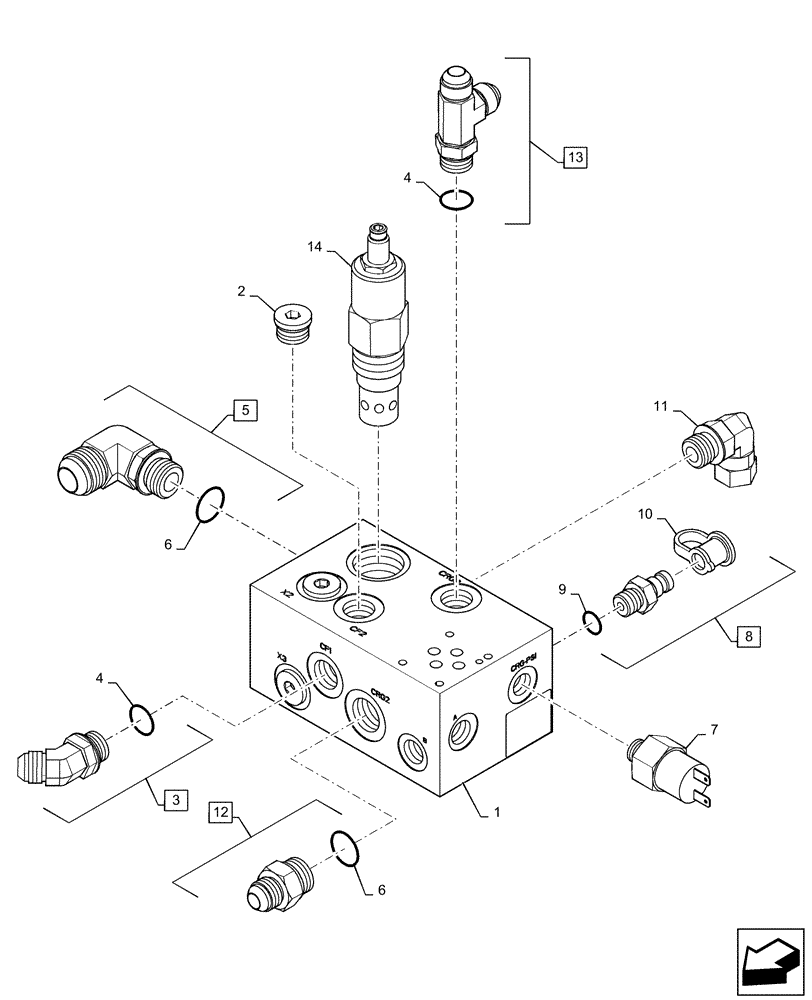

Запчасти Case IH WD1203 (35.128.AE[03]) - HYDRAULIC MANIFOLD, NON DRAPER CHARGE, 4 CYL (35) - HYDRAULIC SYSTEMS

1

47404488

HYDRAULIC MANIFOLD

Charge Relief

1шт.

2

87035062

PLUG,Hex, 1/2"-20 ORB

1шт.

3

216797

45 ELBOW,45 Degree, 3/4"-16, 37 Degree x 3/4"-16, O-Ring

Incl 4

1шт.

4

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

2шт.

5

144123

90 ELBOW,90 Degree, 1 1/16"-12, 37 Degree x 7/8"-14, O-Ring

Incl 6

1шт.

6

167269

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

2шт.

7

84155716

PRESSURE SWITCH

Actuated

1шт.

8

87026252

ASSEMBLY

Male Quick Coupling, Incl 9 - 10

1шт.

9

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

10

86502604

DUST CAP

1шт.

11

84603097

ELBOW

1шт.

12

128819

HYD CONNECTOR,7/8" - 14 ORB x 3/4" - 16 JIC

Incl 6

1шт.

13

265808

TEE,3/4" - 16 JIC x 3/4" - 16 JIC x 3/4" - 16 ORB

Incl 4

1шт.

14

NSS

NOT SOLD SEPARAT

Relief Valve

1шт.
