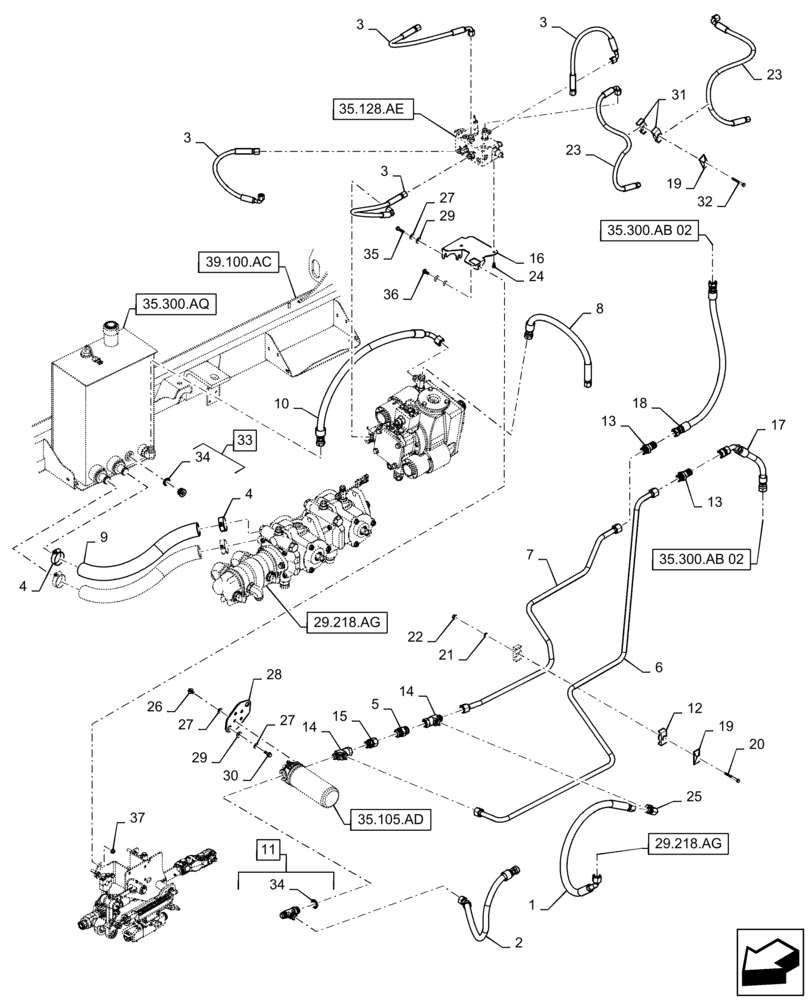

Запчасти Case IH WD1203 (35.105.AC[02]) - HYDRAULIC SYSTEM, OIL COOLER, RETURN LINES & FILTER, 4 CYL DRAPER (35) - HYDRAULIC SYSTEMS

1

47570959

HOSE

Charge Pump to Tee (Supply)

1шт.

2

84597539

HYDRAULIC HOSE

Charge Manifold Supply

1шт.

3

47571022

HYDRAULIC HOSE

Charge Manifold

4шт.

4

86050202

HOSE CLAMP,1.59” - 2.5”, Worm Gear

4шт.

5

47481633

CHECK VALVE

125 PSI

1шт.

6

47435167

HYD TUBE

Oil Cooler Return

1шт.

7

47435164

HYD TUBE

Oil Cool Supply

1шт.

8

47434599

HYDRAULIC HOSE

Ground Drive Case Drain

1шт.

9

47567179

HOSE

Lift Pump Suction

2шт.

10

47434629

HYDRAULIC HOSE

Header Pump Case Drain

1шт.

11

219604

TEE,1-1/16" - 12 ORB x 1-1/16" - 12 JIC x 1-1/16" - 12 JIC

Incl 34

1шт.

12

87000140

CLAMP,Tube, 19.05mm

Two Hole, Ribbed, 19.05MM

1шт.

13

86508629

FITTING,Blkhd, 1 1/16"-12, 37 Degree x 1 1/16"-12, 37 Degree

2шт.

14

87698812

HYD CONNECTOR

2шт.

15

84221265

HYD CONNECTOR

1шт.

16

84602640

BRACKET

Manifold Mounting

1шт.

17

87563607

HOSE

Oil Cooler Out

1шт.

18

87521035

HOSE,0.63" ID x 34.50", SAE J516

Oil Cooler In

1шт.

19

87000230

PLATE

Clamp Cap

2шт.

20

88731

BOLT,Hex, 5/16"- 18 x 3", Gr 5

1шт.

21

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

1шт.

22

86521605

FLANGE NUT,5/16"-18, Cl 5

2шт.

23

47566289

HYDRAULIC HOSE

Prop Cylinder and Auto Guidance

2шт.

24

120103

BOLT,M8 x 1.25 x 16mm, Cl 8.8

2шт.

25

219603

90 ELBOW,1-1/16" - 12 JIC x 1-1/16" - 12, 37 Degree Fem Sw

1шт.

26

86050286

FLANGE BOLT,M10 x 20mm, Cl 8.8

4шт.

27

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

9шт.

28

47566635

PLATE

Filter Assy Mounting

1шт.

29

80702

WASHER,0.44" ID x 1" OD x 0.08" Thk

5шт.

30

86521613

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

31

6560407

CLAMP,2 Hole, 18mm ID

Two Hole, Smooth, 18MM

1шт.

32

88346

BOLT,Hex, 5/16" - 18 x 2 1/2", Gr 5

1шт.

33

9841223

PLUG,1-1/16" - 12 ORB

Incl 34

1шт.

34

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

Incl 11

2шт.

35

88044

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

2шт.

36

88682

CARRIAGE BOLT,Short Nk, 3/8"-16 x 1", Gr 5

1шт.

37

86521606

FLANGE NUT,Hex, 3/8" - 16, Gr 5

1шт.
