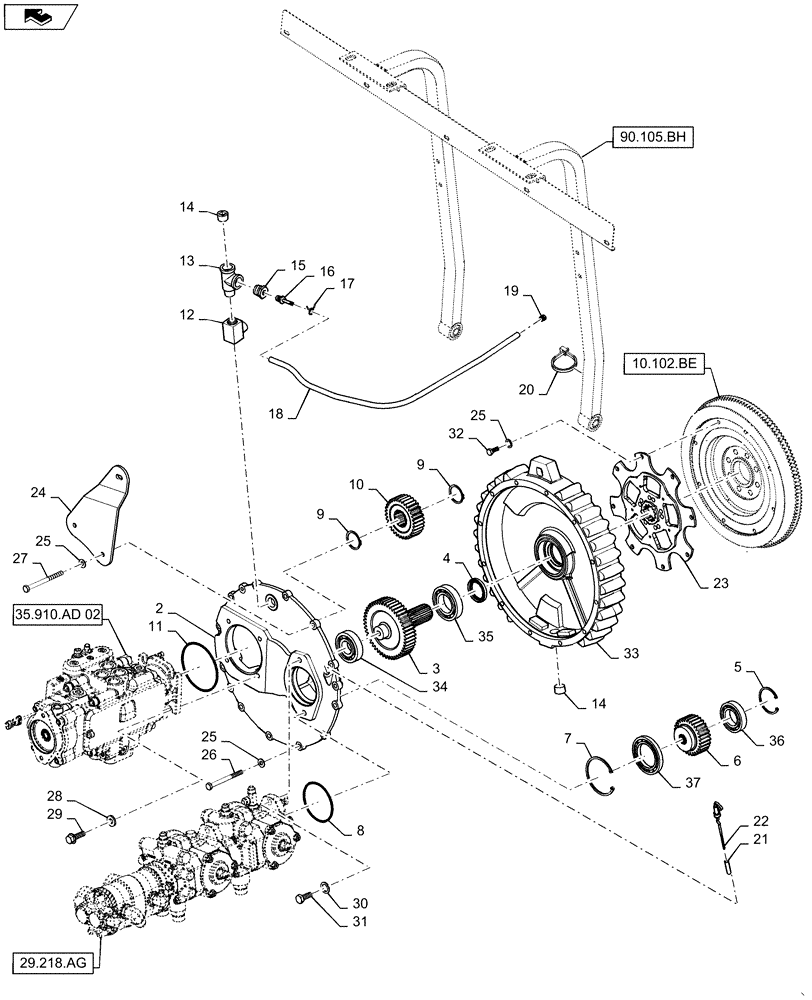

Запчасти Case IH WD1203 (31.220.AG[03]) - GEARBOX, HYDRAULIC SYSTEM, 4 CYLINDER DRAPER (31) - IMPLEMENT POWER TAKE OFF

1

84522083

HOUSING

Gearbox, Draper Version, 4 Cylinder

1шт.

2

84539667

COVER

1шт.

3

84553354

GEAR

39 Tooth, Shaft

1шт.

4

86623595

RUBBER SEAL,45mm ID x 62mm OD x 8mm Thk

1шт.

5

9823834

SNAP RING

1шт.

6

84553407

GEAR

26 Tooth

1шт.

7

370026

SNAP RING,M100 x 3mm Thk, Internal

1шт.

8

9706914

O-RING,0.07" Thk x 3.989" ID, -45, Cl 5, 75 Duro

1шт.

9

40974

SNAP RING,#125, Ext

2шт.

10

84553440

GEAR

30 Tooth

1шт.

11

510828

O-RING,0.139" Thk x 4.984" ID, -250, Cl 5, 75 Duro

1шт.

12

88472

ELBOW,90º, 3/4"-14 Female x 3/4"-14 Male

1шт.

13

509968

3 WAY CONNECTION

Street Pipe Iron 3/4-14 NPTF

1шт.

14

509939

PLUG

3/4 NPTF Socket

2шт.

15

686790

REDUCER

Bushing, 3/4 NPTF Male X 1/4 NPTF Female Brass

1шт.

16

87016893

FITTING,1/4" Hose X 1/4" NPTF Beaded

1шт.

17

86637701

HOSE CLAMP,12.45mm - 12.95mm

1шт.

18

87280926

FUEL HOSE

Breather

1шт.

19

854071

BREATHER

1шт.

20

529070

CABLE TIE,368.3mm L

1шт.

21

86522662

TUBE,9.52 mm OD x 68.00 mm L

For Dipstick

1шт.

22

9635238

INDICATOR

Dipstick, PTO

1шт.

23

87652184

DAMPER

1шт.

24

47472875

SUPPORT

1шт.

25

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

20шт.

26

86508573

BOLT,Hex, M10 x 110mm, Cl 8.8

10шт.

27

86508574

BOLT,Hex, M10 x 120mm, Cl 8.8

2шт.

28

394630

WASHER,13mm ID x 28mm OD x 4mm Thk

4шт.

29

86521615

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

4шт.

30

58102

WASHER

2шт.

31

87689

BOLT,1/2"-13 x 1.813" OAL, Gr 5

2шт.

32

43139

BOLT,M10 x 1.5 x 25mm, Cl 8.8

8шт.

33

9840491

MAGNET

2шт.

34

84156145

BALL BEARING,50mm ID x 90mm OD x 20mm W

1шт.

35

84553365

BALL BEARING

1шт.

36

84156144

BALL BEARING,40mm ID x 68mm OD x 15mm W

1шт.

37

84519494

BALL BEARING

1шт.
