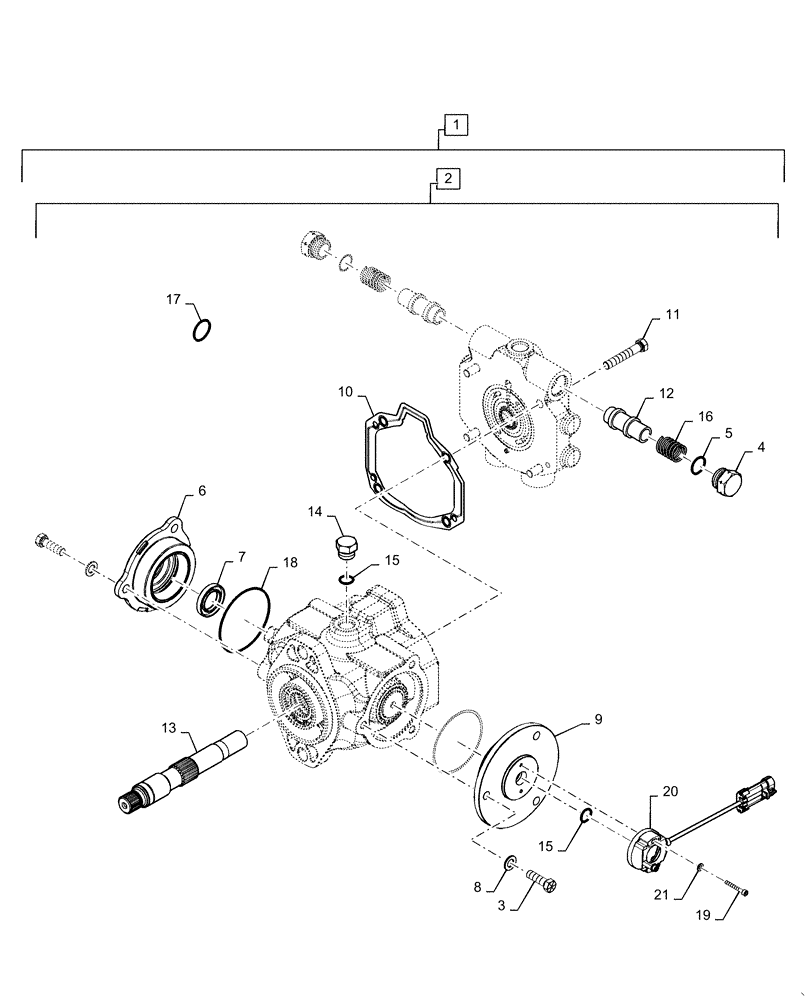

Запчасти Case IH WD1203 (29.218.AG[03]) - PUMP, HYDROSTATIC, AUXILIARY MOUNT (29) - HYDROSTATIC DRIVE

1

84598637

HYDRAULIC PUMP

Tandem, 15T, Incl 2

1шт.

2

47713083

PUMP

Hydrostatic, Auxiliary Mount, Incl 3 - 21

1шт.

2

47713083R

REMAN-HYD PUMP

Reman Hydrostatic, Auxiliary Mount, Incl 3 - 21

1шт.

2

47713083C

CORE-HYDRAULIC PUMP

Core Return Number

1шт.

3

280165

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 8, Full Thd

6шт.

4

47709861

PLUG

2шт.

5

87485030

O-RING

2шт.

6

47709867

COVER

Plate

1шт.

7

86589834

OIL SEAL

Trunnion Shaft

1шт.

8

86632588

WASHER,0.41" ID x 0.81" OD x 0.07" Thk

6шт.

9

47710537

COVER

Plate

1шт.

10

272213

GASKET,0.79mm Thk

Housing

1шт.

11

86575418

BOLT,Hex, 3/8" - 16 x 2 1/4", Gr 8

4шт.

12

47709917

VALVE

Relief

2шт.

13

277060

CONTROL SHAFT

Drive, Rear

1шт.

14

86590562

PLUG,Hex Soc, 3/4" - 16 ORB

Incl 15

2шт.

15

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

Incl 14

4шт.

16

47709969

SPRING

2шт.

17

86589837

SEAL KIT

Repair

1шт.

18

14461080

O-RING,0.103" Thk x 3.237" ID, -152, Cl 5, 75 Duro

2шт.

19

87016468

HEX SOC SCREW,M4 x 25mm, Cl 8.8

Mounting

2шт.

20

47709971

SENSOR

Feedback

1шт.

21

9824840

WASHER,4.3mm ID x 9mm OD x 0.8mm Thk

2шт.
