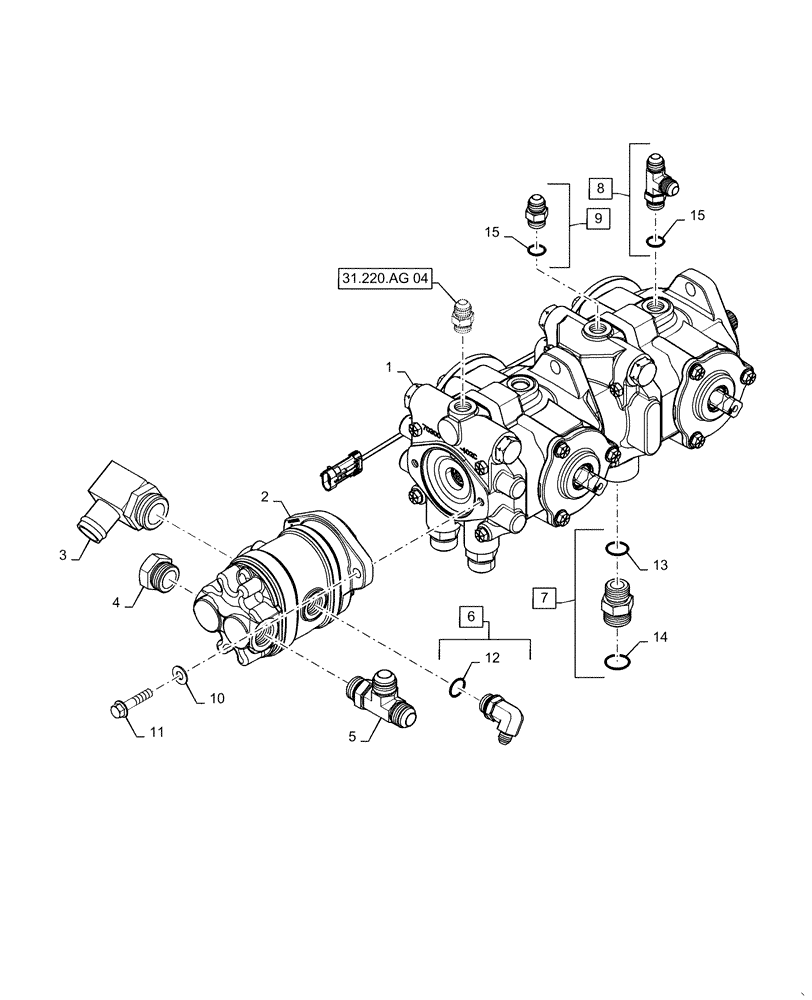

Запчасти Case IH WD1203 (29.218.AG[01]) - HYDROSTATIC PUMP, DRIVE, 4 CYLINDER NON-DRAPER (29) - HYDROSTATIC DRIVE

1

84598637

HYDRAULIC PUMP

Tandem, 49.2/49.2 15 Tooth

1шт.

2

84587629

HYDRAULIC PUMP

Gear, Double Charge Lift

1шт.

2

47726064

SEAL KIT

Charge/Lift Pump

1шт.

2

512071

SEAL,19mm ID x 34.98mm OD x 6.73mm Thk

1шт.

2

47909452

BOLT

8шт.

3

86705581

STEM

1шт.

4

273916

PLUG,Hex, 1-5/16" - 12 ORB

1шт.

5

219604

TEE,1-1/16" - 12 ORB x 1-1/16" - 12 JIC x 1-1/16" - 12 JIC

1шт.

6

9617891

ELBOW,90 Degree, 3/4" - 16 JIC x 7/8" - 14 ORB

Incl 12

1шт.

7

9840535

HYD CONNECTOR,1-3/16" - 12 ORFS x 1-1/16" - 12 ORB

Incl 13, 14

4шт.

8

265808

TEE,3/4" - 16 JIC x 3/4" - 16 JIC x 3/4" - 16 ORB

Incl 15

1шт.

9

81827427

HYD CONNECTOR,3/4" - 16 JIC x 3/4" - 16 ORB

37FL X ORB -8, Incl 15

2шт.

10

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

2шт.

11

86562215

FLANGE BOLT,3/8"-16 x 1.75", Cl 5

2шт.

12

167269

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

Incl 6

1шт.

13

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

Incl 7

1шт.

14

9991976

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

Incl 7

1шт.

15

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

Incl 8, 9

1шт.
