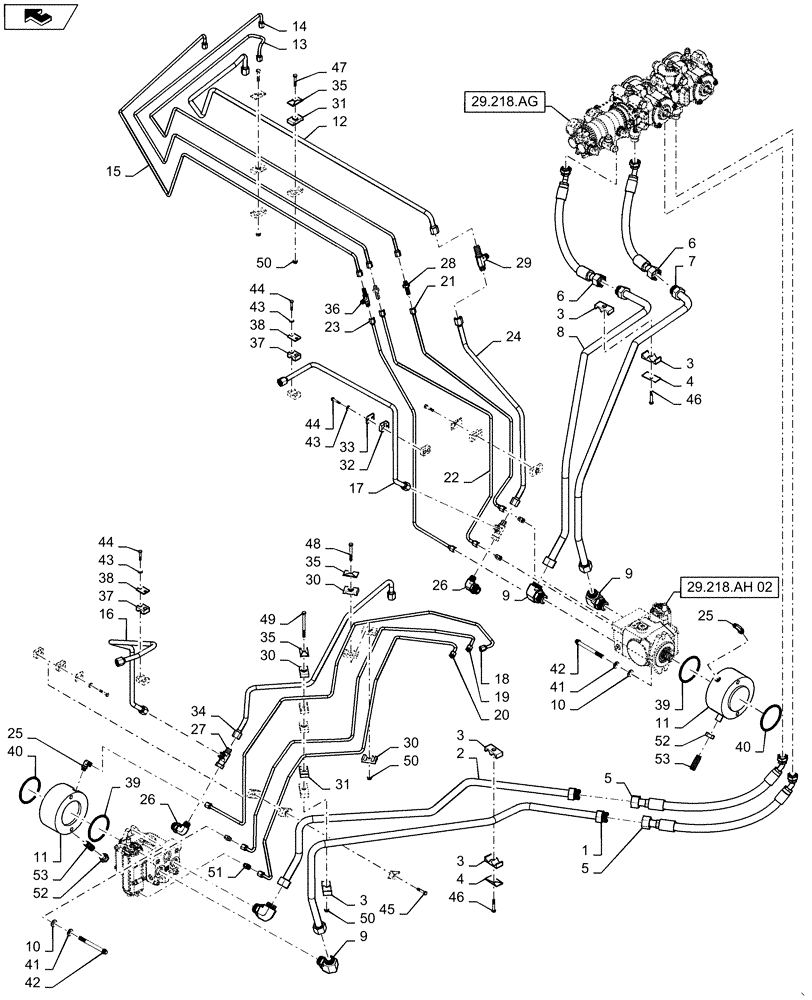

Запчасти Case IH WD1203 (29.204.AB[04]) - DRIVE, HYDRAULIC SYSTEM, HIGH SPEED (29) - HYDROSTATIC DRIVE

1

47381289

TUBE

RH 3-Speed Motor B Port

1шт.

2

47381290

TUBE

RH 3-Speed Motor A Port

1шт.

3

86900725

CLAMP

3шт.

4

87000230

PLATE

2шт.

5

47387393

HYDRAULIC HOSE

RH Ground Drive, Incl 55 , Left End, 56 Right End

2шт.

6

47387394

HYDRAULIC HOSE

LH Ground Drive, Incl 55 Left End, 56 Right End

2шт.

7

47360925

TUBE

LH 3-Speed Motor Port A

1шт.

8

47357571

TUBE

LH Motor B Port

1шт.

9

9846955

90 ELBOW,1-7/16"-12 ORFS x 1-5/16"-12 ORB

Incl 55, 57

4шт.

10

86513238

LOCK WASHER,.515” ID x 1.070” OD x .120” TK

4шт.

11

87631994

BRAKE ASSY.

2шт.

12

47360901

HYD TUBE

LH Motor Case Drain

1шт.

13

47360903

HYD TUBE

LH Brake

1шт.

14

47360907

HYD TUBE

LH Motor 2 Range

1шт.

15

47360909

HYD TUBE

LH 3-Speed Motor 3 Range

1шт.

16

47381296

HYD TUBE

RH Header Case Drain 3-Speed

1шт.

17

47381298

HYD TUBE

LH Header Case Drain 3-Speed

1шт.

18

47381300

HYD TUBE

RH Brake

1шт.

19

47381303

HYD TUBE

RH 2 Range 3-Speed

1шт.

20

47381305

HYD TUBE

RH 3 Range 3-Speed

1шт.

21

47405226

HYD TUBE

LH Brake

1шт.

22

47405229

HYD TUBE

LH 3-speed Motor 2 Range

1шт.

23

47405227

HYD TUBE

LH 3-Speed Motor 3 Range

1шт.

24

47405230

HYD TUBE

LH 3-Speed Motor Case Drain

1шт.

25

76344

90 ELBOW,9/16" - 18 JIC x 9/16" - 18 ORB

Incl 58

2шт.

26

84570

90 ELBOW,7/8" - 14 JIC x 1-1/16" - 12 ORB

Incl 59

2шт.

27

86513011

TEE,37 Degree, 7/8"-14 x 7/8"-14, Fem Sw Run

2шт.

28

86513087

FITTING,Blkhd, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree

2шт.

29

86625276

TEE

1шт.

30

87000148

CLAMP

5шт.

31

87000159

CLAMP

2шт.

32

87603907

CLAMP

2шт.

33

87022336

PLATE

2шт.

34

47381294

HYD TUBE

RH Wheel Case Drain 3-Speed

1шт.

35

384870A1

PLATE

6шт.

36

47456949

BULKHEAD

1шт.

37

87040663

CLAMP

2шт.

38

86900726

COVER

2шт.

39

9706914

O-RING,0.07" Thk x 3.989" ID, -45, Cl 5, 75 Duro

2шт.

40

9840590

O-RING,0.139" Thk x 3.734" ID, -240, Cl 5, 75 Duro

2шт.

41

65319

WASHER,13.1mm ID x 25.4mm OD x 3.68mm Thk

4шт.

42

87041225

BOLT

4шт.

43

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

8шт.

44

280112

BOLT,Hex, 1/4" - 20 x 1-1/2", Gr 5

8шт.

45

88275

BOLT,Hex, 5/16" - 18 x 1 1/2", Gr 5

2шт.

46

9636711

BOLT,Hex, 5/16 - 18" x 2", Gr 5

2шт.

47

9707515

BOLT,Hex, 5/16 - 18" x 1 3/4", Gr 5

2шт.

48

87626

BOLT,Hex, 5/16" - 18 x 2 3/4", Gr 5

1шт.

49

86521605

FLANGE NUT,5/16"-18, Cl 5

1шт.

50

86521605

FLANGE NUT,5/16"-18, Cl 5

4шт.

51

84384

HYD CONNECTOR,9/16"-18, 37 Degree x 7/16"-20, O-Ring

Incl 60

4шт.

52

87313

JAM NUT,Jam, 3/4"-16, G2

2шт.

53

9825943

SENSOR

Speed

2шт.

54

47561737

BRACKET

DK GRY, Ground Drive Tube

2шт.

55

9824050

O-RING,0.07" Thk x 0.926" ID, -21, Cl 6, 90 Duro

Incl 5, 6, 9

8шт.

56

9991976

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

Incl 5, 6

4шт.

57

167268

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

Incl 9

4шт.

58

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

Incl 25

2шт.

59

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

Incl 26

2шт.

60

165202

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

Incl 51

4шт.
