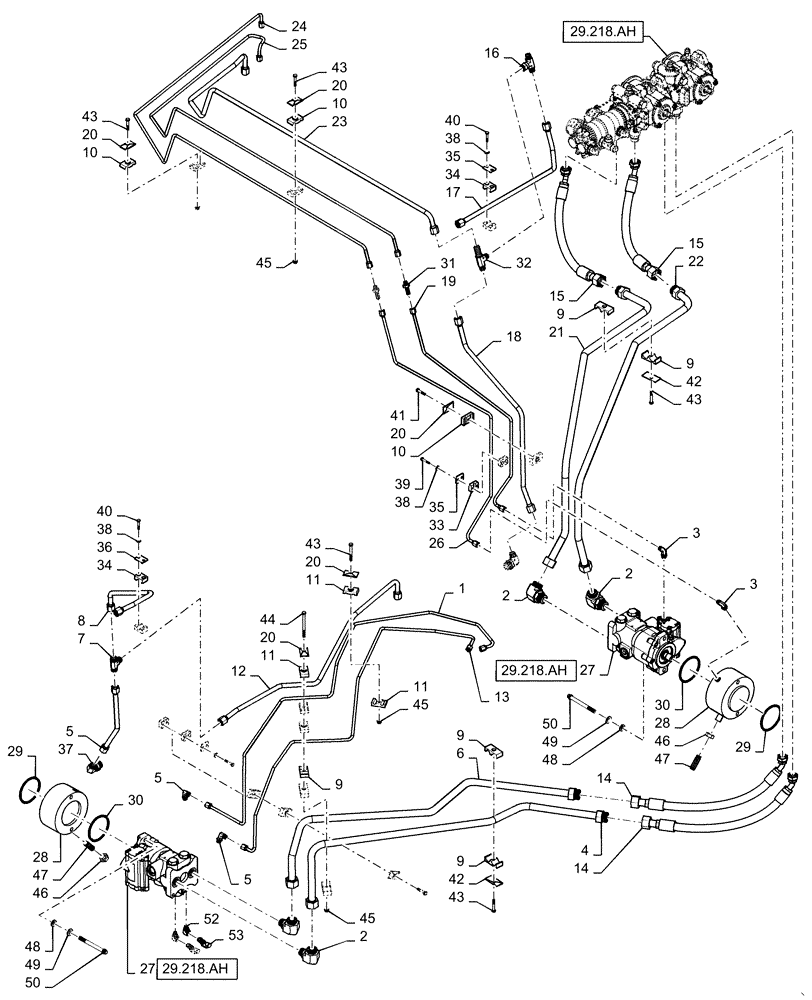

Запчасти Case IH WD1203 (29.204.AB[02]) - DRIVE, HYDRAULIC SYSTEM, STANDARD (29) - HYDROSTATIC DRIVE

1

47381300

HYD TUBE

Right Brake

1шт.

2

9846956

90 ELBOW,90 Degree, 1-7/16"-12 x 1-1/16"-12, Adj, ORFS

Incl 54, 55

4шт.

3

76344

90 ELBOW,9/16" - 18 JIC x 9/16" - 18 ORB

Incl 56

4шт.

4

47425951

TUBE

RH 2-Speed Motor B Port, Incl 54

1шт.

5

47427706

HYD TUBE

RH 2-speed Motor Case Drain 2

1шт.

6

47425946

TUBE

RH 2-speed Motor A Port, Incl 54

1шт.

7

16985

TEE,7/8"-14, 37 Degree

1шт.

8

47427664

HYD TUBE

RH Header Case Drain 2-Speed

1шт.

9

86900725

CLAMP

Twing 1.00

3шт.

10

87000159

CLAMP

3шт.

11

87000148

CLAMP

For Hyd Tubing

4шт.

12

47426230

HYD TUBE

RH 2-Speed Motor Case Drain

1шт.

13

47426238

HYD TUBE

RH 2-Speed Motor 2 Range

1шт.

14

47387393

HYDRAULIC HOSE

RH Ground Drive, Incl 54 Left End, 57 Right End

2шт.

15

47387394

HYDRAULIC HOSE

LH Ground Drive, Incl 54 Left End, 57 Right End

2шт.

16

86513016

TEE,37 Degree, 7/8"-14 x 7/8"-14, Fem Sw Br

1шт.

17

47427666

HYD TUBE

LH Header Case Drain 2-Speed

1шт.

18

47426240

HYD TUBE

LH 2-Speed Motor Case Drain

1шт.

19

47426243

HYD TUBE

LH 2-Speed Motor 2 Range

1шт.

20

384870A1

PLATE

6шт.

21

47425960

TUBE

LH 2-Speed Motor B Port, Incl 54

1шт.

22

47425956

TUBE

LH 2-Speed Motor A Port, Incl 54

1шт.

23

47360901

HYD TUBE

LH Motor Case Drain

1шт.

24

47360907

HYD TUBE

LH Motor 2 Range

1шт.

25

47360903

HYD TUBE

LH Brake

1шт.

26

47405226

HYD TUBE

LH Brake

1шт.

27

47570419

HYDRAULIC MOTOR

4шт.

28

87631994

BRAKE ASSY.

2шт.

29

9840590

O-RING,0.139" Thk x 3.734" ID, -240, Cl 5, 75 Duro

2шт.

30

9706914

O-RING,0.07" Thk x 3.989" ID, -45, Cl 5, 75 Duro

2шт.

31

86513087

FITTING,Blkhd, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree

2шт.

32

86625276

TEE

1шт.

33

87603907

CLAMP

Plastic .38

2шт.

34

87040663

CLAMP

Plastic

2шт.

35

87022336

PLATE

2шт.

36

86900726

COVER

2шт.

37

84570

90 ELBOW,7/8" - 14 JIC x 1-1/16" - 12 ORB

Incl 55

2шт.

38

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

8шт.

39

280112

BOLT,Hex, 1/4" - 20 x 1-1/2", Gr 5

4шт.

40

280164

BOLT,Hex, 1/4" - 20 x 1 3/4", Gr 5

4шт.

41

88275

BOLT,Hex, 5/16" - 18 x 1 1/2", Gr 5

2шт.

42

87000230

PLATE

2шт.

43

9636711

BOLT,Hex, 5/16 - 18" x 2", Gr 5

5шт.

44

86523038

BOLT,Hex, 5/16" - 18 x 4 1/4", Gr 5

1шт.

45

86521605

FLANGE NUT,5/16"-18, Cl 5

4шт.

46

87313

JAM NUT,Jam, 3/4"-16, G2

2шт.

47

9825943

SENSOR

2шт.

48

65319

WASHER,13.1mm ID x 25.4mm OD x 3.68mm Thk

4шт.

49

86513238

LOCK WASHER,.515” ID x 1.070” OD x .120” TK

4шт.

50

87041225

BOLT

12PT .5X5

4шт.

51

47561737

BRACKET

DK GRY, Ground Drive Tube

2шт.

52

47576544

UNION

4шт.

53

86502603

COUPLING

4шт.

54

9824050

O-RING,0.07" Thk x 0.926" ID, -21, Cl 6, 90 Duro

Incl 2, 4, 14, 15, 21, 22

8шт.

55

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

Incl 2, 37

6шт.

56

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

Incl 3

4шт.

57

9991976

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

Incl 14, 15

4шт.
