Запчасти Case IH WD1203 (10.419.AC) - SCREEN, AIR CLEANER, REAR (10) - ENGINE

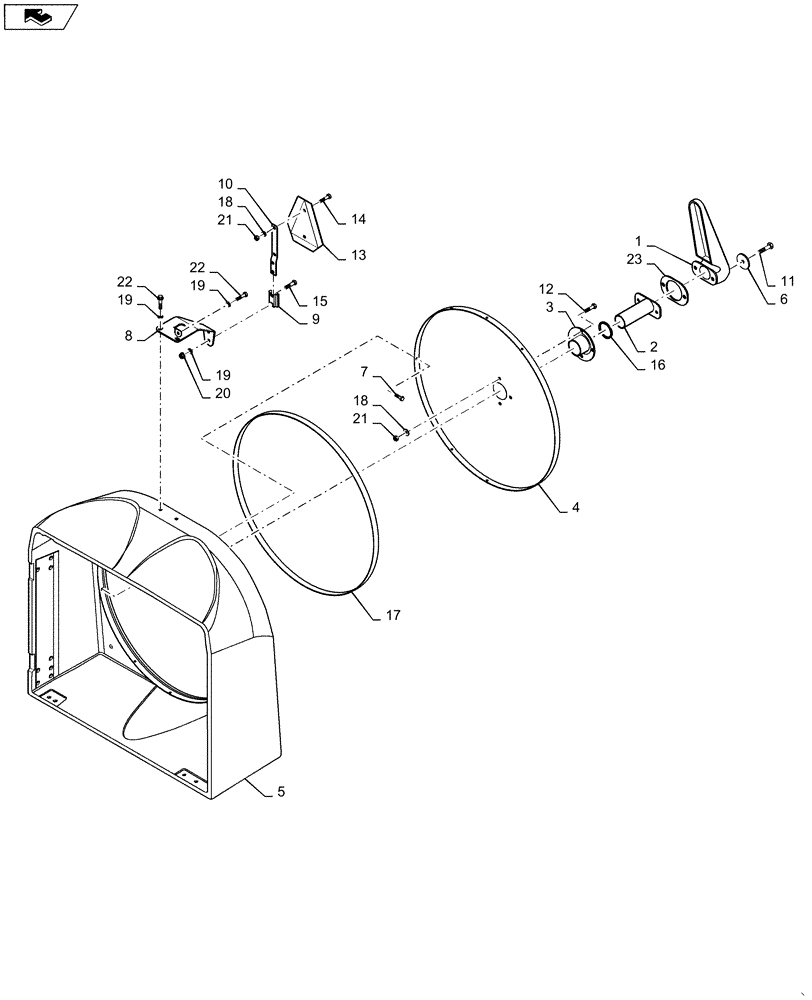

Схема запчастей Case IH WD1203 - (10.419.AC) - SCREEN, AIR CLEANER, REAR (10) - ENGINE
18
12
13
14
3
6
2
home
19
15
10
21
7
19
17
23
21
22
22
9
4
20
8
18
19
11
16
5
1

Артикул

Название

Примечание

Количество

1

87586035

ARM

Vacuum

1шт.

2

86638972

TUBE,163 mm L

1шт.

3

87398519

HUB

Rear

1шт.

4

87042486

SCREEN

1шт.

5

87521587

HOUSING

Poly

1шт.

6

80701

WASHER,0.31" ID x 0.73" OD x 0.07" Thk

2шт.

7

87019672

SELF-TAP SCREW,Hex Wash Hd, 1/4" x 3/4"

10шт.

8

87608460

BRACKET

1шт.

9

847590

BRACKET

Socket

1шт.

10

195035

SUPPORT

Slow Moving Vehicle Bracket

1шт.

11

86521550

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

2шт.

12

280700

CARRIAGE BOLT,Sht Sq Nk, 1/4" - 20 x 1/2", Gr 5, Full Thd

4шт.

13

86547710

EMBLEM

Slow Moving Vehicle Emblem

1шт.

14

85700996

SCREW,Phillips Drive, Pan HD, 1/4" - 20 x 1/2"

1шт.

15

280497

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 3/4", Gr 5, Full Thd

2шт.

16

87057652

WASHER,61.9mm ID x 77.79mm OD x 1.22mm Thk

1шт.

17

PL

PROCURE LOCALLY

Standard 3mmx19mm Foam Tape

1шт.

18

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

4шт.

19

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

5шт.

20

86521605

FLANGE NUT,5/16"-18, Cl 5

2шт.

21

7770

NUT,Hex, 1/4 - 20, Cl 5

4шт.

22

280146

SELF-TAP SCREW,Hex Hd, 5/16" x 1"

3шт.

23

87661445

PLATE

1шт.

Выбрано товаров: 23
